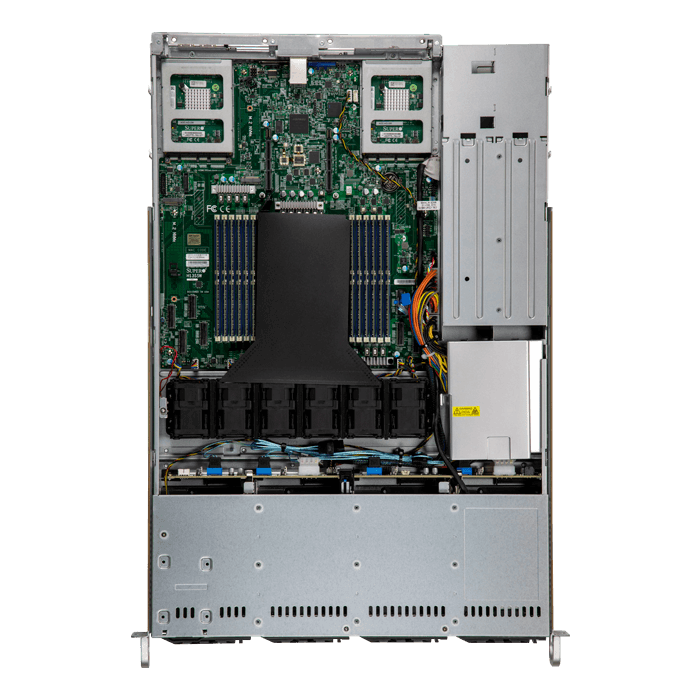

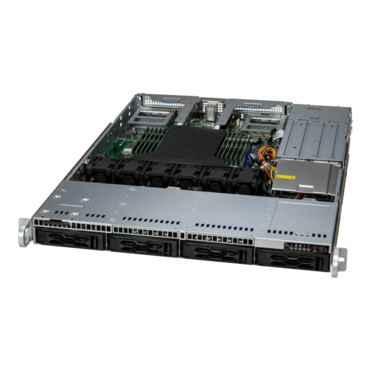

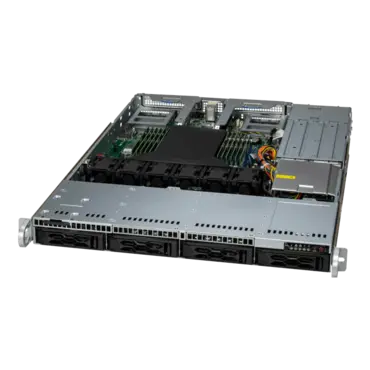

A+ Server AS -1015CS-TNR, 1U, AMD SoC, 4x 3.5"/2.5" NVMe/SATA/SAS Hotswap, 12x DDR5, 860W Rdt PSU

SKU: 15898850
Manufacturer: SUPERMICRO
MPN: AS-1015CS-TNR INT USE
Availability: LOW STOCK

Price

$2,280.34

Product SKUs	A+ Server AS -1015CS-TNR (Black front & sliver body)
Motherboard	Super H13SSW
Processor
CPU	Single Socket SP5 4th Generation AMD EPYC™ 9004 Series Processor Support CPU TDP up to 360W *
Cores	Up to 96C/192T
Note	*Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory	Memory Capacity: 12 DIMM slots Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz Memory Type: 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory
Note	For optimal performance AMD recommends full memory population
Memory Voltage	1.1 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	System on Chip
Network Connectivity	Via Slim-AIOM
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

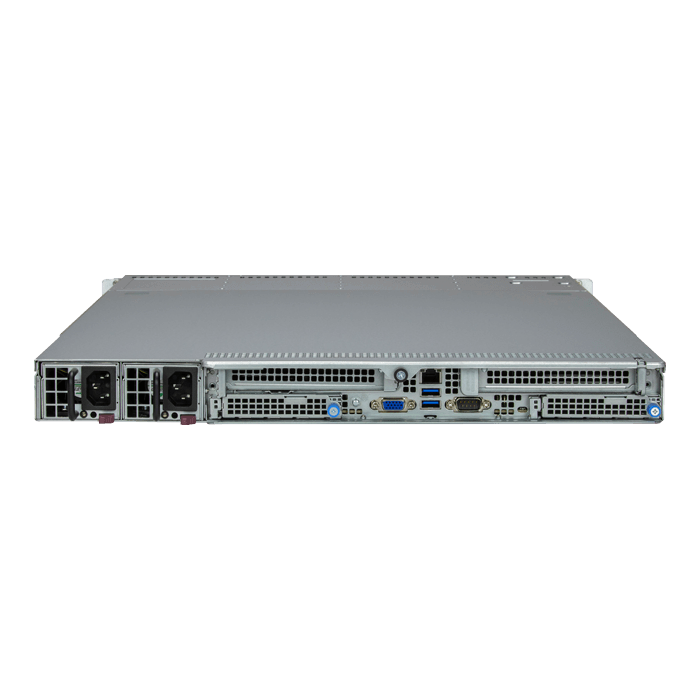

Input / Output
LAN	1 Dedicated IPMI LAN port
USB	2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM
BIOS Features	ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support
Management
Software	IPMIView for Linux/ Windows IPMICFG SSM SPM SUM Watch Dog SuperDoctor® 5
Power Configurations	Power-on mode control for AC power loss recovery ACPI Power Management
PC Health Monitoring
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	1U Rackmount
Model	CSE-LA15TS-R860AWP2
Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	25.6" (650mm)
Package	7.8" (H) x 23.8" (W) x 34.6" (D)
Weight	Net Weight: 25 lbs (11.3 kg) Gross Weight: 46 lbs (20.9 kg)
Available Color	Black front & sliver body

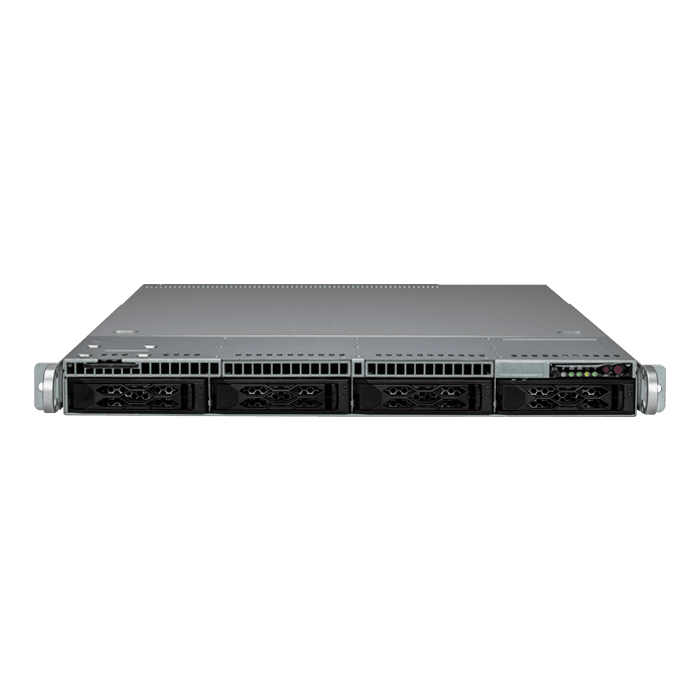

Front Panel
Buttons	Power On/Off Reset button Universal Information (UID)
LEDs	Drive activity Network activity Power status Universal Information (UID)
Expansion Slots
PCI-Express (PCIe)	2 PCIe 5.0 x16 FHHL slot(s) 2 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap	4x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (4 SATA by default)
M.2	2x NVMe (PCIe Gen 3x2, Boot drive only) M-Key, 2280/22110
Peripheral Bays	2x 2.5" drive bays (optional)
System Cooling
Fans	6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud(s)
Power Supply
800W/860W 1U redundant power supply
Dimension (W x H x L)	54.5 x 40.25 x 322 mm
AC Input	800W: 100-127Vac / 9A-7.5A / 50-60Hz 860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V	Max: 66.6A / Min: 0A (100Vac-127Vac) Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Platinum Level
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Note	Operating Temperature based on configurations
