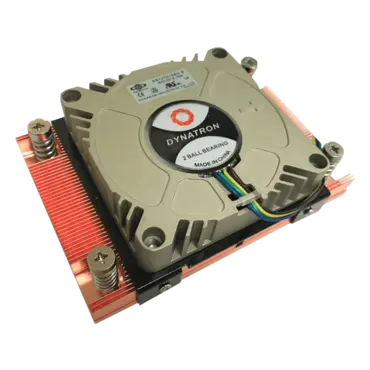

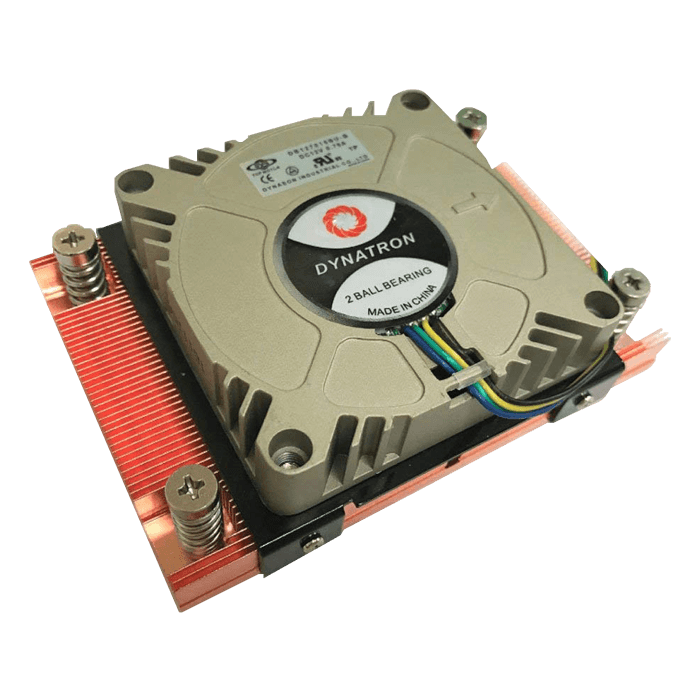

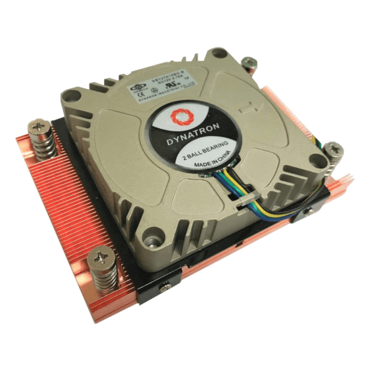

A18, 27.5mm Height, 105W TDP, Copper CPU Cooler

Quantity:

SKU: 12163130
Manufacturer: DYNATRON
MPN: A18
Availability: LOW STOCK

Starting At

$30.37

A18, 27.5mm Height, 105W TDP, Copper CPU Cooler
Recommend for AMD® Ryzen Processor, Socket AM4 and AM5, 70x70x15 mm PWM Blower, Copper 1100 Skived Fins, Active Cooler for 1U Server & up, Support CPU Power up to 105 Watts Heat Dissipation.

CPU Support	AMD® Ryzen
CPU Socket	AM4/AM5
Solution	1U Server
Dimensions	106 x 76 x 27.5 mm
Weight	502g ± 5g
Material	Copper 1100 with Skived Fins
Fan Dimension	70 x 70 x 15 mm
Speed	At Duty Cycle 20%: 1100 RPM ± 200 RPM At Duty Cycle 50%: 2600 RPM ± 10% RPM At Duty Cycle 100%: 6000 RPM ± 10% RPM
Power	At Duty Cycle 20%: 0.6 W At Duty Cycle 50%: 1.2 W At Duty Cycle 100%: 8.8 W
Bearing	2 Ball Bearing
Rated Voltage	12V
Air Flow	At Duty Cycle 20%: 2.5 CFM At Duty Cycle 50%: 5.8 CFM At Duty Cycle 100%: 14.3 CFM
Noise Level	At Duty Cycle 20%: 19.1 dBA At Duty Cycle 50%: 34.2 dBA At Duty Cycle 100%: 53.8 dBA
Air Pressure	At Duty Cycle 20%: 1.25 mm-H2O At Duty Cycle 50%: 7.0 mm-H2O At Duty Cycle 100%: 50.46 mm-H2O
Lead Wire Pin Out	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)
Thermal Grease	Shin-Etsu 7762 Pre-printed

*All product specifications and product images are subject to change without notice.
