A38, 65mm Height, 280W TDP, Copper/Aluminum CPU Cooler

A38, 65mm Height, 280W TDP, Copper/Aluminum CPU Cooler

Quantity:

SKU: 14733144
Manufacturer: DYNATRON
MPN: A38
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Starting At

$28.94

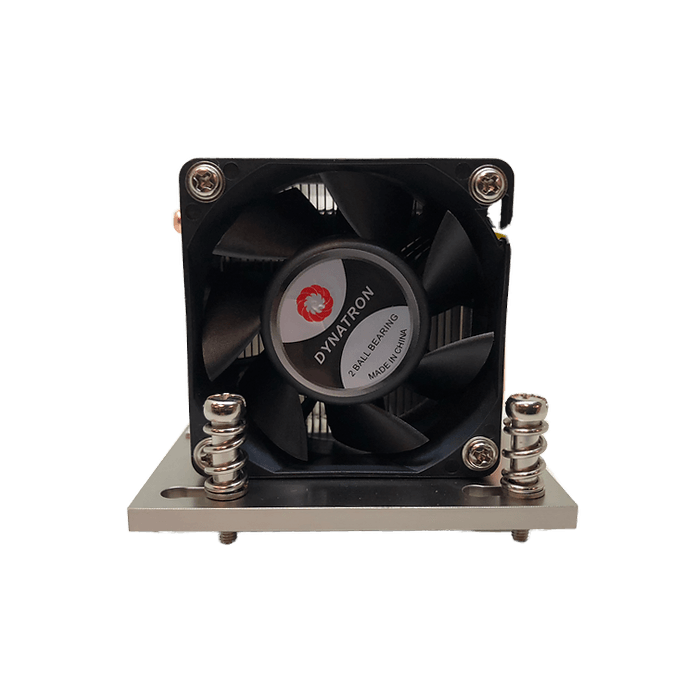

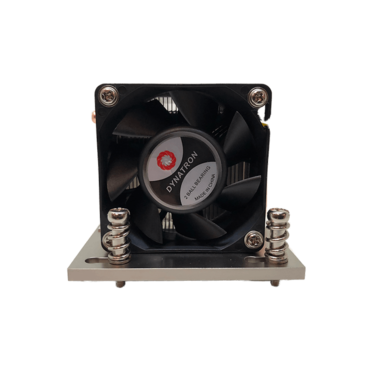

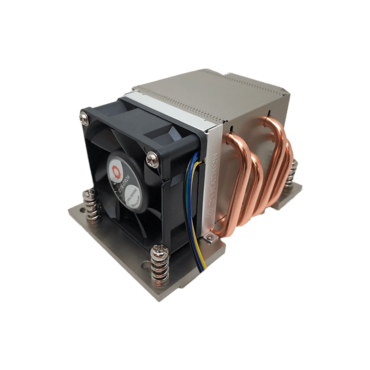

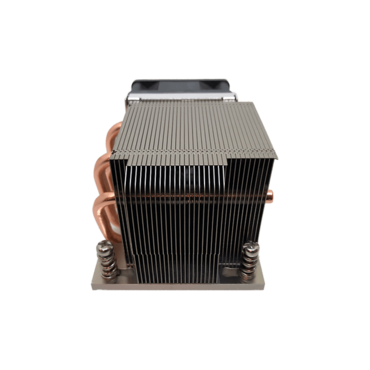

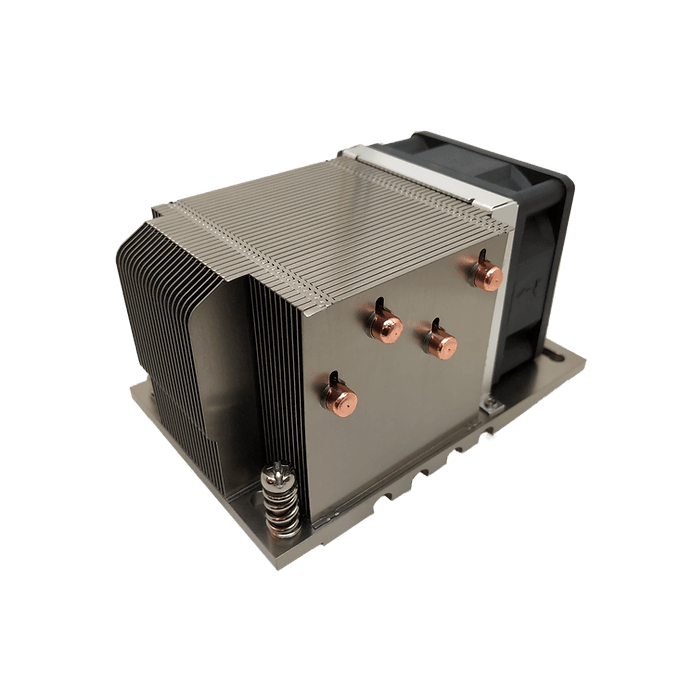

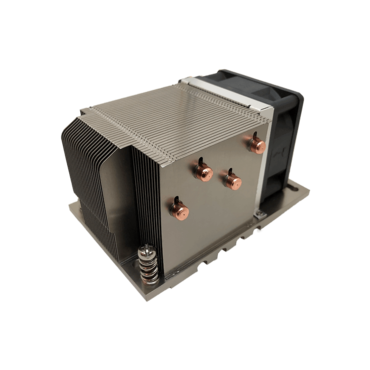

A38, 65mm Height, 280W TDP, Copper/Aluminum CPU Cooler
The Dynatron A38 CPU cooler is designed for A38 ( 4 heatpipe with higher fan speed)

CPU Support	AMD
CPU Socket	sWRX8/sTRX4/TR4/SP3
Solution	2U Server and Up
Dimensions	119.0 x 79.0 x 65.0 mm
Weight	450g
Material	Aluminum Heatsink with Heatpipe Embedded
Fan Dimension	60 x 60 x 25 mm
Speed	At Duty Cycle 0~20%: 2300 ± 10% RPM At Duty Cycle 50%: 5400 ± 10% RPM At Duty Cycle 100%: 11000 ±10% RPM
Power	At Duty Cycle 0~20%: 0.84 W At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W
Bearing	Ball Type, Double
Rated Voltage	12V
Air Flow	At Duty Cycle 0~20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM
Noise Level	At Duty Cycle 0~20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA
Air Pressure	At Duty Cycle 0~20%: 1.48 mm-H2O At Duty Cycle 50%: 7.54 mm-H2O At Duty Cycle 100%: 28.8 mm-H2O
Lead Wire Pin Out	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)

*All product specifications and product images are subject to change without notice.
