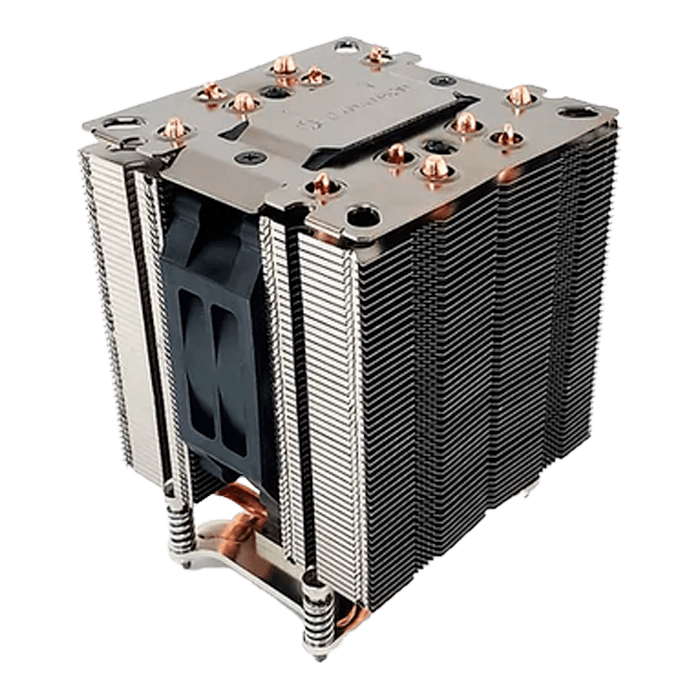

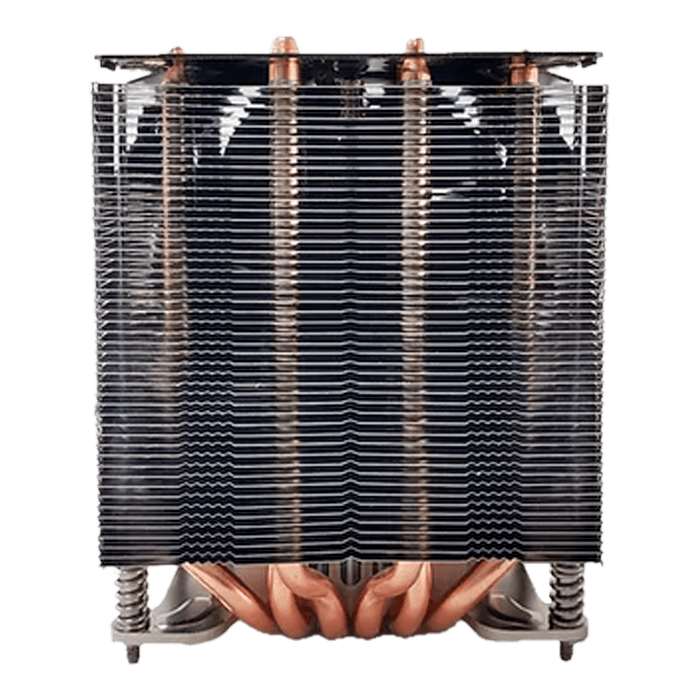

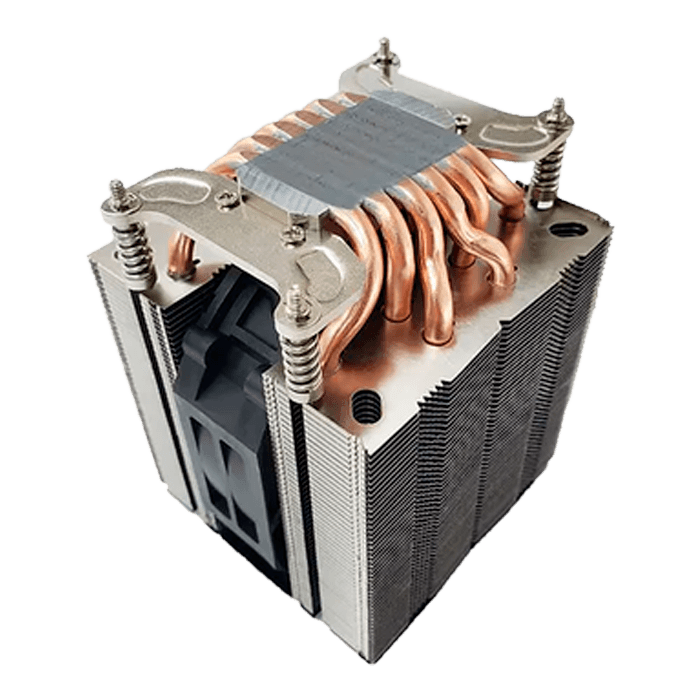

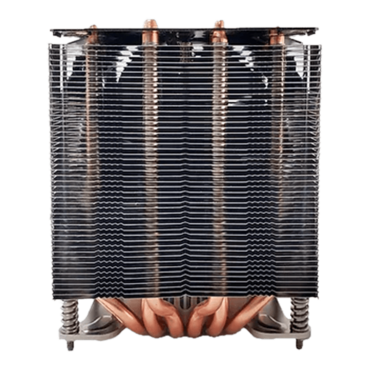

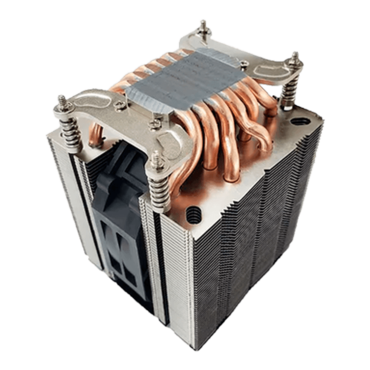

A49, 130mm Height, 170W TDP, Copper/Aluminum CPU Cooler
- SKU: 16152311
- Manufacturer: DYNATRON
- MPN: A49
- Availability: LOW STOCK
Price
$41.20
A49, 130mm Height, 170W TDP, Copper/Aluminum CPU Cooler
The Dynatron A49 CPU cooler is designed for A49
The Dynatron A49 CPU cooler is designed for A49
| CPU Support | AMD® Ryzen |
| CPU Socket | AM4/AM5 |
| Solution | 4U Server & Up |
| Dimensions | 95 x 95 x 130 mm |
| Weight | 710 g |
| Material | Heatpipes with Aluminum Base and Aluminum Fin Stack |
| Fan Dimension | 103 x 103 x 30 mm |
| Speed |
At Duty Cycle 20%: 800± 200 RPM At Duty Cycle 50%: 1300±10% RPM At Duty Cycle 100%: 1800±10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 20%:0.3 W At Duty Cycle 50%: 0.48 W At Duty Cycle 100%: 0.96 W |
| Air Flow |
At Duty Cycle 20%: 14.88 CFM At Duty Cycle 50%: 25.26 CFM At Duty Cycle 100%: 35.03 CFM |
| Noise Level |
At Duty Cycle 0~20%: 10.8 dBA At Duty Cycle 50%: 15.2 dBA At Duty Cycle 100%: 21.3 dBA |
| Air Pressure |
At Duty Cycle 20%: 0.44 mm-H2O At Duty Cycle 50%: 1.16 mm-H2O At Duty Cycle 100%: 2.06 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
