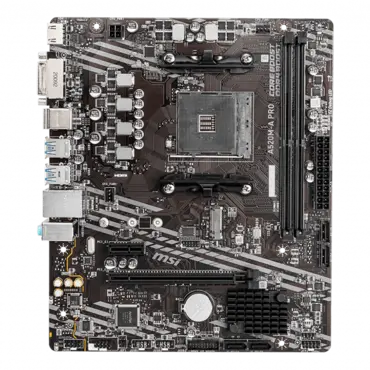

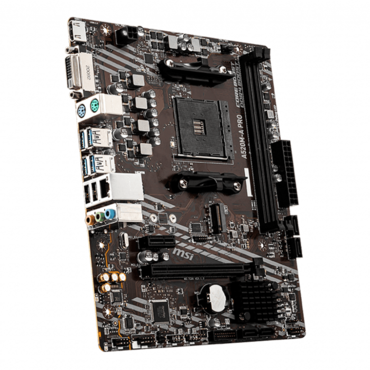

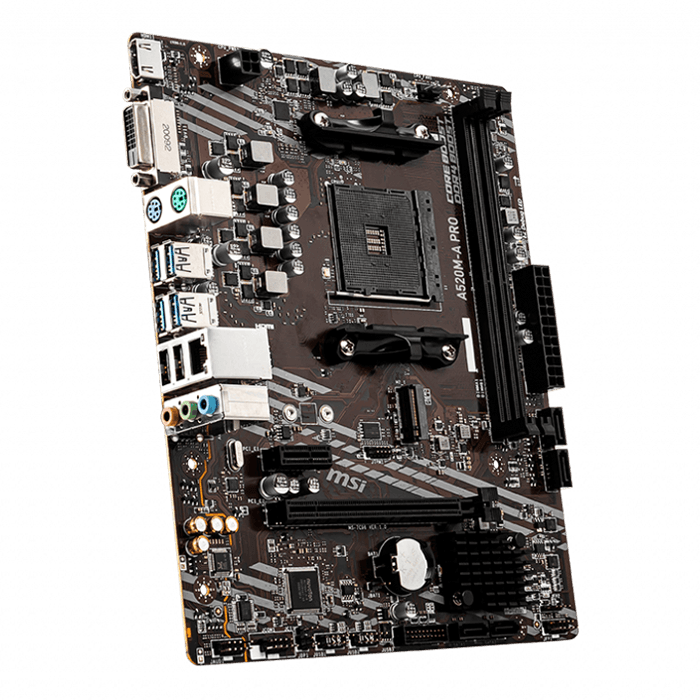

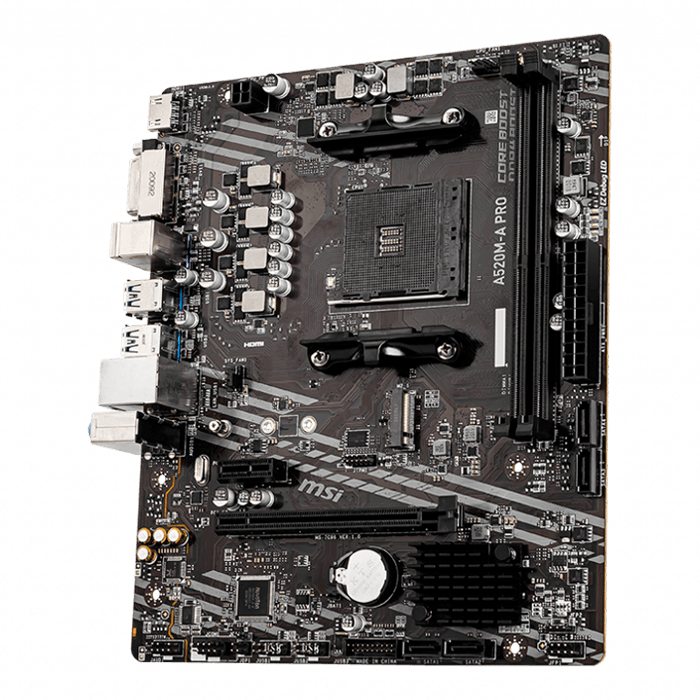

A520M-A PRO, AMD A520 Chipset, AM4, HDMI, microATX Motherboard

SKU: 13562692

Manufacturer: MSI

MPN: A520M-A PRO

Availability: Low Stock


Price: $82.28
or as low as $3/month
Quantity:
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
CPU

Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen4000 G-Series Desktop Processors

See supported processors

CHIPSET

AMD A520 Chipset

MEMORY
  • 2x DDR4 memory slots, support up to 64GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4600 MHz
      • 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT
  • 1x PCIe 3.0 x1 slot 1
  • 1x PCIe x16 slot
  1. The supported specification depends on installed processor.
ONBOARD GRAPHICS
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12
  • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
STORAGE AMD A520 Chipset
  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    • Supports PCIe 3.0 1
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD A520 Chipset
  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
LAN
  • 1x Realtek® RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1xTPM module connector
  • 1x Clear CMOS jumper

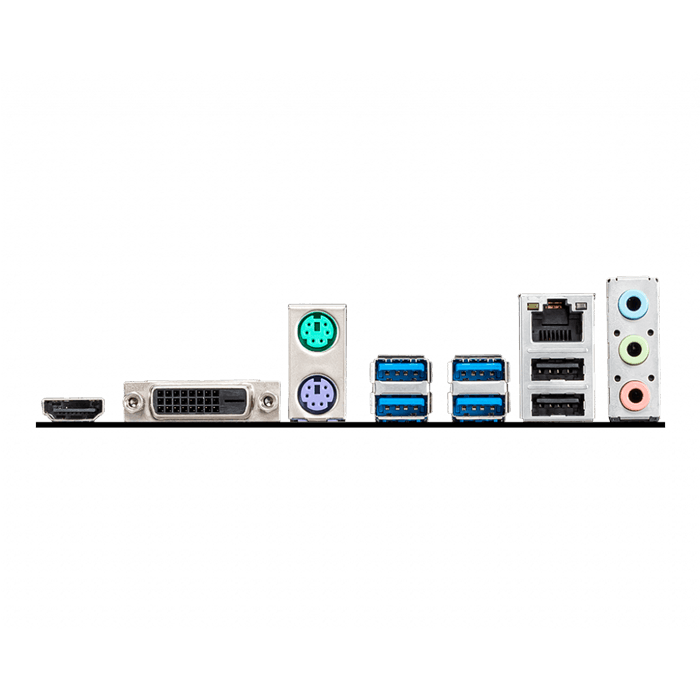

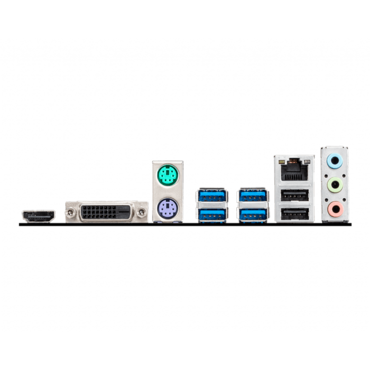

BACK PANEL PORTS
  1. LAN port
  2. HDMI
  3. DVI-D
  4. Keyboard / Mouse
  5. USB 3.2 Gen 1 5Gbps Type-A
  6. USB 3.2 Gen 1 5Gbps Type-A
  7. USB 2.0 Ports
  8. Audio Connectors
A520M-A PRO back panel ports
DIMENSIONS
  • Micro-ATX Form Factor
  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
MOUNTING

8 mounting holes

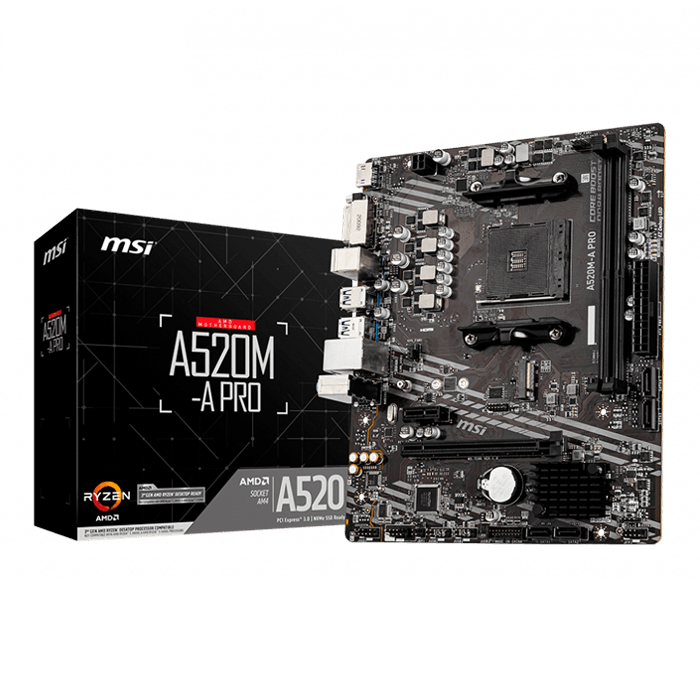

BOX CONTENT A520M-A PRO box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
