READY TO SHIP

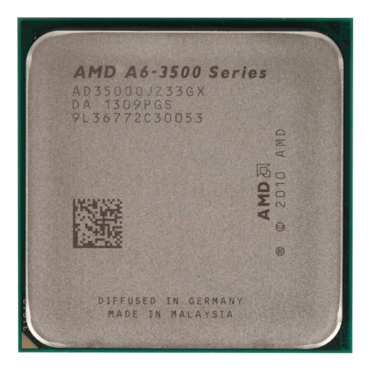

A6-3500 3-Core 2.1 - 2.4GHz Turbo, FM1, 65W, Retail Processor
Quantity:
- SKU: 5463299
- Manufacturer: AMD
- MPN: AD3500OJGXBOX
- Availability: LOW STOCK
Starting At
$32.47
A6-3500 3-Core 2.1 - 2.4GHz Turbo, FM1, 65W, Retail Processor
AMD’s Accelerated Processing Units (APU) combine a multi-core CPU and discrete-level GPU on a single power-efficient chip enabling vivid HD entertainment, blazing-fast Internet browsing and accelerated media applications.
With desktop PCs based on VISION Technology you can enjoy rich, smooth performance in a quiet-running, energy-efficient system. Experience smooth, skip-free HD playback and discover impressive speed and performance in everyday applications.
Triple-core speed and discrete-class graphics give you the power to create and edit premium HD entertainment. With the AMD Triple-Core A6-3500 APU you can video chat, surf the Web and listen to music at the same time.
- 32nm Llano 65W
- 3MB L2 Cache
- AMD Radeon HD 6530D
- MMX instructions
- Extensions to MMX
- 3DNow! technology
- Extensions to 3DNow!
- SSE / Streaming SIMD Extensions
- SSE2 / Streaming SIMD Extensions 2
- SSE3 / Streaming SIMD Extensions 3
- SSE4a
- AMD64 / AMD 64-bit technology
- AMD-V / AMD Virtualization technology
- EVP / Enhanced Virus Protection
- Turbo Core technology
| Type | CPU / Microprocessor |
| Market segment | Desktop |
| Family | AMD A6-Series |
| Model number | A6-3500 |
| CPU part numbers | AD3500OJGXBOX is a boxed microprocessor with fan and heatsink |
| Frequency | 2100 MHz |
| Turbo frequency | 2400 MHz |

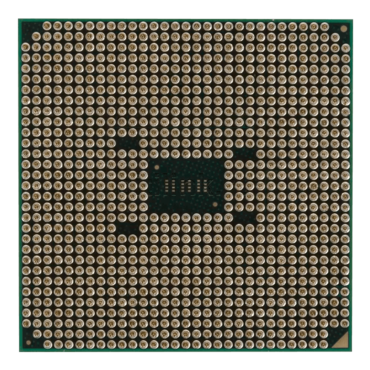

| Package | 905-pin organic lidded micro Pin Grid Array (UOF905) |
| Socket | Socket FM1 |
| Size | 1.57" x 1.57" / 4cm x 4cm |
| Weight |
1.4oz / 39g (CPU) 10.1oz / 287.7g (box) |
| Fan/heatsink | DKM-7D52A-A1-GP |
| Architecture / Microarchitecture | |
|---|---|
| Microarchitecture | K10 |
| Platform | Lynx |
| Processor core | Llano |
| Core stepping | LN-B0 |
| CPUID | 300F10 |
| Manufacturing process |
0.032 micron 1178 million transistors |
| Die size | 227mm2 |
| Data width | 64 bit |
| The number of CPU cores | 3 |
| The number of threads | 3 |
| Floating Point Unit | Integrated |
| Level 1 cache size |
3 x 64 KB 2-way set associative instruction caches 3 x 64 KB 2-way set associative data caches |
| Level 2 cache size | 3 x 1 MB 16-way set associative caches |
| Level 3 cache size | None |
| Cache latency |
3 (L1 cache) 19 (L2 cache) |
| Multiprocessing | Uniprocessor |
| Low power features | PowerNow |
| Integrated peripherals / components | |
| Integrated graphics |
GPU Type: Radeon HD 6530D Shader cores: 320 Base frequency (MHz): 443 |
| Memory controller |
The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1866 Maximum memory bandwidth (GB/s): 29.9 |
| Other peripherals | PCI Express 2.0 Unified | Video Decoder 3.0 |
| Electrical / Thermal parameters | |
| V core | 0.45V - 1.4125V |
| Maximum operating temperature | 70.9°C |
| Thermal Design Power | 65 Watt |
