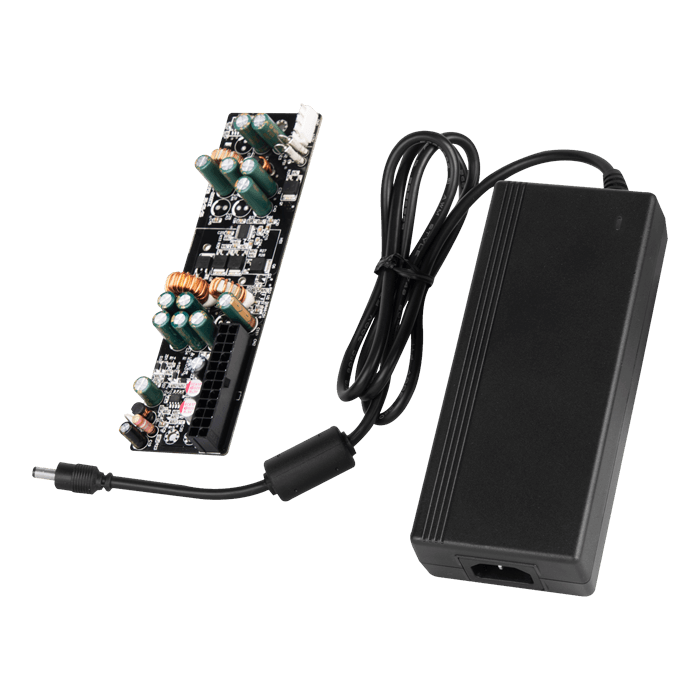

AD120-DC, 120W 100/240V AC Power Adapter /w 120W DC to DC board Kit

Quantity:
  • SKU: 14541483
  • Manufacturer: SILVERSTONE
  • MPN: SST-AD120-DC
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$95.45
Quantity:

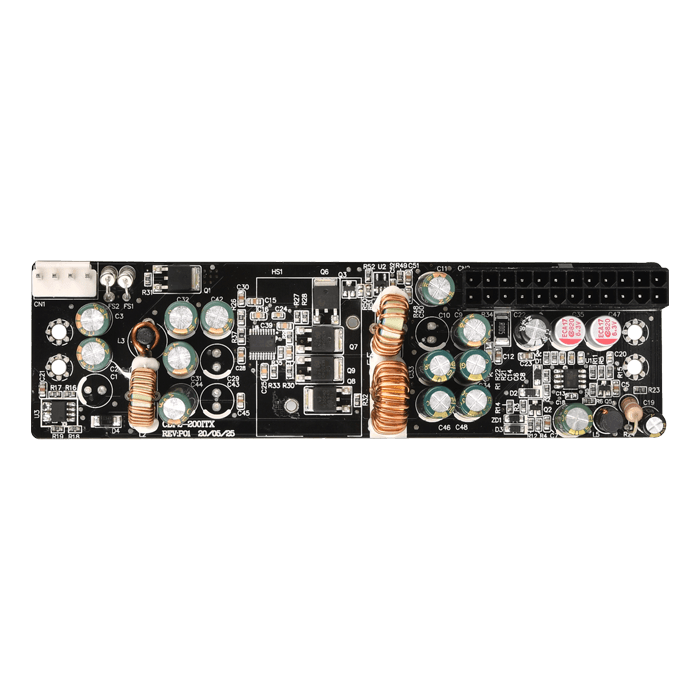

DC to DC board
Max. DC Output
120W
Color
Black
Load Range
  +3.3V +5V +12V +5VSB -12V
Max.(Amps)
12A 12A 10A 3.0A 0.15A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mA 50mA 120mV 50mV 120mV
Combined +3.3V & +5V
95W
Combined +12V
120W
Operating temperature
0°C ~ 40°C
Protection
Over voltage protection
Over current protection
Under voltage protection
Short circuit protection

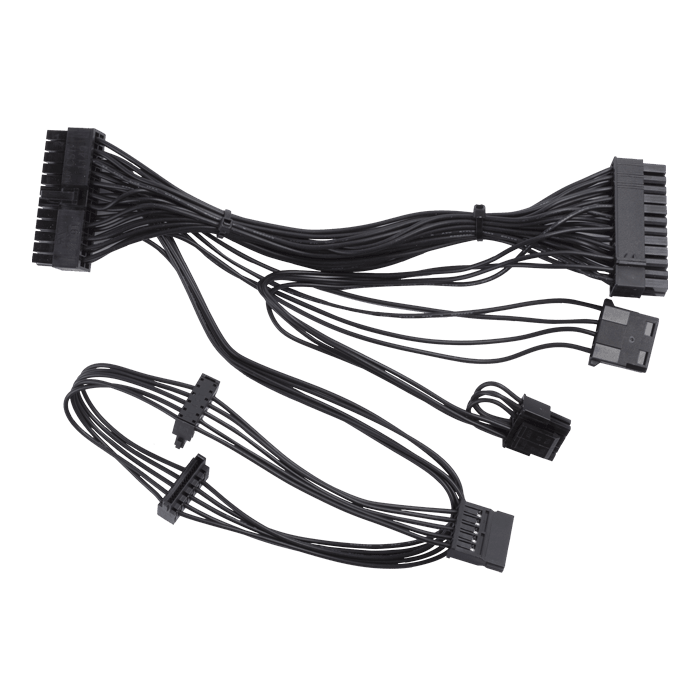

Connectors

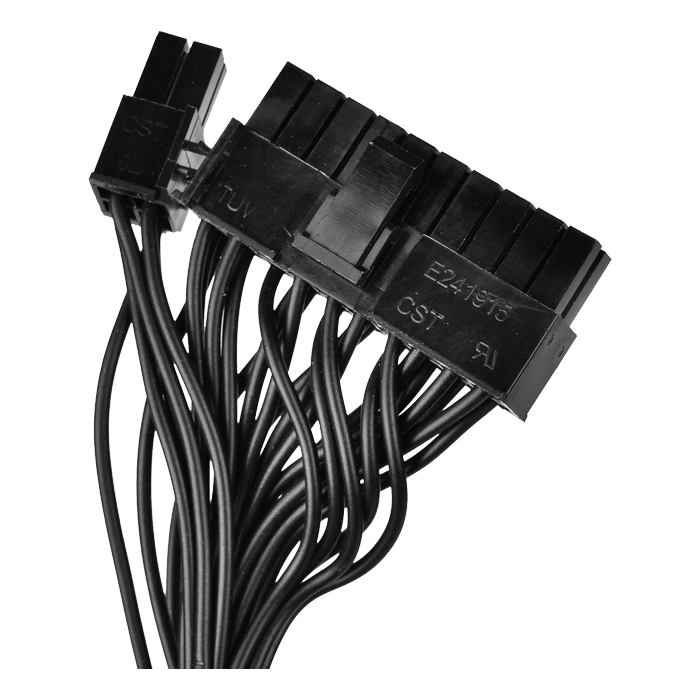

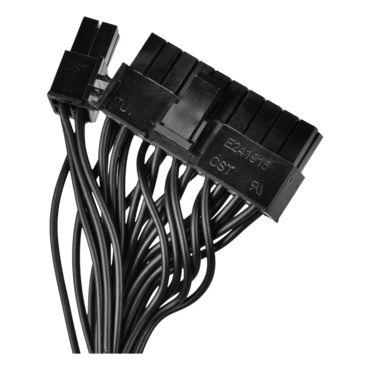

1 x 24-Pin motherboard connector (200mm)

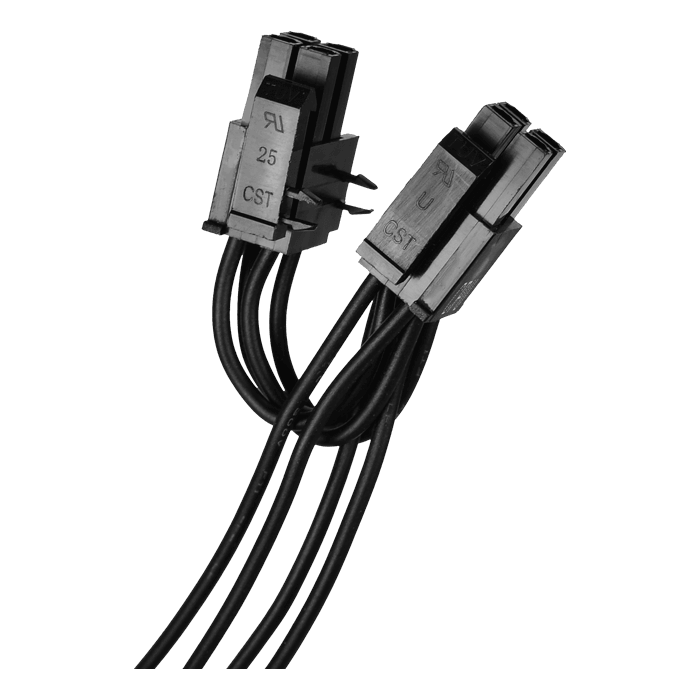

1 x 8 / 4-Pin EPS / ATX 12V connector (250mm)
3 x SATA connector (300mm / 100mm / 100mm)

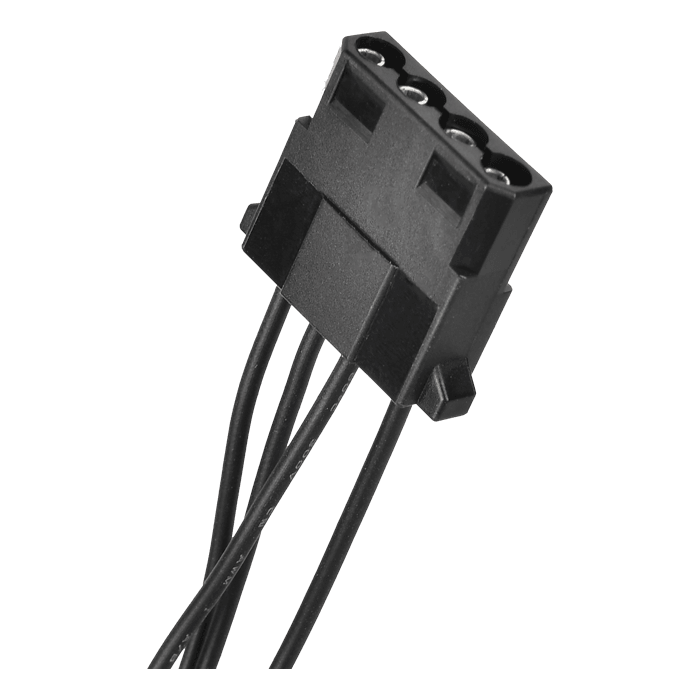

1 x 4-Pin Peripheral connector (200mm)
Dimension
160mm (W) x 25mm (H) x 45mm (D)
6.3" (W) x 0.98" (H) x 1.77" (D)

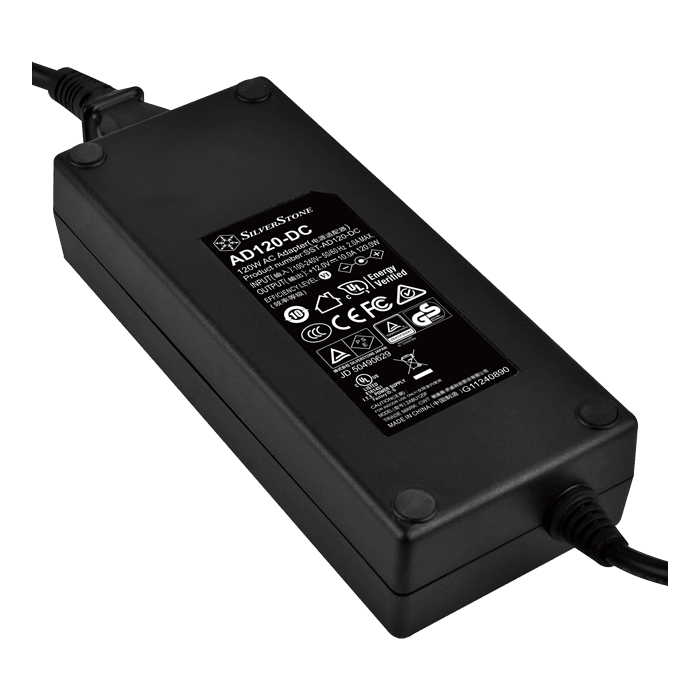

AC adapter
Wattage
120W
Output
12V DC
Input Voltage
100 ~ 240V
Input Frequency Range
47 ~ 63Hz
Max. Output Current
10A
Operating temperature
0°C ~ 40°C
Protection
Over voltage protection
Over current protection
Short circuit protection
Dimension
168mm (W) x 71mm (H) x 37.5mm (D)
6.61" (W) x 2.8" (H) x 1.48" (D)
