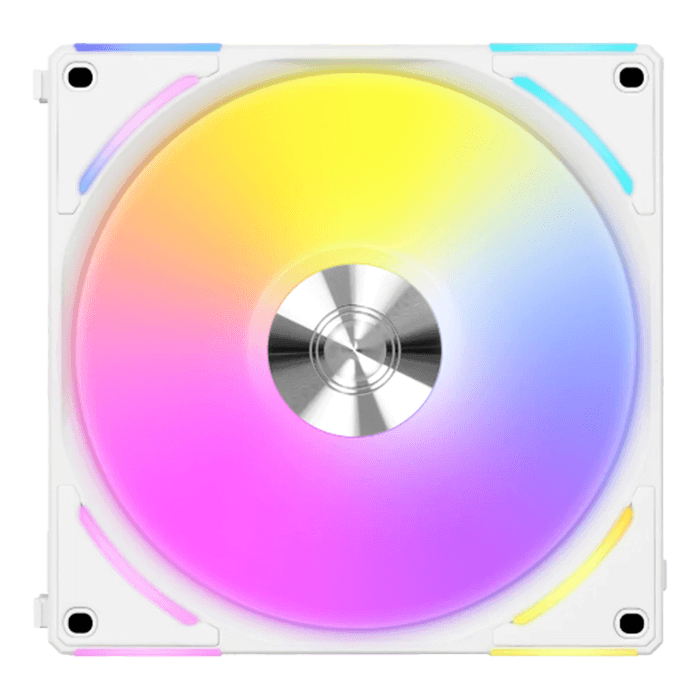

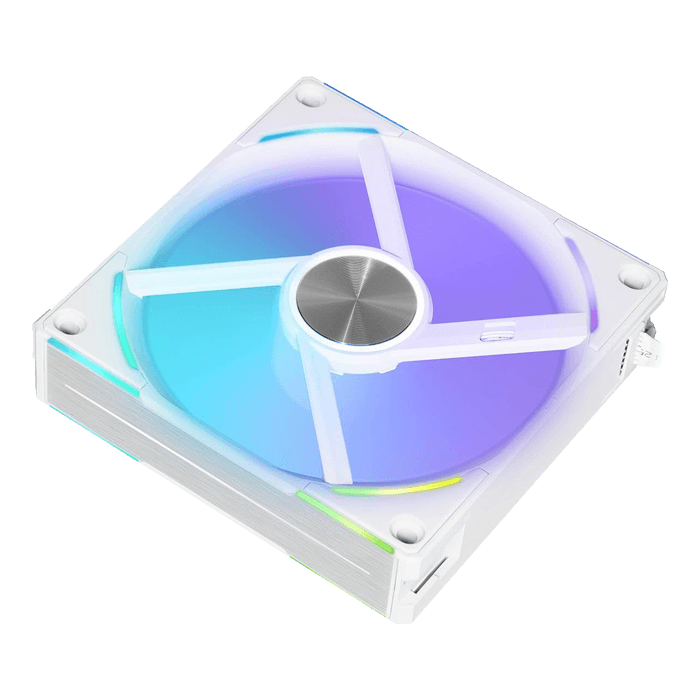

PRODUCT NAME | UNI FAN AL120 V2 |
MODEL | AL140V2-1W |
COLOR | White |
NUMBER OF FANS | 1 |
CONTROLLER | No |
CONNECTOR TYPE | 1 × 4-PIN PWM + 3-PIN SM Type 1 × ARGB MB Adaptor |
FAN DIMENSION | 140 X 140 X 25 (mm) |
FAN SPEED | 0, 250~1600 RPM |
MAX. AIR PRESSURE | 2.80 mmH2O (Maximum) |
MAX. AIRFLOW | 81.6 CFM (Maximum) |
ACOUSTIC NOISE | 26.8 dB(A) Max |
MATERIAL | PBT/PC/Aluminum) |
RATED VOLTAGE | DC 12V (FAN) & 5V (LED) |
BEARING TYPE | Fluid Dynamic Bearing (FDB) |
OPERATE VOLTAGE | DC12V & 5V |
START-UP VOLTAGE | ≦5V5V |
INPUT POWER | 6.32W |
WARRANTY | 2 years |
