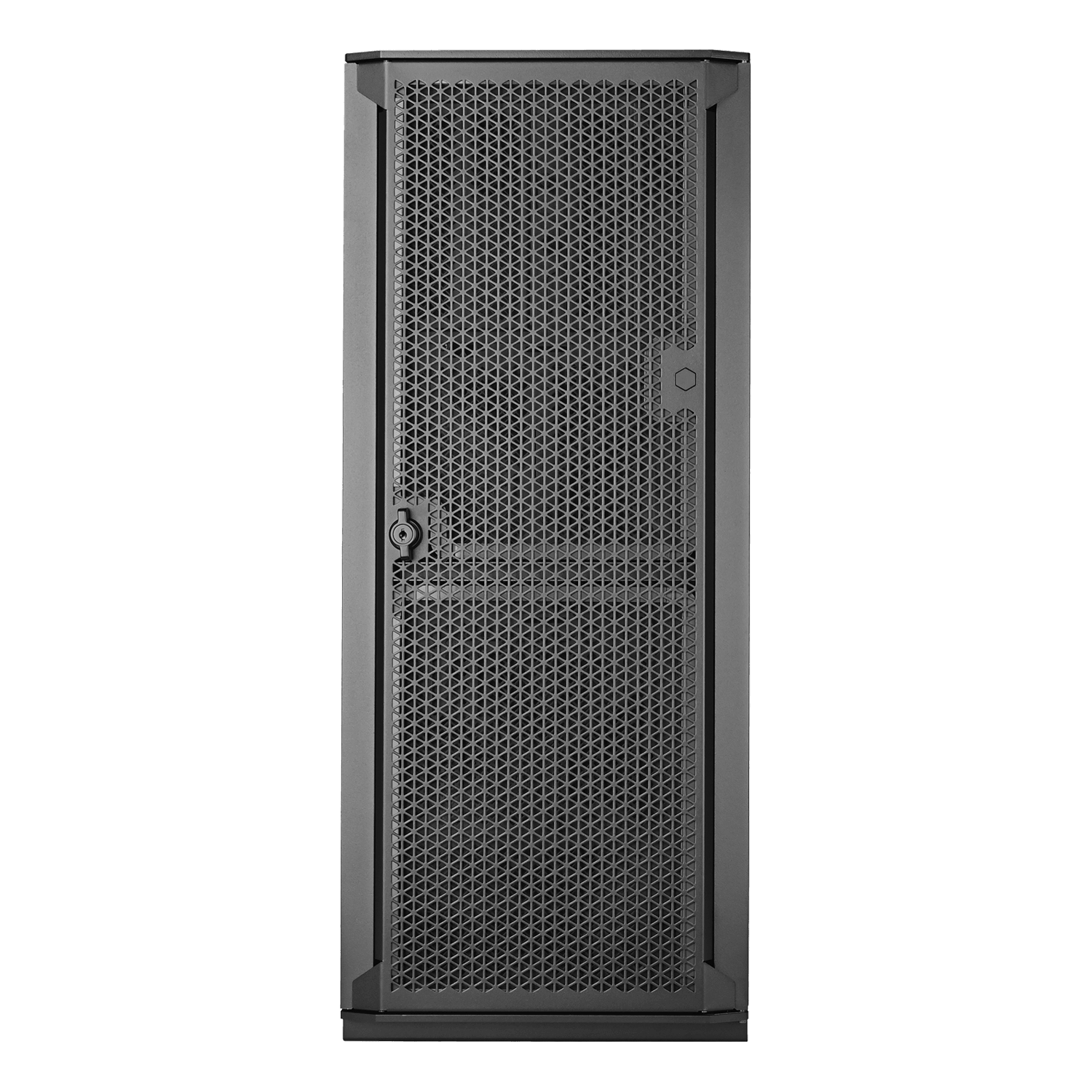

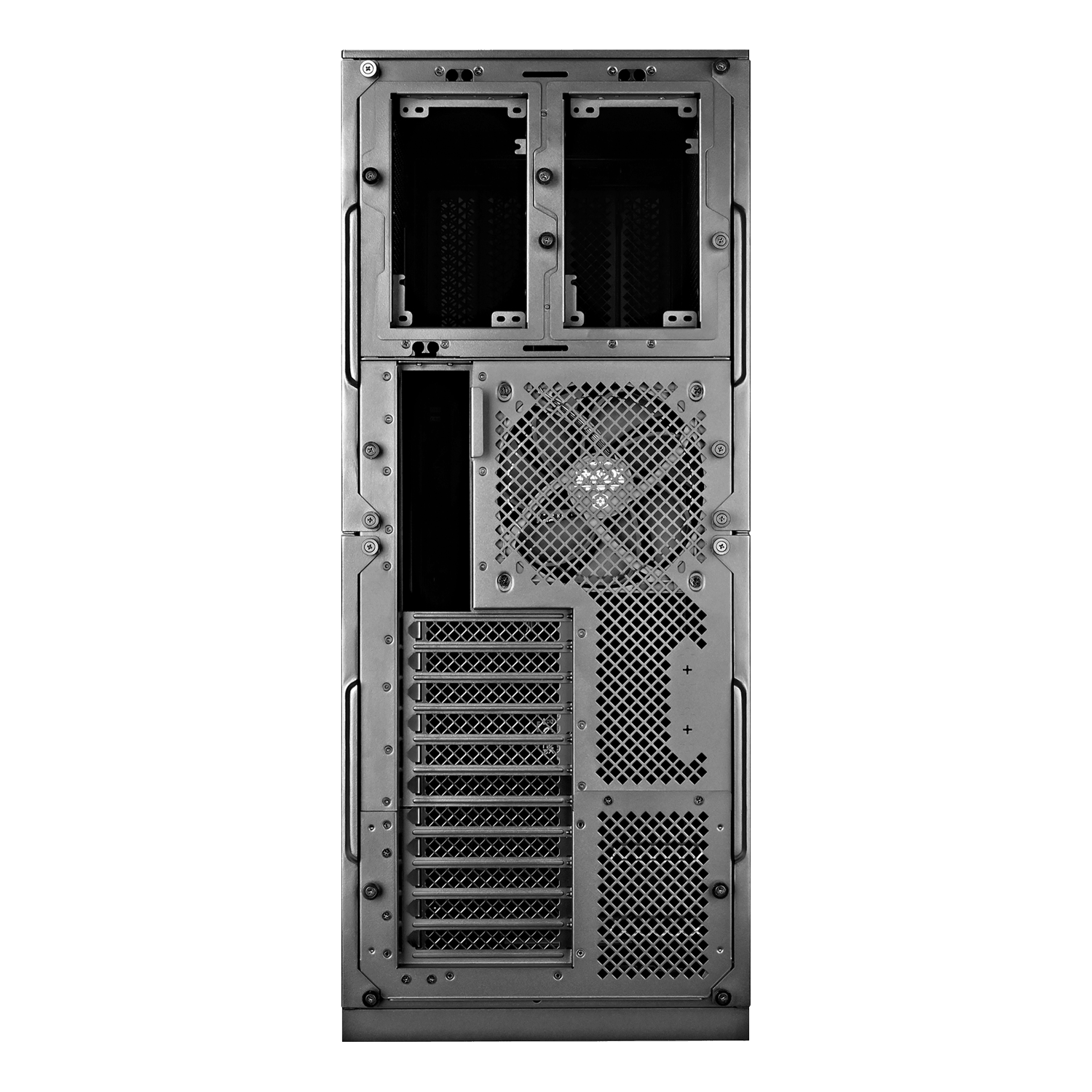

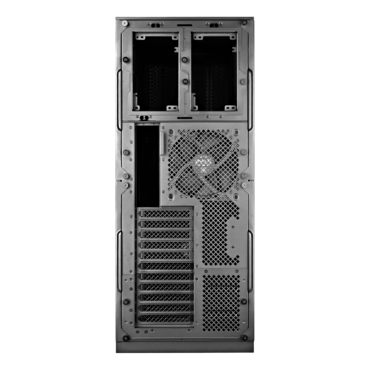

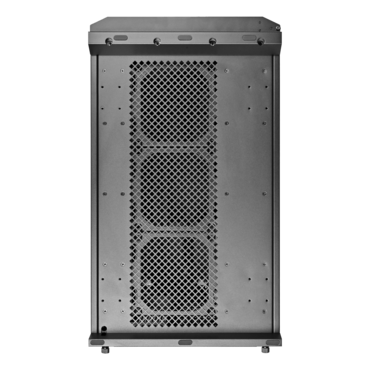

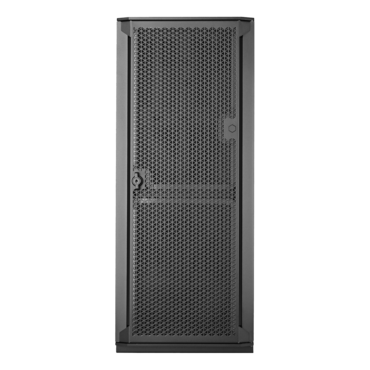

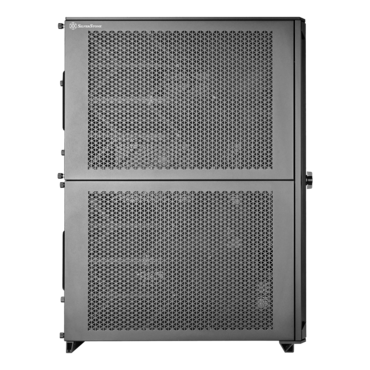

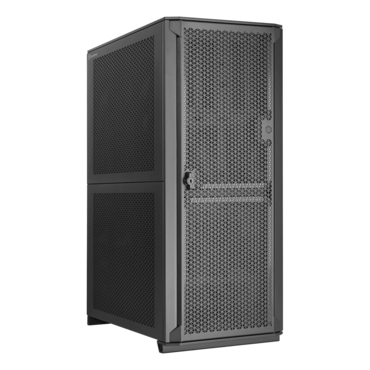

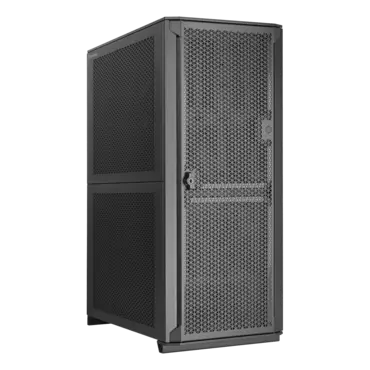

ALTA D1, No PSU, E-ATX, Black, Full Tower Case
ALTA D1, No PSU, E-ATX, Black, Full Tower Case
ALTA D1, No PSU, E-ATX, Black, Full Tower Case
ALTA D1, No PSU, E-ATX, Black, Full Tower Case
ALTA D1, No PSU, E-ATX, Black, Full Tower Case
ALTA D1, No PSU, E-ATX, Black, Full Tower Case
ALTA D1, No PSU, E-ATX, Black, Full Tower Case
ALTA D1, No PSU, E-ATX, Black, Full Tower Case

ALTA D1, No PSU, E-ATX, Black, Full Tower Case

  • SKU: 18160468
  • Manufacturer: SILVERSTONE
  • MPN: ALD1B
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$829.15
$26.75/mo* with bread pay
Quantity:
ALTA D1, No PSU, E-ATX, Black, Full Tower Case

SilverStone ALTA D1 (SST-ALD1B). Designed for deployment in diverse high-computing applications, the ALTA D1 supports server-grade components, including SSI-EEB (12" x 13") and specialized form factor motherboards up to 15.12" x 13.2".

  • Compatible with 12" x 13" SSI-EEB and 15.12" x 13.2" specialized form factor motherboards
  • Multiple modules for maximizing expansion, performance, and flexibility
  • Supports up to 11 PCI slots for multi-workstation GPU capability, with a total graphics card clearance of 407mm
  • Dual PSU support
  • Supports a maximum of three 360mm radiators
  • Crafted from high-grade steel, provides exceptional durability and robustness
  • Front I/O includes 1 x USB Type-C, 2 x USB 3.0
Model No. SST-ALD1B
Material Steel, aluminum
Motherboard Specialized form factor (15.12" x 13.2"), SSI-EEB (12" x 13"), SSI-CEB (12" x 10.5"), Extended ATX (12" x 13"), XL-ATX(13.5" x 10.3"), ATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Drive bay

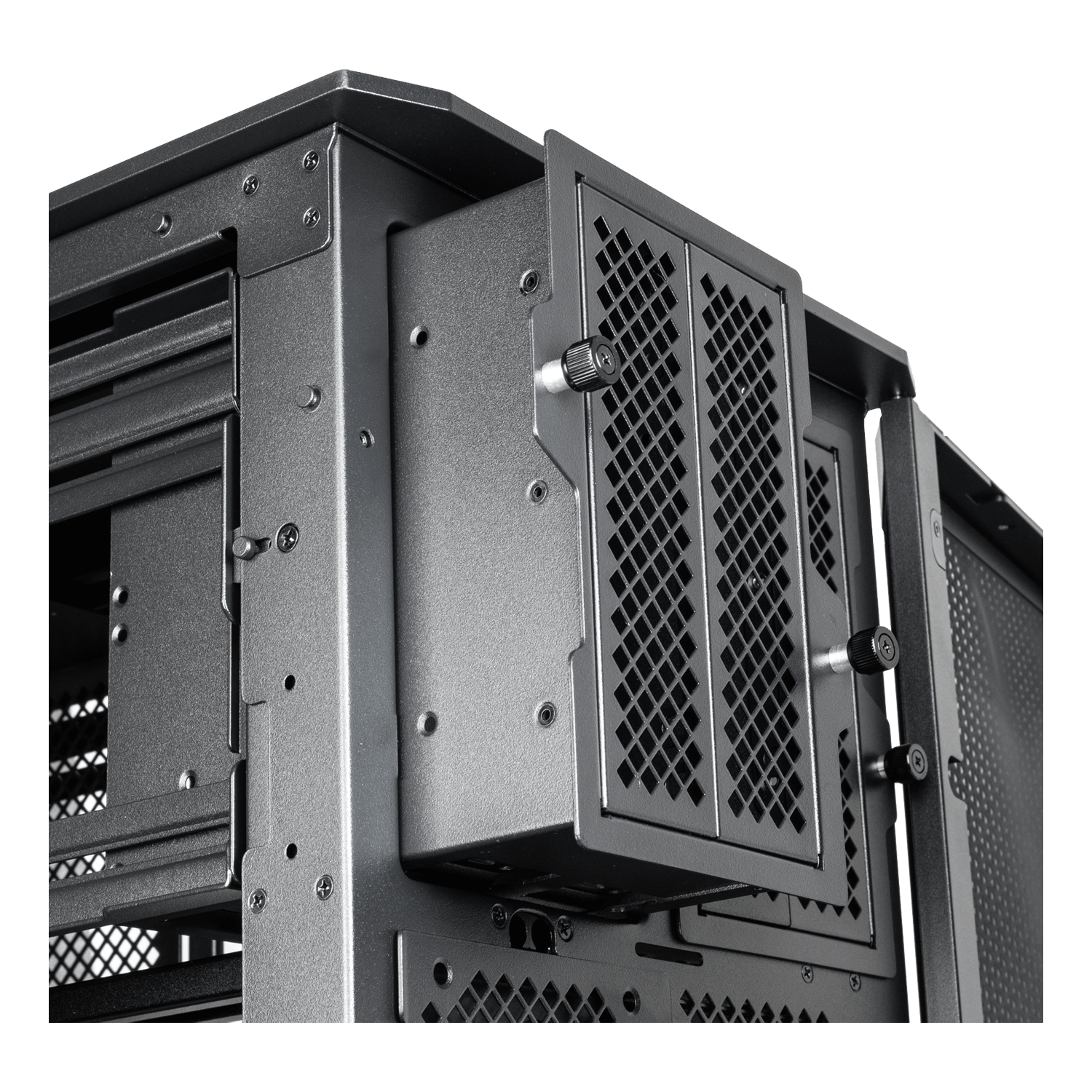

External (5.25" x 2 / 3.5" x 2 / 2.5" x 4) x 2 [1]
Cooling system
Front 180mm x 2 + 160mm x 1 or 140mm x 1 / 80mm x 8 + 140mm x 1
(180mm x 2 black fans included)
Rear 120mm x 1 / 140mm x 1 (140mm x 1 black fan included)
Bottom 120mm x 3 (without modular kit occupied)
Side Left side : 120mm x 6 / 140mm x 4 [2]
Right side : 120mm x 3 / 140mm x 2 [2]
Radiator support
Rear 120mm
Bottom 120mm / 240mm / 360mm (without modular kit occupied)
Side Left side : (120mm / 140mm / 240mm / 280mm / 360mm) x 2 [2]
Right side : 120mm / 140mm / 240mm / 280mm / 360mm [2]
Limitation of CPU cooler 191mm
Expansion slot 11 (without modular kit occupied)
7 (with modular kit occupied)
Limitation of expansion card Length : 407mm (without installing front mounted fans)
Width : 186mm (with GPU brace installed) , 194mm (without GPU brace installed)
Power supply Standard PS2 (ATX) + Standard PS2 (ATX)

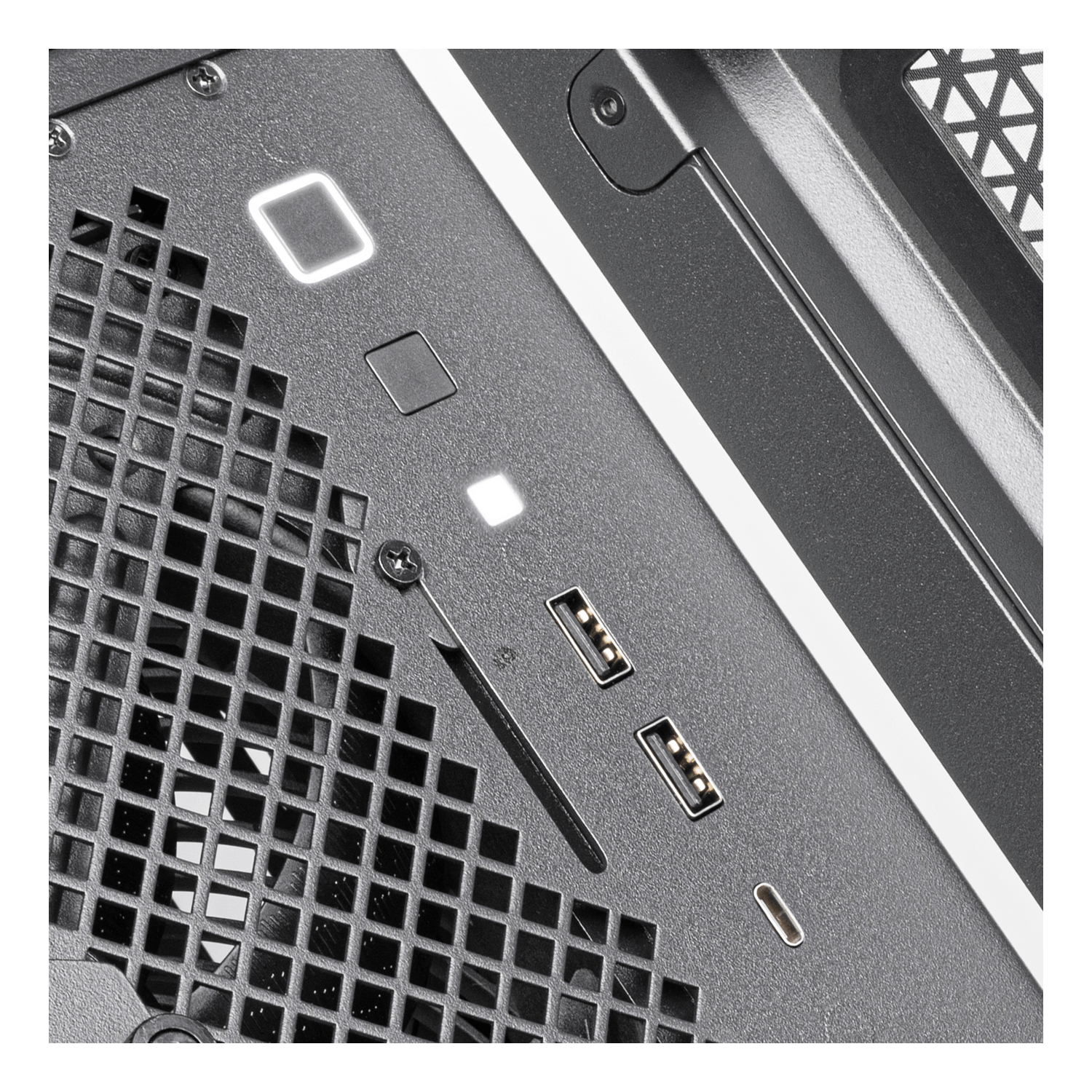

Front I/O port USB Type-C x 1
USB 3.0 x 2
Dimension 265mm (W), x 651mm (H), x 457mm (D), 78.84 liters
10.43" (W), x 25.63" (H), x 18" (D), 78.84 liters
Net weight 21.3 kg

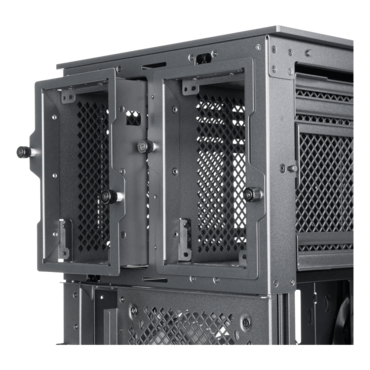

Remark [1] Two drive cages are included, with a maximum of six cages that can be mounted inside the chassis. Additional cages can be purchased separately.
[2] Mounted on a fan/radiator bracket, with one bracket pre-installed on the left and right side of the chassis respectively, each bracket supports either 120mm x 3 or 140mm x 2 fans. The bracket on the right side can be removed to be mounted on the left side as per requirement. Additional brackets can be purchased separately
