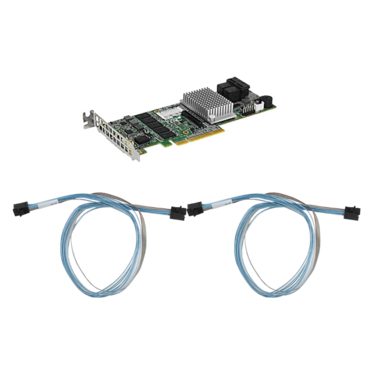

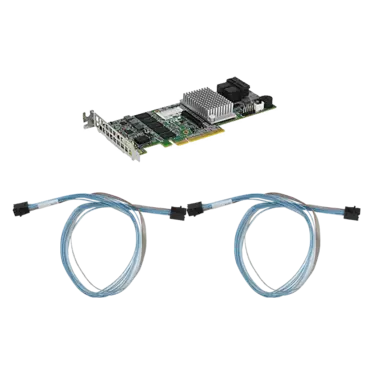

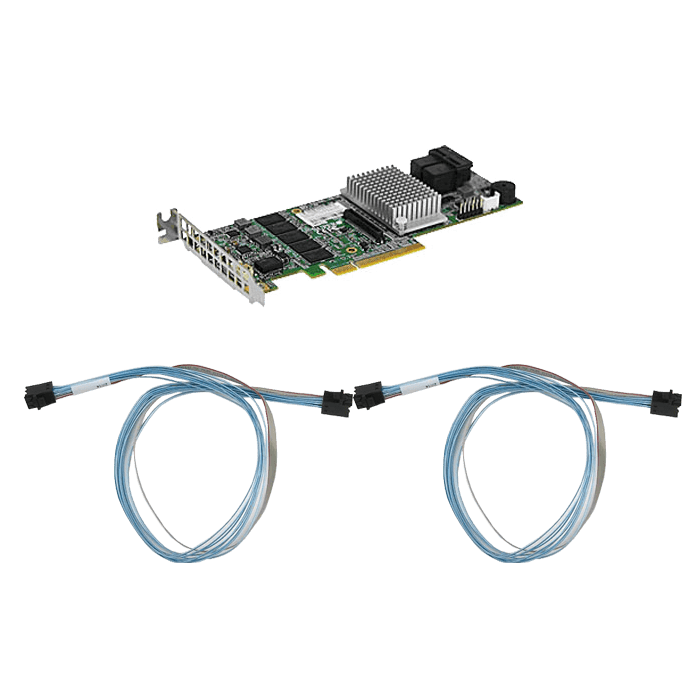

AOC-S3108L-H8iR SAS/SATA RAID Controller, 8-port, 12 Gb/s, Levels 0/1/10/5/50/6/60, Low-Profile + Cable CBL-SAST-0532 x2

Quantity:
  • SKU: 9735159
  • Manufacturer: SUPERMICRO
  • MPN: AOC-S3108L-H8IR+2xCBL-SAST-0532
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$810.46
Quantity:
  • Broadcom 3108 8-port PCI-E SAS-3 controller
  • 8-port (8 internal) 12Gb/s per port
  • Supports RAID 0, 1, 5, 6, 10, 50, 60
  • On board hardware IO Processor
  • 2GB 1866MHz DDR3 on-card cache
  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support
  • Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
  • Port independent auto-negotiation
  • Supports SSP, SMP, STP and SATA protocols
  • Optional Supercap/TFM Unit for cached data protection BTR-TFM8G-LSICVM02 (See "Optional Parts List" below for more details)
  • OS Support : Windows (2012, Server 2016 , Server 2019, 8 and 8.1), Linux RHEL, Ubuntu and SUSE
  • Uses 2 MiniSAS HD (SFF-8643) connectors
  • Operating Temp: 10° to 55°C
H x L 2.71" x 6.6"
Weight 0.5 lbs
Tested Motherboards and Servers
Motherboards
  • X10SRi-F
  • X10SRW-F
  • X9SRH-7F*
  • X9DR3-LN4F+*
  • X9DRW-CF31*
  • X9DRT-PIBQ*
