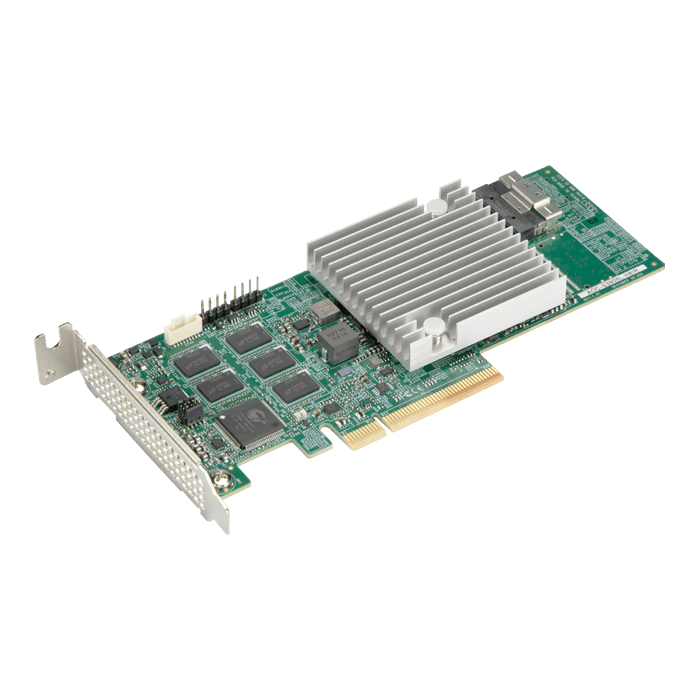

AOC-S3908L-H8IR-O, SAS 12Gb/s, 8-Port, PCIe 4.0 x8, Controller

Quantity:
  • SKU: 14507175
  • Manufacturer: SUPERMICRO
  • MPN: AOC-S3908L-H8IR-O
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,133.32
Quantity:
  • Cachevault to protect onboard cache memory
  • Low profile x8 PCIe Gen 4.0 root complex interface
  • Supports MegaRAID Storage Manager SW and secure boot
  • 8 internal SAS connectors for high-performance storage connectivity
Main Specifications
Device Type Internal RAID Adapter
Form Factor Low Profile
Interface x8 PCIe Gen 4.0
Dimensions (WxDxH) 6.6 x 2.71 in - without bracket
Storage Controller
RAID Level RAID 0, 1, 5, 6, 10, 50, 60
Onboard Memory/Cache 8GB DDR4 onboard cache memory – 2666MHz
Data Transfer Rate Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
Expansion / Connectivity
Interface / Ports 8 internal SAS3 ports
Miscellaneous
Features Supports: MCTP over PCIe, Supports advanced software Encryption - included, Supports MegaRAID Storage Manager SW and secure boot
Compatible Servers AS-1114S-WN10RT, SYS-120U-TNR, SYS-510P-M, SSG-6049SP-DE1CR90, SSG-620P-ACR12H, SYS-F610P2-RTN, SYS-F620P3-RTBN
Compatible Motherboards X12SPO-F
Compliant Standards RoHS Compliant 6/6, Pb Free
Software / System Requirements
OS Supports Windows/Linux
