AOC-SGP-I2, 1Gbps, 2xRJ45, PCIe Network Adapter

  • SKU: 8489111
  • Manufacturer: SUPERMICRO
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

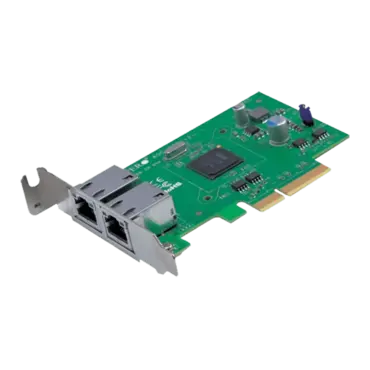

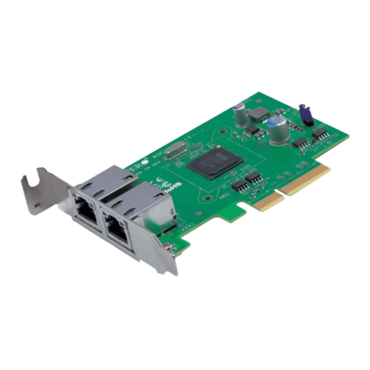

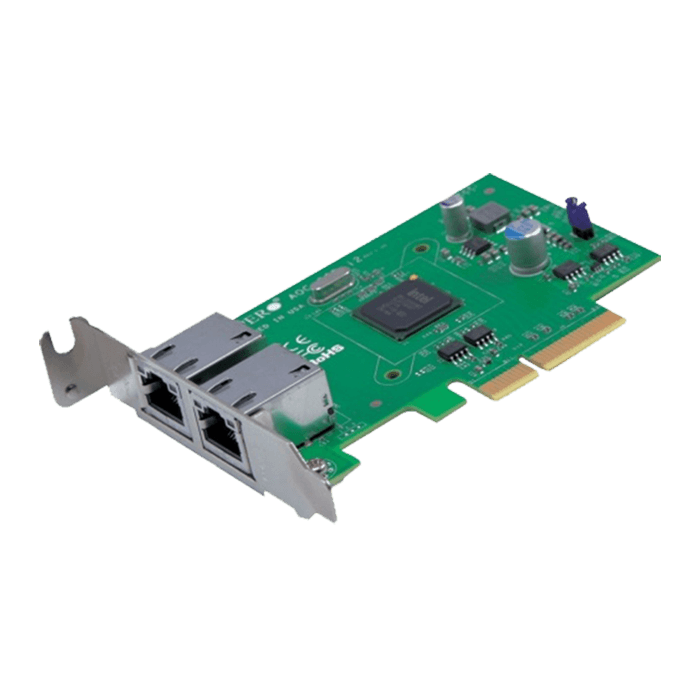

AOC-SGP-I2, 1Gbps, 2xRJ45, PCIe Network Adapter

AOC-SG-I2 provides industry best performance per cost ratio through its high-performing, PCI Express 10/100/1000 Ethernet connection. A compact design controller that also improves flexibility and performance in a virtualized environment in multi-core systems by lowering interrupt overhead and providing sorted multiple data queue paths.

  • Low-Profile Standard Form Factor
  • PCI Express 2.1 (2.5GT/s or 5GT/s)
  • 2 RJ-45 ports
  • Intel® I/O Acceleration Technology (I/O AT)
  • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
  • Jumbo Frame Support up to 9.5KB
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Low Power Consumption (4W Typical)
  • iSCSI Remote Boot Support
  • Flexible I/O Virtualization and Quality of Service (QoS)
  • PXE Boot Support
  • RoHS compliant 6/6
    Technical Details Intel® i350 GbE controller
    Compact size low-profile standard form factor
    PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
    Dual RJ-45 connectors
    Intel® PROSet Utility for Windows® Device Manager
    Intel® I/O Acceleration Technology (I/O AT)
    Ethernet Features IEEE 802.3 auto-negotiation for speed, duplex, and flow control
    IEEE 802.3x and 802.3z compliant flow control support
    Automatic cross-over detection function (MDI/MDI-X)
    1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
    IEEE 1588 protocol and 802.1AS implementation
    Power Management and Efficiency IEEE 802.3az Energy Efficient Ethernet (EEE) which reduces power
    consumption of the PHY by about 50%
    DMA Coalescing reduces platform power consumption
    Active State Power Management (ASPM) support
    LAN disable function
    MAC Power Management controls
    Low Power Link Up Link Speed Control
    Power consumption: 4W
    Virtualization Features VM to VM Packet forwarding (Packet Loopback)
    Eight TX and RX queue pairs per port to support VMWare NetQueue
    and Microsoft VMQ
    Flexible Port Partitioning: 32 Virtual Functions
    PC-SIG SR-IOV implementation
    IEEE 802.1q VLAN support
    IEEE 802.1q advanced packet filtering
    Performance Features TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
    Low Latency Interrupts
    Tx TCP segmentation offload (IPv4, IPv6) increases throughput and
    lowers processor usage
    Receive Side Scaling (RSS) for Windows environment, Scalable I/O for
    Linux environments
    Jumbo Frames support up to 9.5K Bytes
    Intelligent interrupt generation
    Remote Boot Options Preboot eXecution Environment (PXE) support
    iSCSI remote boot for Windows, Linux, and VMware
    OS Support Windows® XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2, 2008 R2S
    RedHat EL 5.5, 6.0; SuSe SLES 10 SP3, 11 SP1
    FreeBSD 8.0
    VMware ESX 4.0, 4.1, 5.0
    Cables Support RJ-45 Category-5/5e up to 100m
    Operating Conditions
    Operating temperature: 0°C to 55°C (32°F to 131°F)
    Storage temperature: -40°C to 70°C (-40°F to 158°F)
    Physical Dimensions Card PCB dimensions:
    9.91cm (3.90in) x 6.90cm (2.73in) (L x H)
    Height of end brackets:
    standard 12cm (4.725in),
    low-profile 7.94cm (3.13in)
