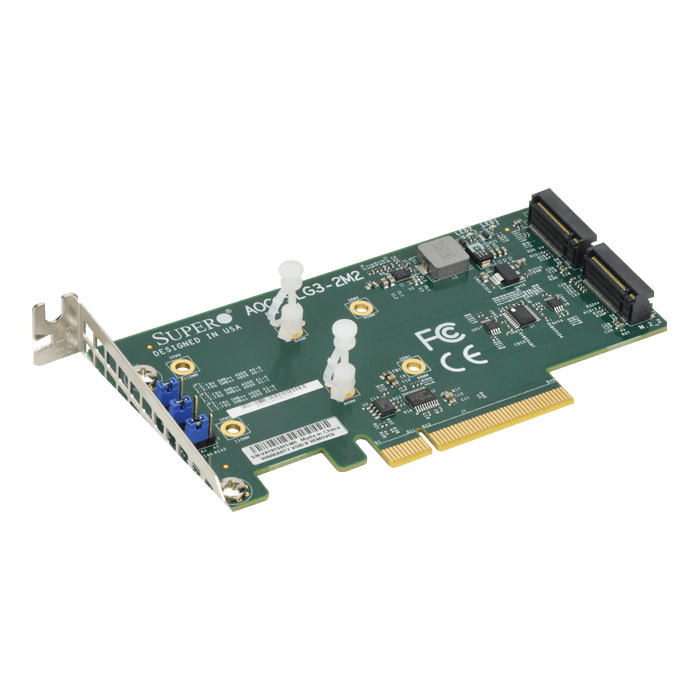

AOC-SLG3-2M2 PCI-E Add-On Card for up to two NVMe SSDs
Supermicro PCI-E Add-On Card for up to two NVMe SSDs
The Supermicro NMVe AOC-SLG3-2M2 features two internal sockets for M.2 NVMe SSDs allowing any system to yield high-performance and low power storage expandability. Once populated with one or two NVMe M.2 SSDs, this robust add-on card will address the growing demand for increased storage performance and scalability for a diverse range of solutions; from entry level SMB systems to enterprise class server platforms. Ideal for embedded / IPC solutions and desk top / gaming station solutions, NVMe SSDs outperform current SAS/SATA SSDs several times over.
Supermicro PCI-E Add-On Card for up to two NVMe SSDs
The Supermicro NMVe AOC-SLG3-2M2 features two internal sockets for M.2 NVMe SSDs allowing any system to yield high-performance and low power storage expandability. Once populated with one or two NVMe M.2 SSDs, this robust add-on card will address the growing demand for increased storage performance and scalability for a diverse range of solutions; from entry level SMB systems to enterprise class server platforms. Ideal for embedded / IPC solutions and desk top / gaming station solutions, NVMe SSDs outperform current SAS/SATA SSDs several times over.
- Gen 3.0 PCI-E x8
- Supports up to 2 NVMe M.2 SSDs
- Ambient operating temperature from 10°C - 55°C
- OS Support: Windows, Linux, VMWare
- M.2 Key: M-key
- Each socket supports PCI-E 3.0 x4
- Mfr Part Number: AOC-SLG3-2M2
- Features:
- Supports up to 2 NVMe M.2 SSDs
- Pure HBA
- Ambient operating temperature from 10‚°C - 55‚°C
- OS Support - Windows, Linux
- Supports up to 2 NVMe M.2 SSDs
- Form factor: PCIe 3.0 x8 low-profile card
- Adjustable stand-off supporting multiple M.2 lengths: 22x110mm, 22x80mm, 22x60mm
- Validated Platforms: Motherboards - X11DAi-N, X11DPT-B, X11SPM-TF, X11DPU+, X11SPW-CTF, X11SSD-F, X11SSL, X11SSL-F, X11SSL-CF, X11SSZ-F, X10DAi, X10DRD-i, X10DRD-L, X10DRG-Q, X10DRG-H, X10DRL-i, X10DRT-H, X10DRT-PS, X10DRT-B+, X10DRU-i+, X10DRW-i, X10DSC+, X10SDV-2C-7TP4F, X10SRA, X10SRi-F, X10SRM-F, X10SRM-TF
- Dimensions (LxH): 5.24 x 2.71 inch
- Low Profile Design
- RoHS Compliant
