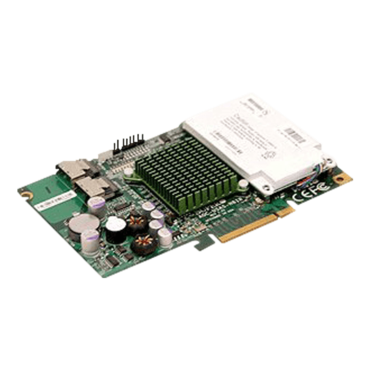

AOC-USAS-H8iR, SAS 3Gb/s, 8-Port, PCIe, Controller with 256MB Cache

  • SKU: 1145317
  • Manufacturer: SUPERMICRO
  • Availability: LOW STOCK
Starting At
AOC-USAS-H8iR, SAS 3Gb/s, 8-Port, PCIe, Controller with 256MB Cache

The Supermicro UIO MegaRAID AOC-SAS-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of battery backup unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.

Using a LSISAS 1078 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth, this UIO internal RAID adapter deliver an intelligent and robust RAID solution. The AOC-SAS-H8iR supports RAID 0, 1, 5, 6, 10, 50 and 60.

  • External connection to SAS/SATA JBODs or backup devices
  • 8-Lane PCI-Express interface (Supermicro UIO slot)
  • 8 ports, 3Gb/s per port (2 aggregated 2.4GB/s throughput)
  • LSISAS 1078 8-port PCI-E SAS controller
  • 8-port (8 internal) 3Gb/s per port
  • Supports RAID 0, 1, 5, 6, 10, 50, 60
  • On board hardware IO Processor
  • 256MB 667MHz DDR2 on-card cache
  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support
  • Supports 1.5 and 3.0 Gb/s SAS and SATA data transfer rates
  • Port independent auto-negotiation
  • Supports SSP, SMP, STP and SATA protocols
  • Optional Battery Backup Unit for cached data protection
  • OS Support : Windows 2000/XP/2003, RedHat Enterprise and SUSE Linux
Model Controller/IOP SAS Port RAID Memory
AOC-USAS-H8iR LSISAS 1078 8 ports, 3Gb/s per port
8 Internal
RAID 0, 1, 5, 6, 10, 50, 60
(with iButton)
256MB DDR2 on-card cache w/ battery back-up option
