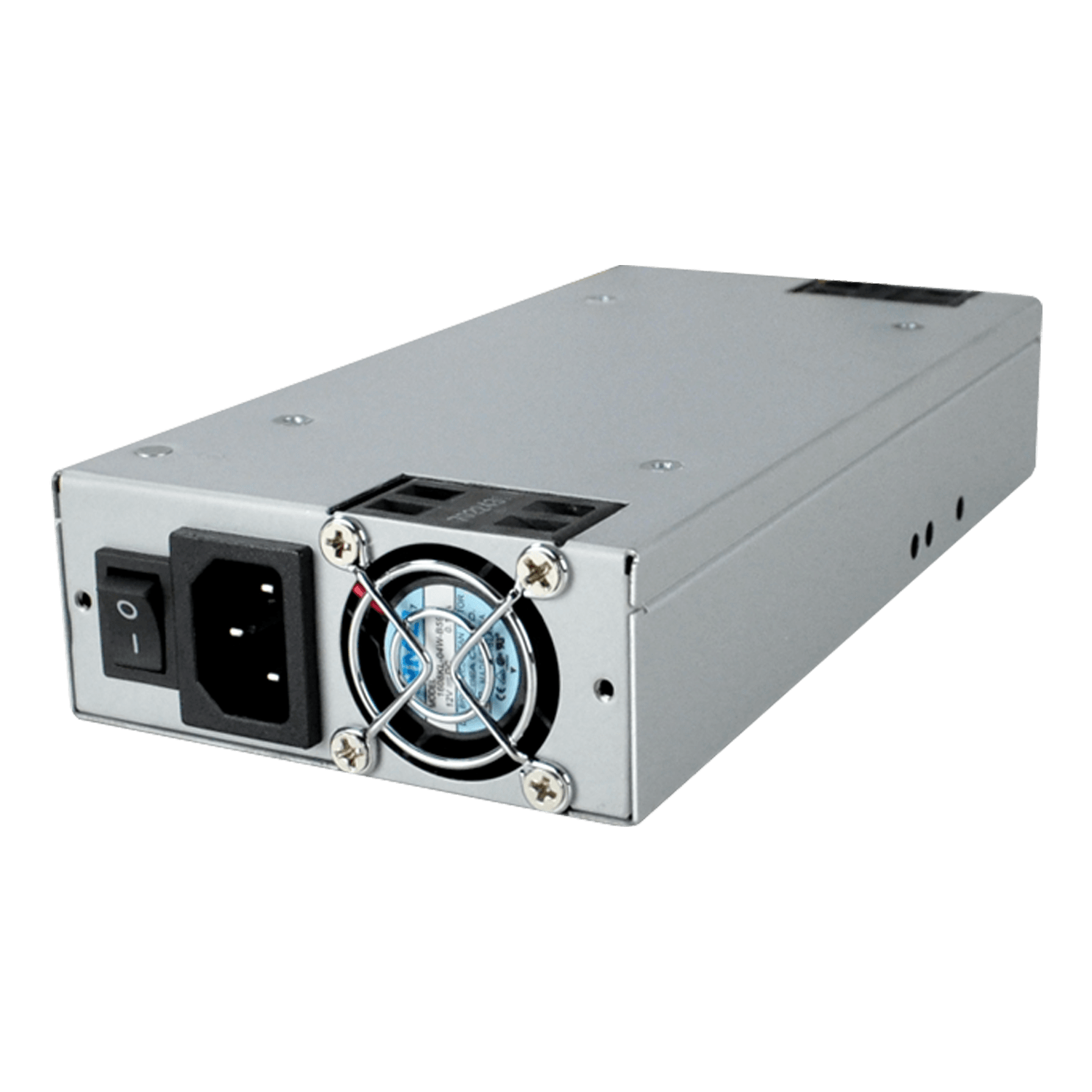

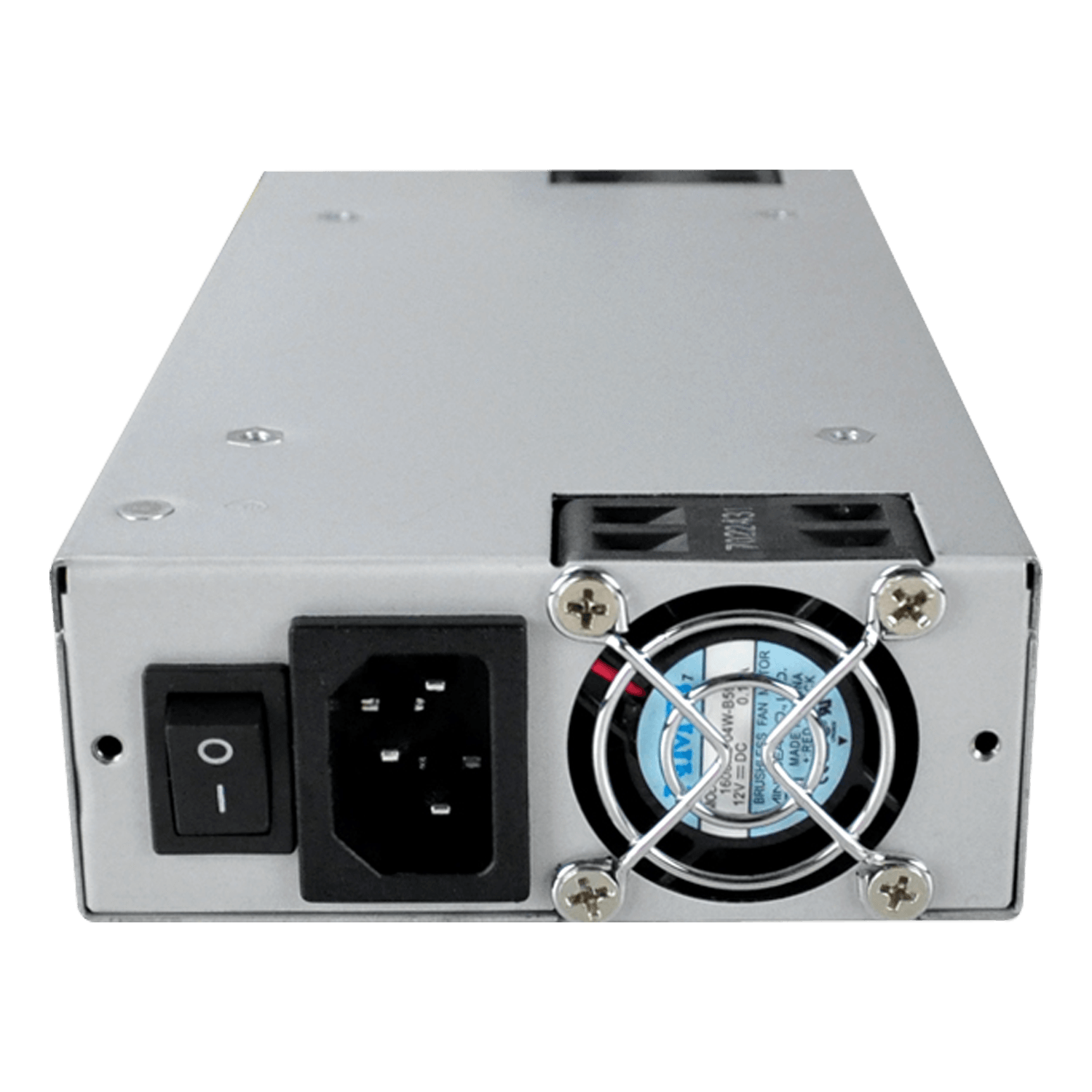

AP-U1ATX40P8, 80 PLUS Bronze, 400W, Single 1U Power Supply
- SKU: 4992795
- Manufacturer: ATHENA POWER
- MPN: AP-U1ATX40P8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$108.10
| Model | AP-U1ATX40P8 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | 1U / 2U | ||||||||||||||
| Product Sub Category | 1U IPC Power Supplies | ||||||||||||||
| Output Power | 400 Watts | ||||||||||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less than 20 ms | ||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin x 1
EPS 12V 8 (4 + 4) Pin x 1
P4-12V 4 Pin x 1
PCIE 6 Pin x 2
SATA 15 Pin x 3
Molex 4 Pin x 2
Floppy 4 Pin x 1
|
||||||||||||||
| Dimension | (L x W x H) 200 x 100 x 39.5 mm / 7.87 x 3.94 x 1.55 in | ||||||||||||||
| Weight | 3.00lb | ||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
