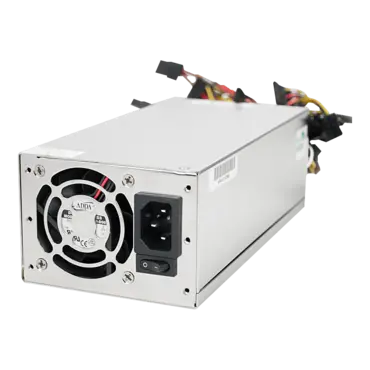

AP-U2ATX80FEP8, 80 PLUS Bronze, 800W, 2U, Power Supply
Quantity:
- SKU: 7994773
- Manufacturer: ATHENA POWER
- MPN: AP-U2ATX80FEP8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$173.97
| Model | AP-U2ATX80FEP8 | ||||||
| Product Category | 1U / 2U | ||||||
| Product Sub Category | 2U IPC Power Supplies | ||||||
| Output Power | 800 Watts | ||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||
| Frequency | 47/63 Hz | ||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||
| Rise time | Less than 20 ms | ||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||
| Output | |||||||
| Voltage | +5V | +3.3V | +12V1 | +12V2 | -12V | +5V-SB | |
| Current | 22A | 20A | 32A | 32A | 1.0A | 3.5A | |
| Connectors |
ATX Connector 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS-12V 8 Pin x 2 PCIE 6 Pin x 2 PCIE 6 + 2 Pin x 2 SATA 15 Pin x 8 Molex x 4 Pin x 2 Floppy 4 Pin x 1 |
||||||
| Dimension | (L x W x H) 200 x 100 x 69.7 mm/ 7.87 x 3.93 x 2.74 in | ||||||
| Weight | 5.00lb | ||||||
| Warranty | 3 Year Manufacture Limited Warranty | ||||||
| UPC Code | 821524028000 | ||||||
