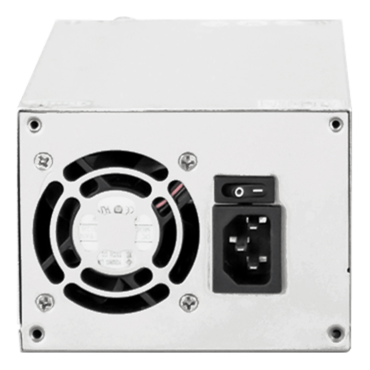

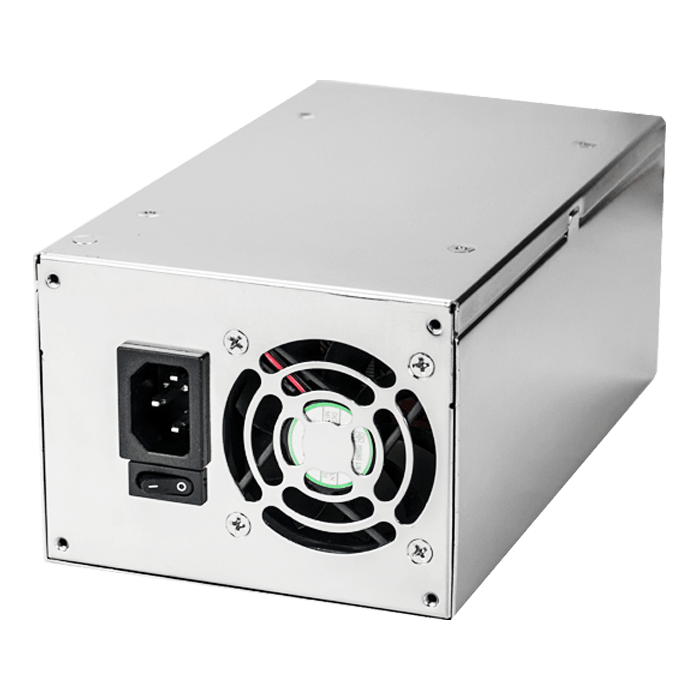

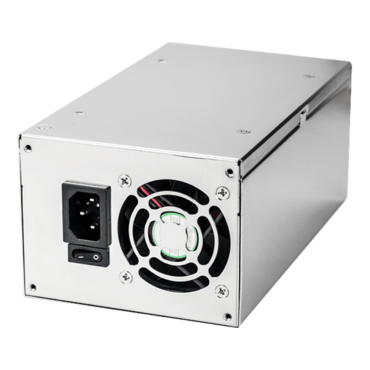

AP-U3ATX70FEP8, 80 PLUS Bronze 700W, Single, 3U Power Supply
Quantity:
- SKU: 7994763
- Manufacturer: ATHENA POWER
- MPN: AP-U3ATX70FEP8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$157.54
| Model | AP-U3ATX70FEP8 | ||||||||||||||
| Product Category | 3U | ||||||||||||||
| Output Power | 700 Watts | ||||||||||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less tdan 20 ms | ||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin x 1
P4-12V 4Pin x 1
EPS 12V 8 Pin x 2
PCIE 6 Pin x 2
PCIE 6+2 Pin x 2
SATA 15 Pin x 6
Molex 4 Pin x 2
Floppy 4 Pin x 1
|
||||||||||||||
| Dimension | (L x W x H) 200 x 115.5 x 86.2 mm/ 7.8 x 4.5 x 3.3 in | ||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
