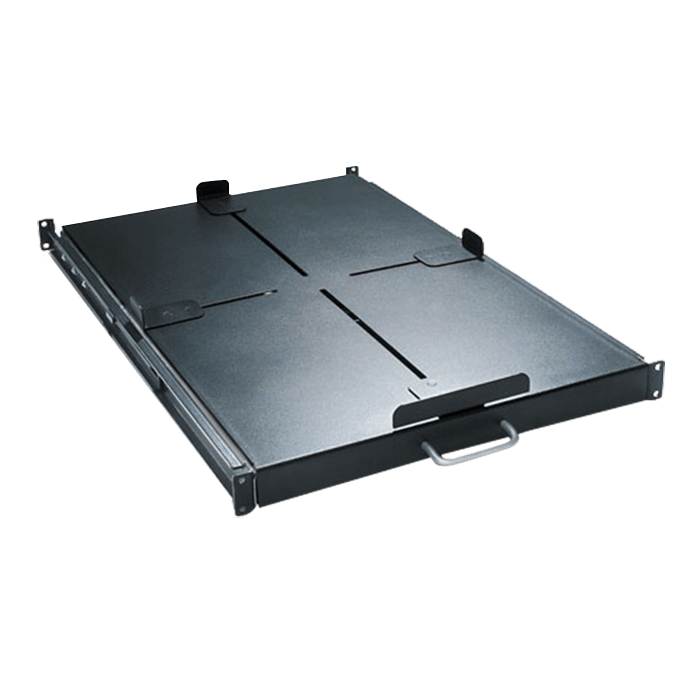

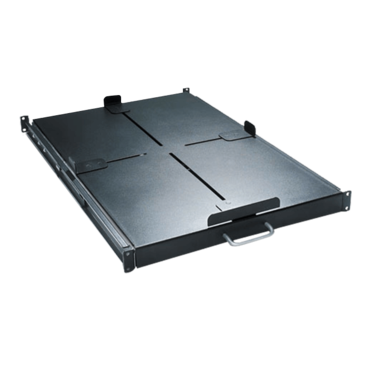

AR8128BLK Sliding Rackmount Shelf, 200lbs, Black

  • SKU: 54242
  • Manufacturer: APC
  • MPN: AR8128BLK
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

Sliding Shelf 200lbs/91kg Black

Sliding shelf to enable the mounting of tower units, monitors, and other equipment into the rack environment.

AR8128BLK Features & Benefits

Adjustable mounting depth Vertical mounting rails are adjustable for equipment with various mounting depths.
Occupies 1U of rack space Conserve valuable rack space in the data center.
Ventilated Perforated front and rear doors provide ample ventilation for servers and networking equipment.
4 post mounting
Full extension



Net Weight 35.00 lbs. (15.91 kg)
Maximum Height 1.75 inches (44 mm)
Maximum Width 17.50 inches (445 mm)
Maximum Depth 28.00 inches (711 mm)
Shipping Weight 47.00 lbs. (21.36 kg)
Shipping Height 8.50 inches (216 mm)
Shipping Width 36.50 inches (927 mm)
Shipping Depth 25.50 inches (648 mm)
Weight Capacity (static load) 200.00 lbs. (90.91 kg)
Minimum Mounting Depth 28.00 inches (711 mm)
Maximum Mounting Depth 40.00 inches (1016 mm)
Rack Height 1U
Color Black


Standard Warranty 2 years repair or replace
Standards EIA-310-D


  • Qty 4 - Retaining clips
  • Installation guide
  • Mounting Hardware
