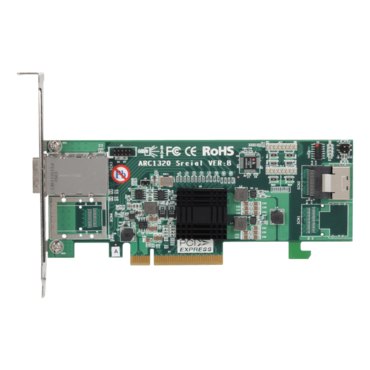

ARC-1320-4i4x, SAS 6Gb/s, 8-Port, PCIe 2.0 x8, Host Bus Adapter, 1x Internal MiniSAS (SFF-8087) Cables included

SKU: 5981941
Manufacturer: ARECA
MPN: ARC-1320-4i4X
Availability: LOW STOCK

Price

$284.62

ARC-1320-4i4x, SAS 6Gb/s, 8-Port, PCIe 2.0 x8, Host Bus Adapter, 1x Internal MiniSAS (SFF-8087) Cables included

ARC-1320 series host adapters provide ablazing-fast storage connectivity solution with enhanced reliability and performance and a wide variety of internal and external connector configurations to support any application and tiered storage solution. The SAS host adapters enable large-scale direct attach storage (DAS) arrays through external 6Gb/s ports, driving up to 128 end-point devices for SFF-8088 connector. With connectivity options including 8-internal ports, 4-internal/4-external ports, 8-external ports, and 16-internal/8-external ports, ARC-1320 series 6Gb/s host adapters are ideal for large capacity external server storage RAID and no-RAID enclosure.

1 x SFF-8087 mini-SAS Internal Connectors
1 x SFF-8088 mini-SAS External Connectors
Up to 6Gb/s

6Gb/s SAS PCIe 2.0 Host Adapter
Model Name	ARC-1320-4i4x	ARC-1320ix-16
Host Bus Type	PCIe 2.0 x8 Lanes
RAID Level	N/A
Form Factor	MD2 Low Profile	Low Profile
Drives Support	128 X 3Gb/s and 6Gb/s SAS/SATA
Internal Connector	1 x Mini SAS (SFF-8088)	4 x Mini SAS (SFF-8087)
External Connector	1 x Mini SAS (SFF-8087) )	2 x Mini SAS (SFF-8088)
Direct Attach	Yes	No (Expander onboard)
Hardware Specification	PCIe x8 lane 2.0 bus ( x8, x4, and x1 lane widths) Up to 6Gb/s transfer rates per SAS port Support 1.5, 3.0 and 6 Gb/s SAS and SATA link rates Support a maximum 128 SAS/SATA devices using SAS expander Available in a low-profile form factor Low-profile bracket BIOS PnP(plug and play) and BBS(BIOS boot specification) support Legacy BIOS and EFI support RoHS compliant
Serial Attached SCSI (SAS) 6Gb/s	Serial Attached SCSI (SAS-2.0) compliant Supports wide port (Any combination of x1, x2, and 4x) Supports Serial SCSI Protocol (SSP) Supports SAS Management Protocol (SMP) Supports Serial ATA Tunneling Protocol (STP) Hot-plug capability Staggered spin-up control
Serial ATA 6Gb/s (Direct Attach Only)	6Gb/s compliant with speed negotiation to 3Gb/s and 1.5 Gb/s Support Native Command Queuing (NCQ) Support Port Multiplier
Easy Management	Legacy BIOS setup utility Supports Command Line Interface (CLI) API library for customer to write monitor utility Enclosure management for internal port via LED header and SES/SGPIO Enclosure management for external port via SAS expander
Operating System	Windows 10/8/Server2012/7/2008/Vista/Server 2003/XP Linux (Red Hat and SuSE,...) XenServer illumos unRAID FreeBSD FreeNAS NAS4Free Solaris 10/11 Mac OS X 10.5.x or Higher (EFI BIOS for bootable)
