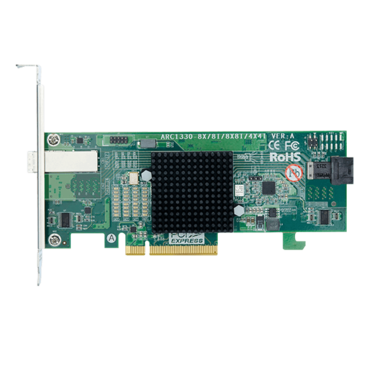

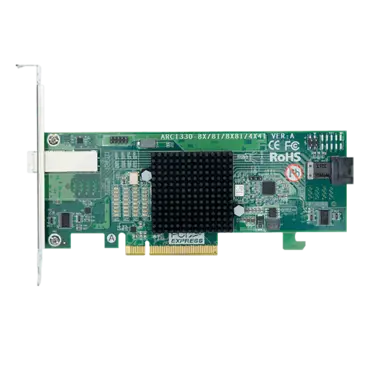

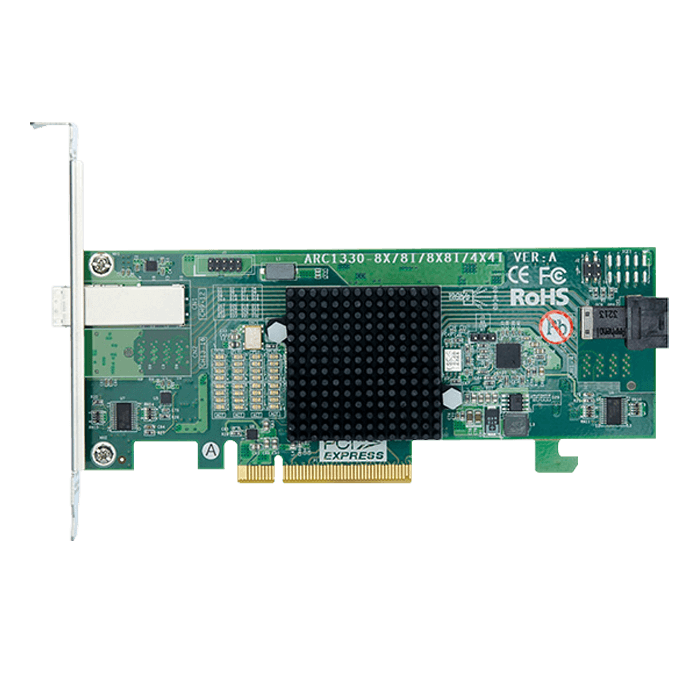

ARC-1330-4I4X, SAS 12Gb/s, 8-Port, PCIe 3.0 x8, Host Bus Adapter, Includes 1x Internal MiniSAS HD (SFF-8643) to SFF-8644 Cable

SKU: 13190315

Manufacturer: ARECA

MPN: ARC-1330-4I4X

Availability: Unknown


Price: $335.80
or as low as $11/month
Quantity:
ARC-1330 Series 6Gb/s SAS Host Adapter ARC-1330-4i4x
Host Bus Interface x8 lane PCI Express® 3.0
Ports 4 x internal & 4 x external
Drive Connectors 1 x SFF-8643 & 1 x SFF-8644
Data Transfer Rate Up to 12Gb/s per port
I/O Controller 88SE1485
Devices Support 128 X 3Gb/s, 6Gb/s and 12Gb/s SAS/SATA
Cable Support Passive Copper
Physical Dimensions MD2-Low Profile: 167(L) X 64(H) mm
Power Dissipation Typical: 7.5W
Operating Temperature 0 °C to 60 °C with 200 LFM airflow
Operating Humidity 10% to 85%, non-condensing
Brackets Full height and low profile
Key Features
  • Connects to SAS/SATA HDDs, solid state driver (SSDs) and removable media (DAS/JBOD)
  • Support a maximum 128 SAS/SATA devices using SAS expander
  • Serial Attached SCSI (SAS-3.0) compliant
  • Hot-plug capability
  • Support staggered spin-up, hot-plug and Native Command Queuing (NCQ)
  • Support port multiplier
  • Support ATA-8 microcode download for upgrading SATA disk drive firmware
  • Support SES microcode download for upgrading enclosure expander firmware
