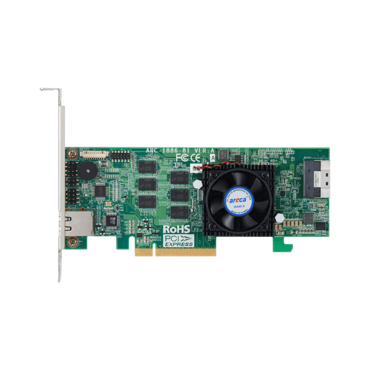

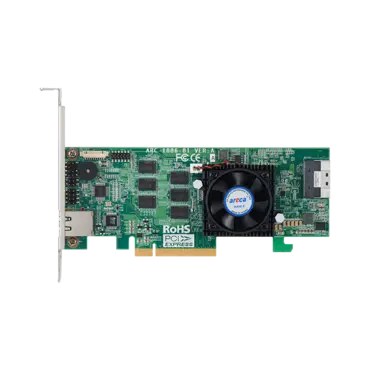

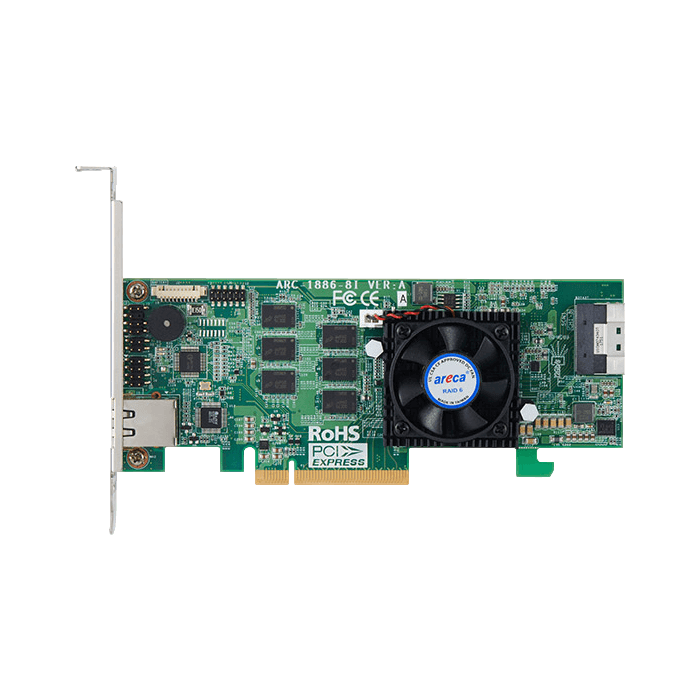

ARC-1886-8i, SAS 12Gb/s, 8-Port internal (1x SFF-8654), PCIe 4.0 x8, Controller with 8GB DDR4-2666 ECC, No Cables

  • SKU: 14613235
  • Manufacturer: ARECA
  • MPN: ARC-1886-8I
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Model ARC-1886-8I
Physical Dimensions Low Profile: 167.65(L) x 64.4(H) mm
Ports 8 x internal
Drive Connectors 1 x SFF-8654 [x8]
Host Bus Interface 8-Lane PCI Express® 4.0
I/O Processor Tri-Mode Dual Core ARM A15 1.6GHz ROC
Cache Memory 8GB on-board DDR4-2666 SDRAM with ECC Protection
Data Transfer Rate Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port
Drive Support
  • Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander
  • Up to 32 NVMe drives through the PCIe switches
Power Consumption Approximately 12 Watts
Operating Temperature 0 °C to 60 °C
Operating Humidity 10% to 85%, non-condensing
Cache Protection ARC-1886-CBM
