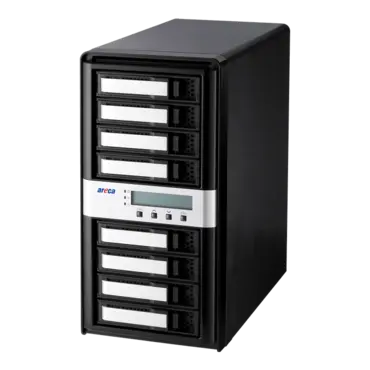

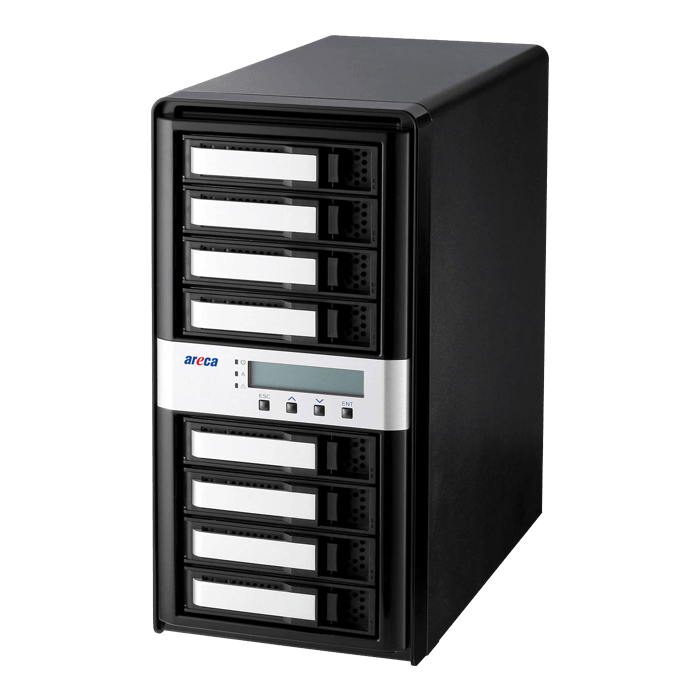

ARC-4038-8, 8-bays, 12Gb/s SAS/SATA Tower JBOD Enclosure

  • SKU: 12886341
  • Manufacturer: ARECA
  • MPN: ARC-4038-8
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
  • Four 12Gb/s SFF-8644 and expansion connections
  • One 6Gb/s SFF-8088 SAS host (only for 8-bays enclosure)
  • LED activity/status in each drive carrier
  • Daisy chain capacity expansion for additional ARC-4038
  • Plug & Play add capacity without shutting down
  • Support CLI for configuration and environmental information
12Gb/s SAS Tower JBOD Enclosure
Form Factor Desktop 8-Bay
Internal SAS Ports 6
Embedded Processor ARM Cortex-R4 processor
Data Transfer Rate Up to 12Gb/s per port

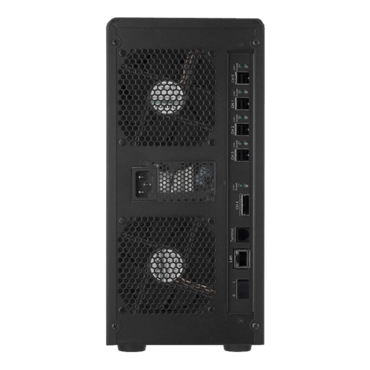

I/O Connection 4 x SFF-8644 + 1 x SFF-8088
Management 1 x 6-pin UART RJ-11 connector / 1 x RJ-45 LAN connector

  • In-band SAS port
  • Out-of-band RS232 serial port
  • CLI through RS232 serial port
  • Alarm Buzzer
  • External SAS port LED Indicators
Cooling Fan 2 x 2700rpm
Power Supply 270W
Operating Temperature 0 °C to 40 °C
Operating Humidity 10% to 80%, non-condensing
Regulatory Certification CE, FCC
Physical Dimensions
(H x W x D)
5.7 x 11.8 x 11.4 in
(146 x 302 x 290 mm)
Weight 14.9 lbs / 6.8 Kg
