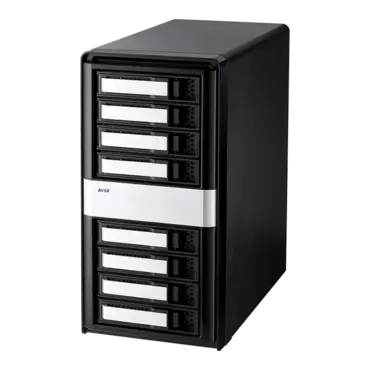

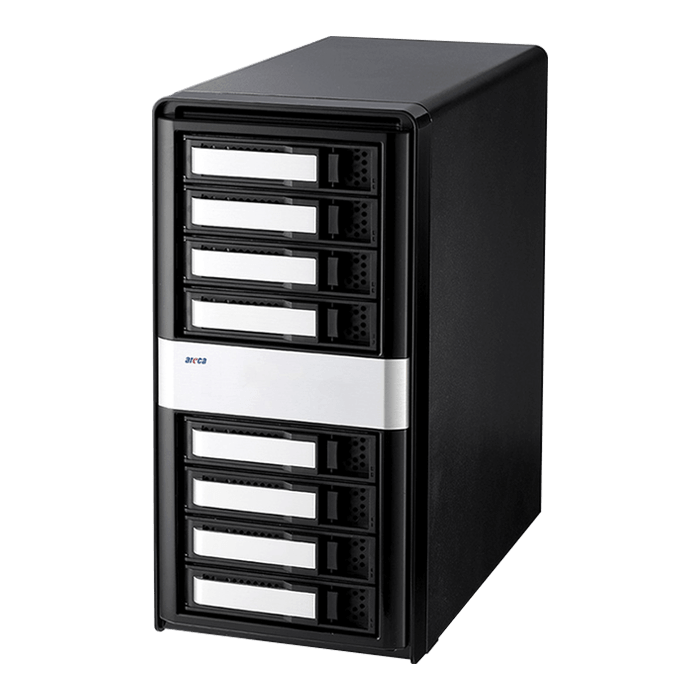

ARC-4038ML, 8-bays, 12Gb/s SAS/SATA Tower JBOD Enclosure
Quantity:
- SKU: 13483206
- Manufacturer: ARECA
- MPN: ARC-4038ML
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$882.29
- Cable-free 12Gb/s re-driver SAS/SATA backplane design for 8 removable drive trays
- Simple serial bus connection for fault/activity LED (only with Areca external RAID adapter)
- Compatible with SAS host bus adapter and SAS RAID controllers
- Built-in intelligent cooling fans for self-contained ventilation and buzzer alarm
- Can be used with 2.5" drives without the use of converters
- LED indicators for fault and Activity/power on each HDD tray
| ARC-4038ML | |
| Host Interface | 2 x SFF-8644 |
| Backplane Connection | Cable-less |
| Serial Bus Connection | Combine with ARC- 1883x |
| Disk Interface | 8 x 12Gb/s SAS/SATA |
| Cooling Fan | 2 x 2700rpm / 0.135A Brushless Fan |
| Power Supply/In/out | 220W / 90-265V AC/ +12V/16A, +5V/16A, +3.3V/14A |
|
Physical Dimensions (H x W x D) |
5.7 x 11.8 x 11.4 in (146 x 302 x 290 mm) |
| Weight | 14.9 lbs / 6.8 Kg |
| PCIe 3.0 External 12Gb/s SAS RAID Adapter Comparison | |
| Model name | ARC-1883x/1226-8x |
| Host Bus Type | PCIe 3.0 x 8 Lanes |
| I/O Processor | Dual Core RAID-on-Chip (ROC) 1.2 GHz Processor |
| Driver Connector | 2 x SFF-8644 |
| On-Board Cache | 2GB on-board DDR3-1866 SDRAM with ECC |
| Management Port |
In-Band: PCIe Out-of-Band: BIOS, Lan and LCD (optional) |
| RAID Level | 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk, JBOD |
| Enclosure Ready | External Serial Bus |
| Form Factor | 64.4(H) x 169.5(L) mm |
