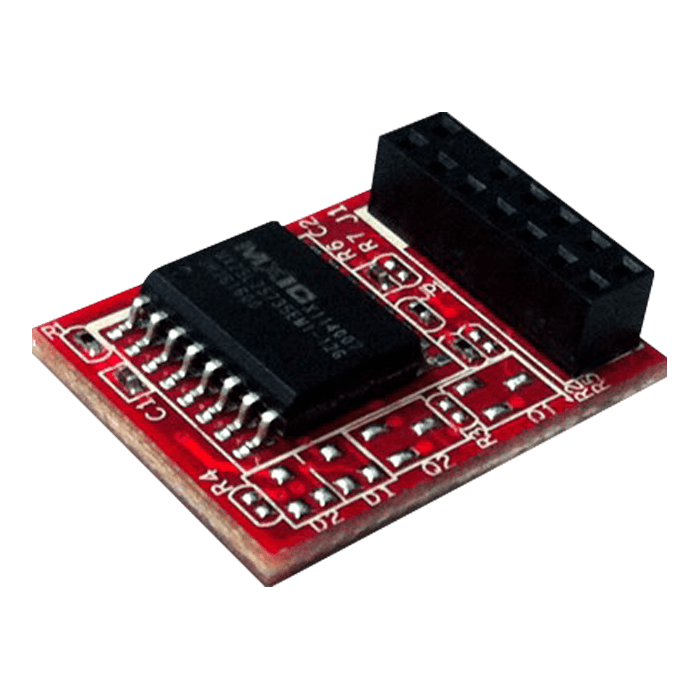

ASMB7-iKVMI PMI 2.0 Remote Management Upgrade Kit w/ KVM over LAN

SKU: 7898009

Manufacturer: ASUS

MPN: ASMB7-iKVM

Availability: Low Stock


Price: $66.69
or as low as $2/month
Quantity:

ASUS ASMB7-iKVM is an effective remote server management chip that is IPMI 2.0 compliant and provides the OS-independent and cross-platform interface for monitoring the server system such as temperature, voltage, and Fan status etc. MIS can be informed of the server working status from anywhere, anytime via real-time event notification.

ASMB7-IKVM
Effective Management Upgrade Kit with KVM (Keyboard, Video, Mouse)

ASUS ASMB7-iKVM is an effective remote server management chip that is IPMI 2.0 compliant and provides the OS-independent and cross-platform interface for monitoring the server system such as temperature, voltage, and Fan status etc. MIS can be informed of the server working status from anywhere, anytime via real-time event notification.

With simple steps, MIS is able to control servers by functions keys and remote server screen to accomplish KVM (Keyboard, Video, Mouse) over LAN, which is based on BIOS-level access and keeps working to provide around-the-clock remote monitor and diagnosis through GUI (Web-based Graphical User Interface) even the server OS is down.

Features:

Remote Power Control

The ASMB7-iKVM module offers advanced server management functions including “remote OS installation”, "remote power on/off/reset", "remote control", “remote hardware health monitoring” and “system event log”. Through the enhanced data encryption (in Advanced Encryption Standard), the internet security can be protected.

Multiple Virtual Media over LAN

Multiple Virtual Media over LAN allows administrators to share the data saved in a local drive (simultaneous floppy, Hard disk or USB and CD or DVD redirection) to target servers, which provide a way for easy maintenance and simplify OS deployment process. At the same time, the KVM function also enables faster troubleshooting than before by fixing server problems from wherever you are and therefore reduces system downtime and operation cost.

Network Bonding support

Network bonding could support automatic failover witch switch over automatically to a redundant network when dedicated LAN failed.

With ASMB7-iKVM, MIS has the most quick and efficient way to recover the system in service and improve the system's availability significantly by the complete remote management tools.

Specifications:

Chipset Aspeed 2300
Internal RAM 224 MB for system
32 MB for video
Internal ROM 32 MB
Timers 32-bit Watchdog Timer
Features IPMI 2.0-compliant and supports
KVM over LAN
Web-based user interface (remote management)
Virtual media
Network Bonding support
Form Factor 22 mm x 17 mm

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
