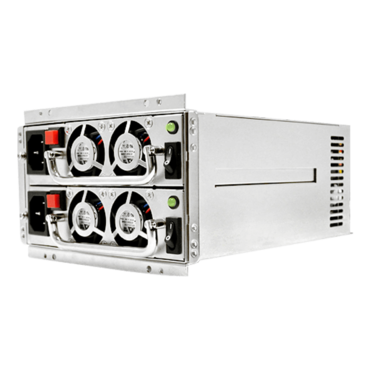

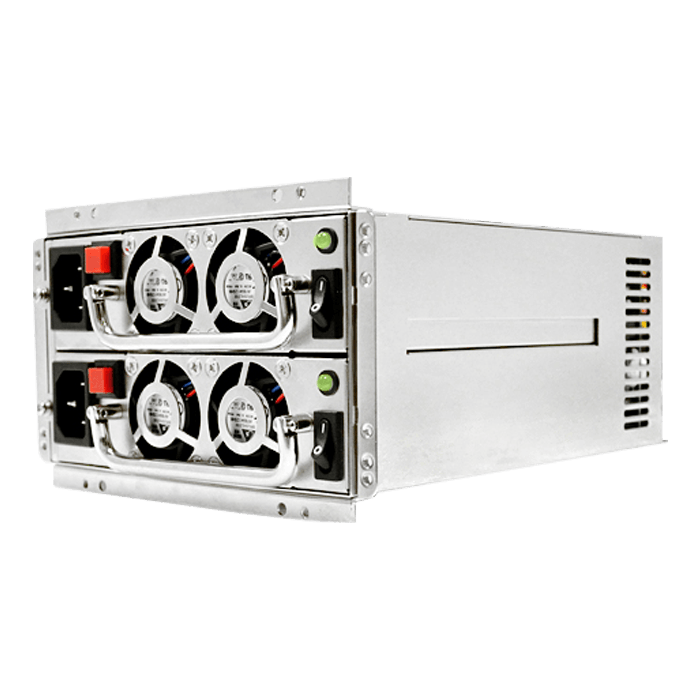

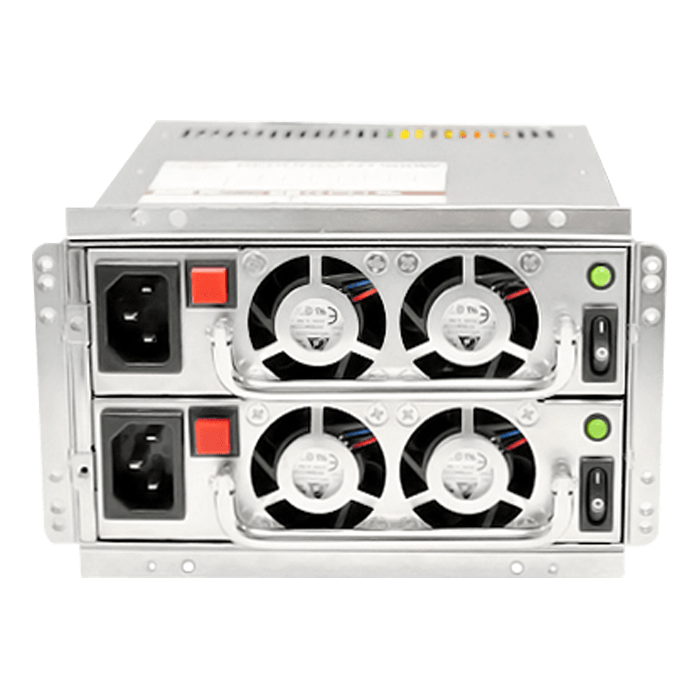

ATLAS AP-RRP4ATX6508, 80 PLUS Standard 500W, Redundant, 2U Power Supply
- SKU: 3708956
- Manufacturer: ATHENA POWER
- MPN: AP-RRP4ATX6508
- Availability: TEMPORARILY OUT OF STOCK
| Model | AP-RRP4ATX6508 | ||||||||||||||||||
| Product Category | Redundant | ||||||||||||||||||
| Product Sub Category | ATLAS Series | ||||||||||||||||||
| Output Power | 500 Watts | ||||||||||||||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||||
| Rise time | Less tdan 20 ms | ||||||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||||||
| Output |
|
||||||||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 2
SATA 15 Pin x 6
Molex 4 Pin x 3
|
||||||||||||||||||
| Dimension | (L x W x H) 190 x 150 x 84 mm / 7.4 x 5.9 x 3.3 in | ||||||||||||||||||
| Weight | 9.00lb | ||||||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
