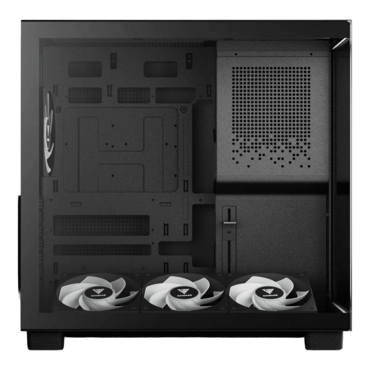

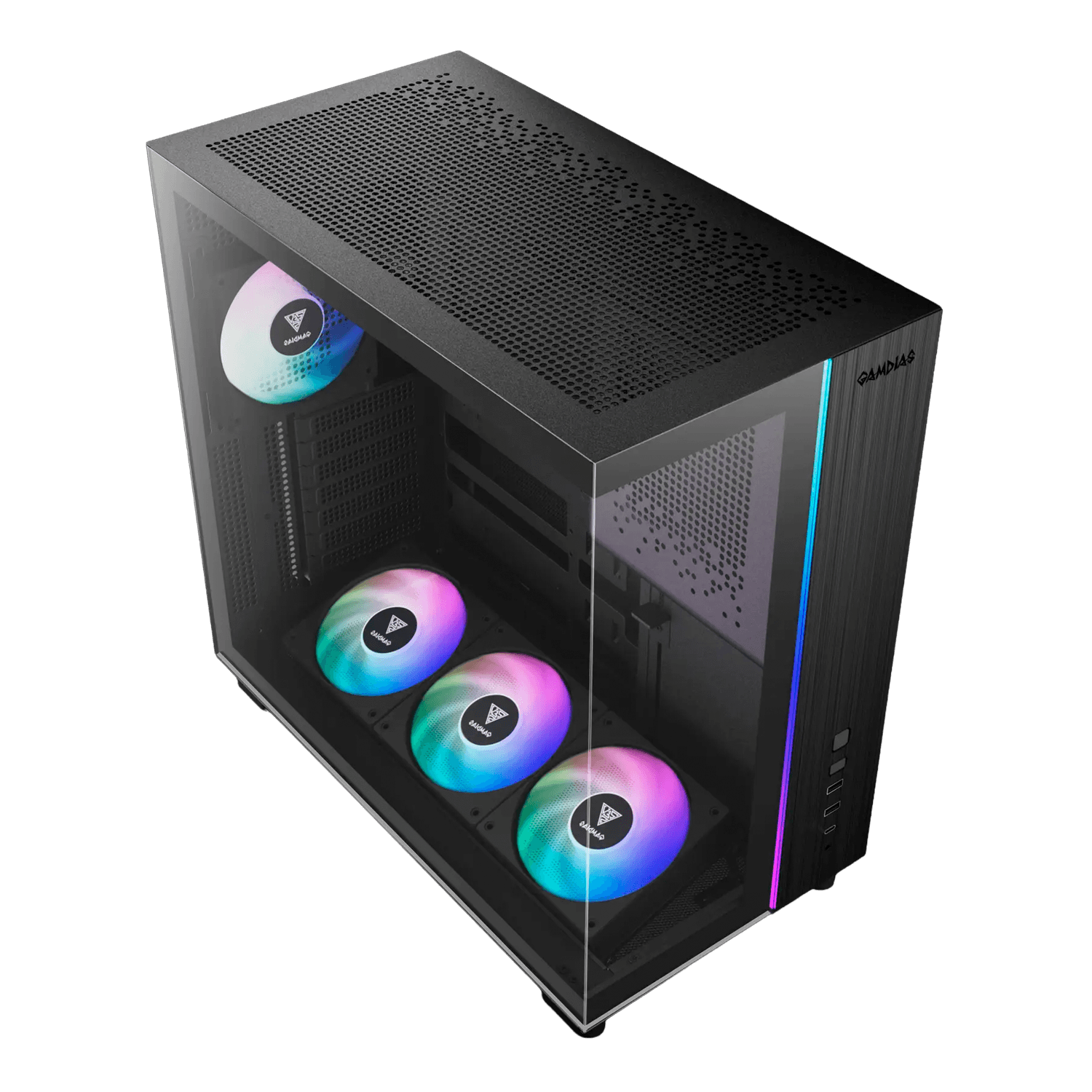

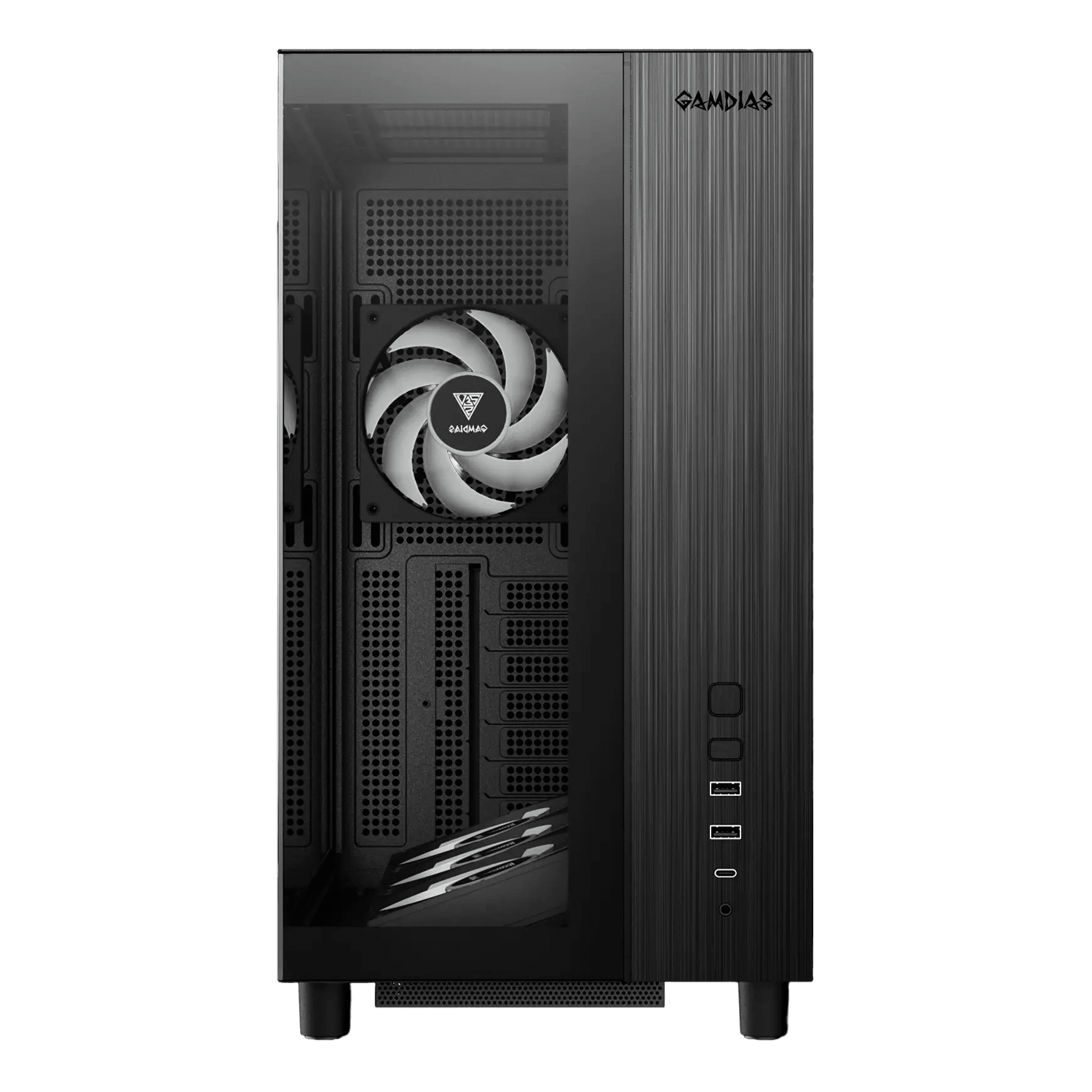

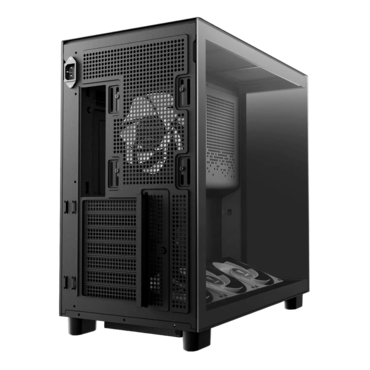

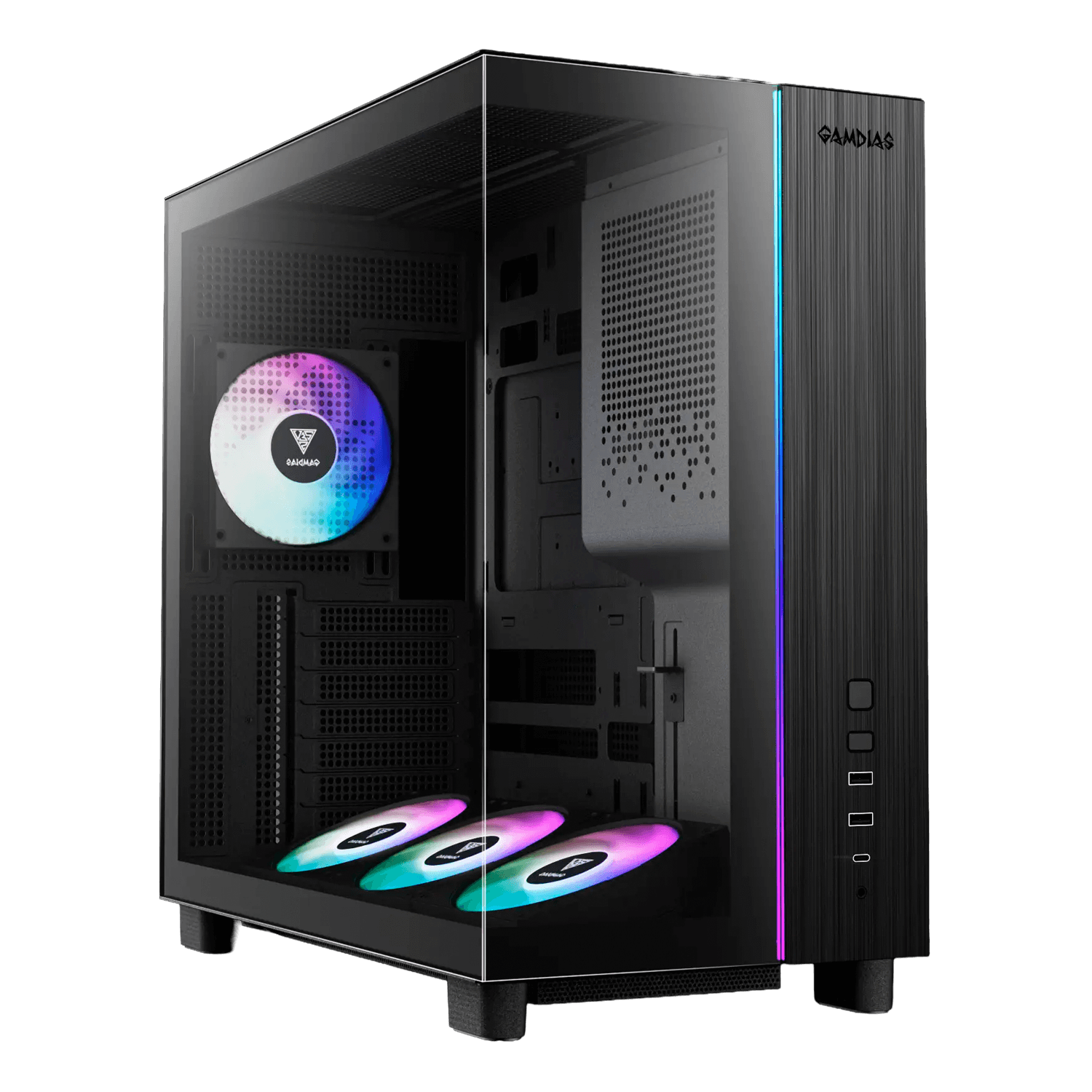

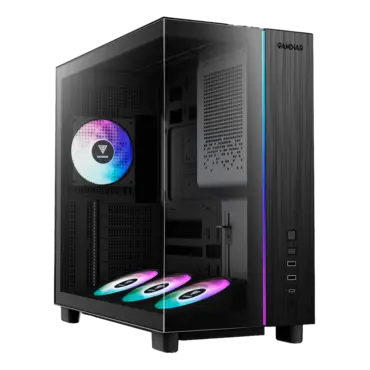

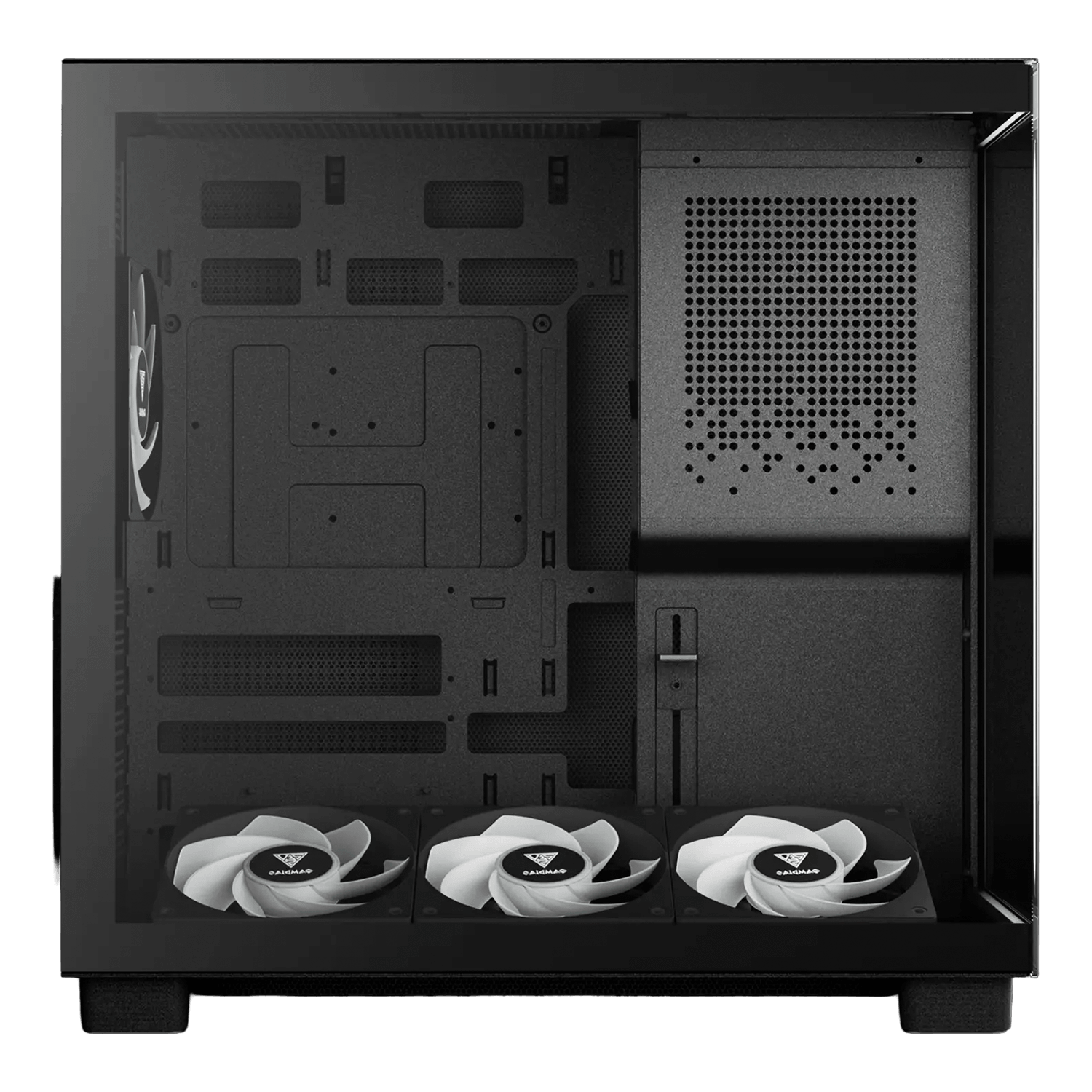

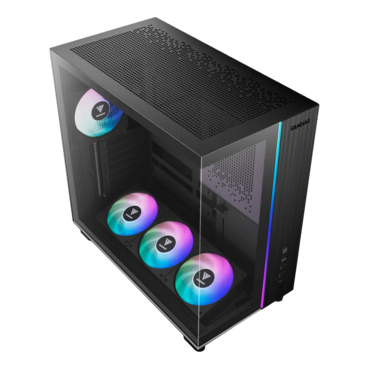

ATLAS M4, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 19922463
- Manufacturer: Gamdias
- MPN: ATLAS M4
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$92.34
- Seamless Tempered Glass Display
- 4 Built-in 120mm NOTUS M1 ARGB Fans
- Natural Chimney-Style Ventilation
- Front-Mounted PSU Design
- Adjustable Bottom Cooling System
- Modular Tool-free Installation
- Supports Connector-hidden Motherboards
- Fits Mini-ITX, Micro-ATX, and ATX motherboards
- Pre-Installed Anti-sag Bracket for GPU up to 425mm
- Gen 2 Type-C Port Ready
- Magnetic Dust Filter
| Model | ATLAS M4 |
| Case Type | MID Tower |
| MB Support | ATX, Micro-ATX, Mini-ITX |
| Synchronization | 5V 3-Pin Addressable Header |
| CASE Color | Black |
| Expansion Slots | 7 |
| Material | SPCC & ABS & Tempered glass |
| Window | Front, Left |
| Radiator Support | Top: 360mm / Rear: 120mm |
| Fan Support | Top: 3 x 120mm Rear: 1 x 120mm / 1 x 140mm Bottom: 3 x 120mm |
| Pre-installed Fans | Rear: 1 x 120mm PWM ARGB Fan Bottom: 3 x 120mm PWM ARGB Fans |
| Drive Bays | 1 x 3.5 + 1 x 2.5 or 2 x 2.5 |
| I/O Port | Type-C x 1, USB 3.0 x2, HD Audio x1, LED Control x1 |
| Clearance |
CPU cooler height limitation: 175mm VGA length limitation: 425mm PSU length limitation: 160mm |
| Dimension (L x W x H) | 430 x 235 x 434mm |
| Pre-installed Control BOX | 8 Ports Hub (4 port are used) |
| Note | Some PSUs may have compatibility issues depending on the AC inlet orientation; we recommend using a GAMDIAS PSU. |
