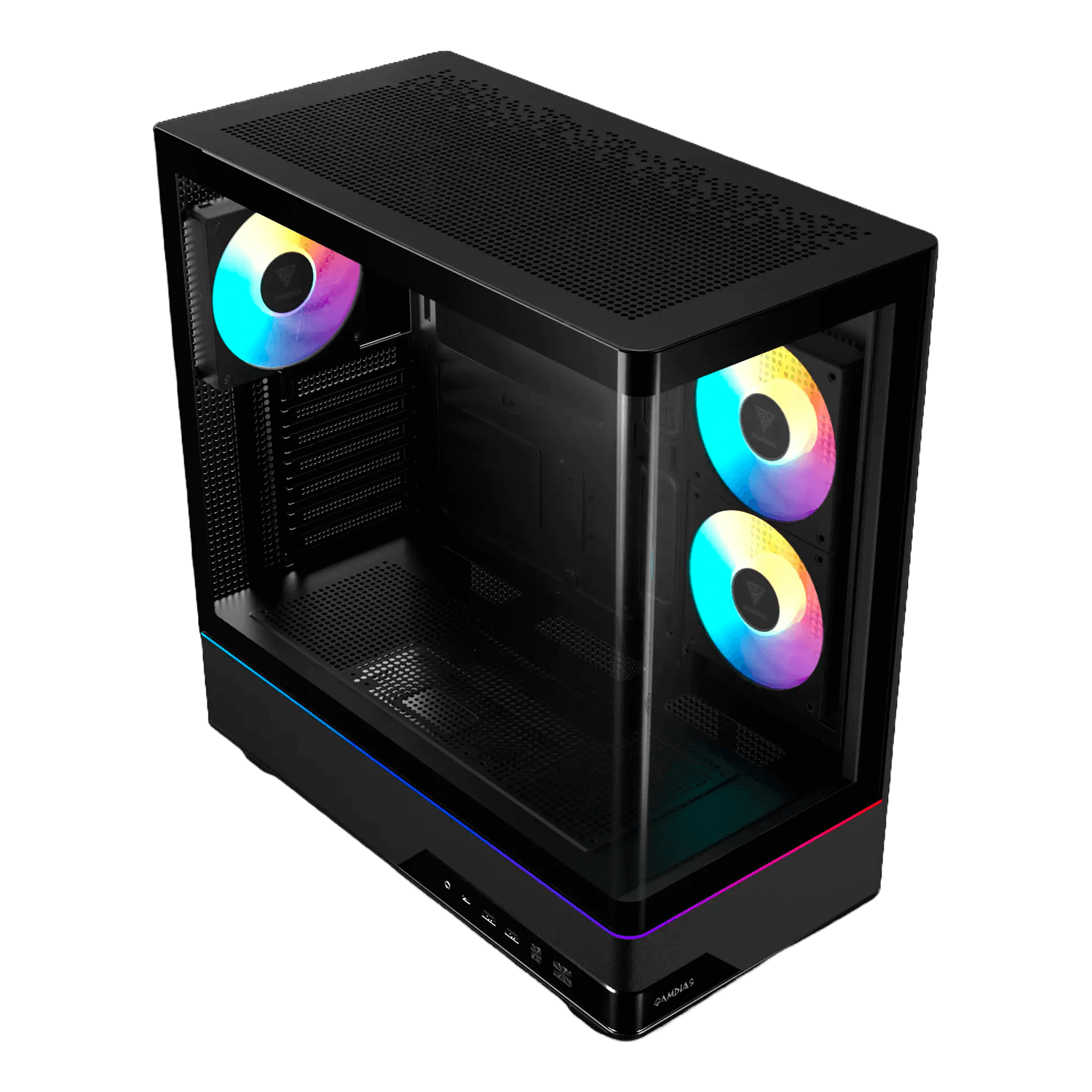

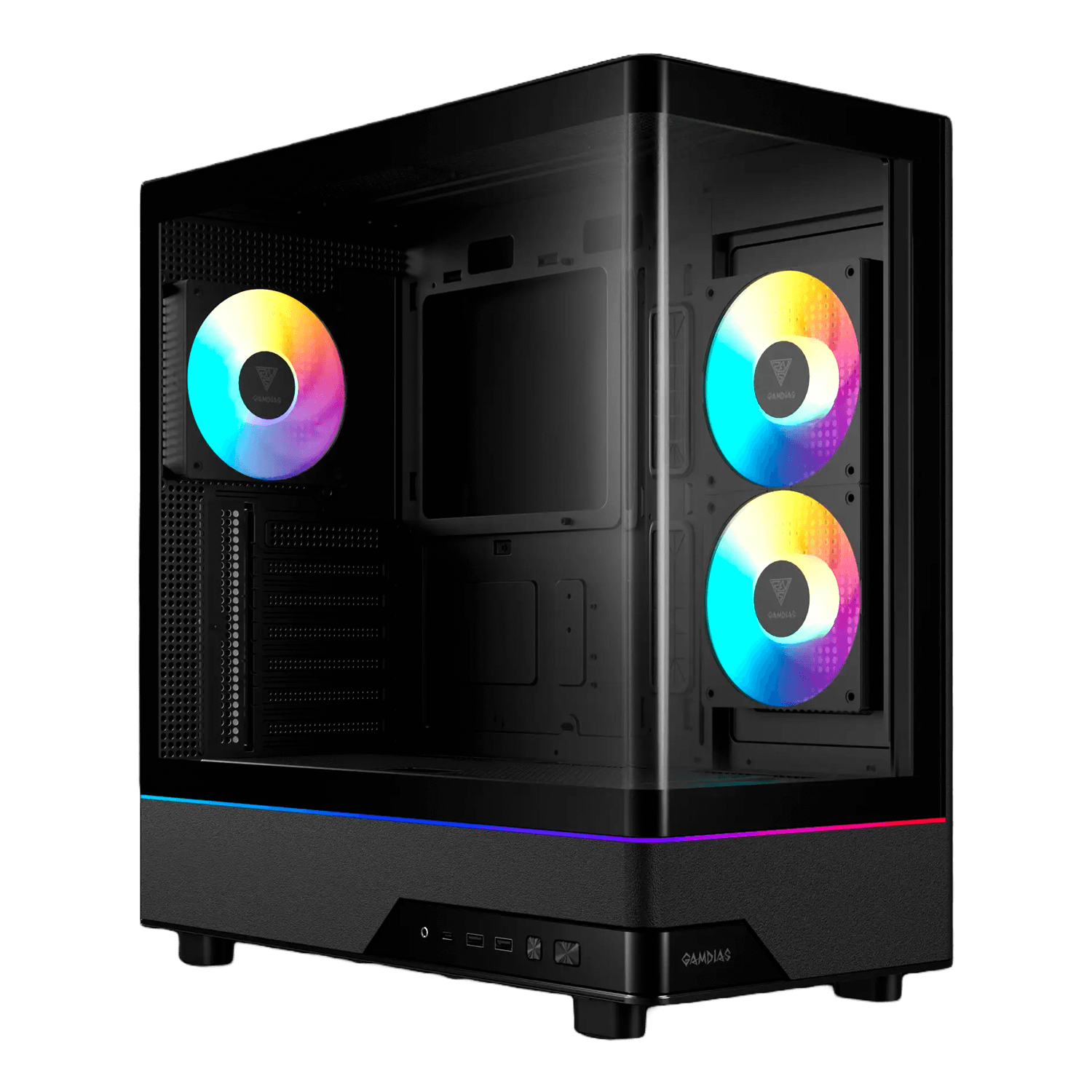

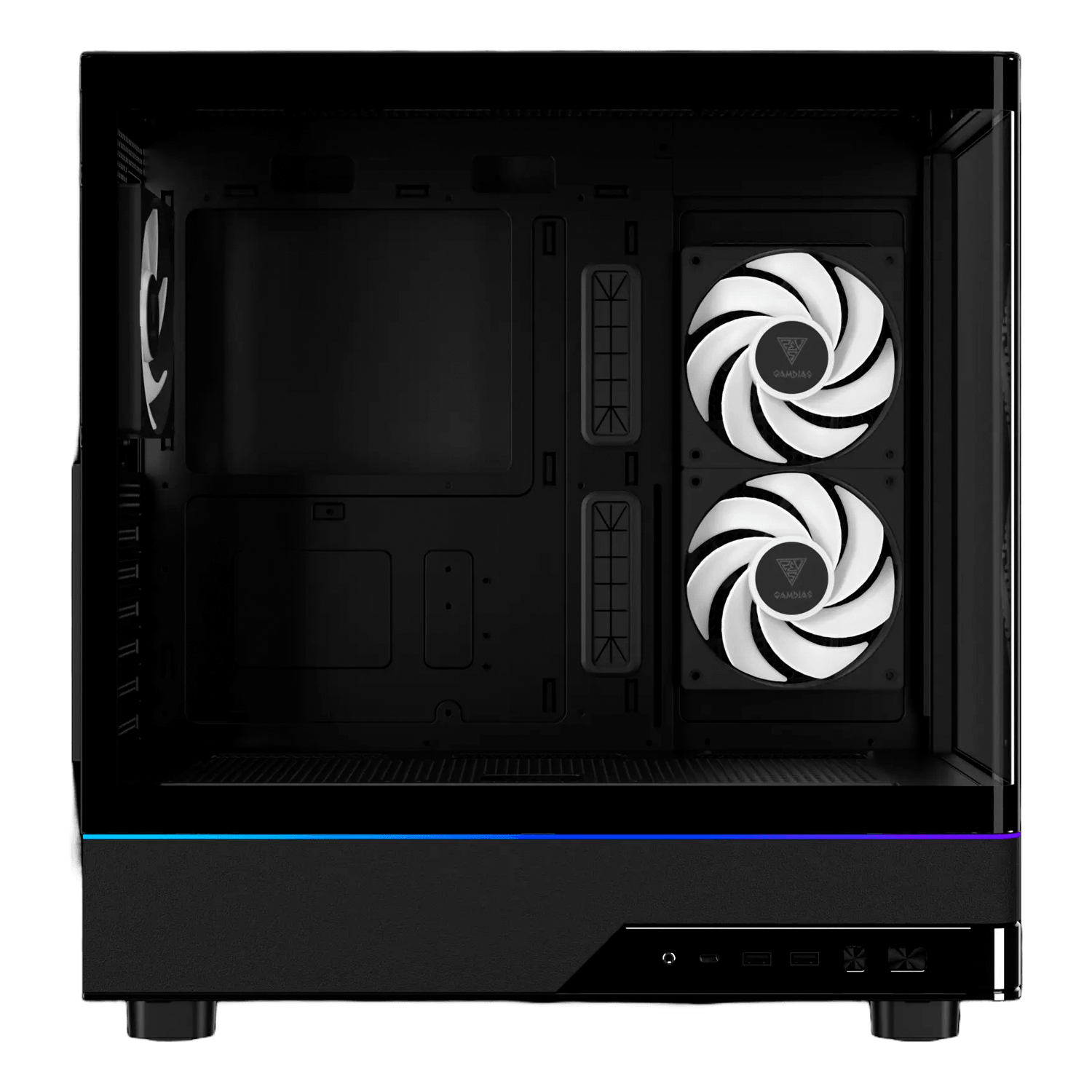

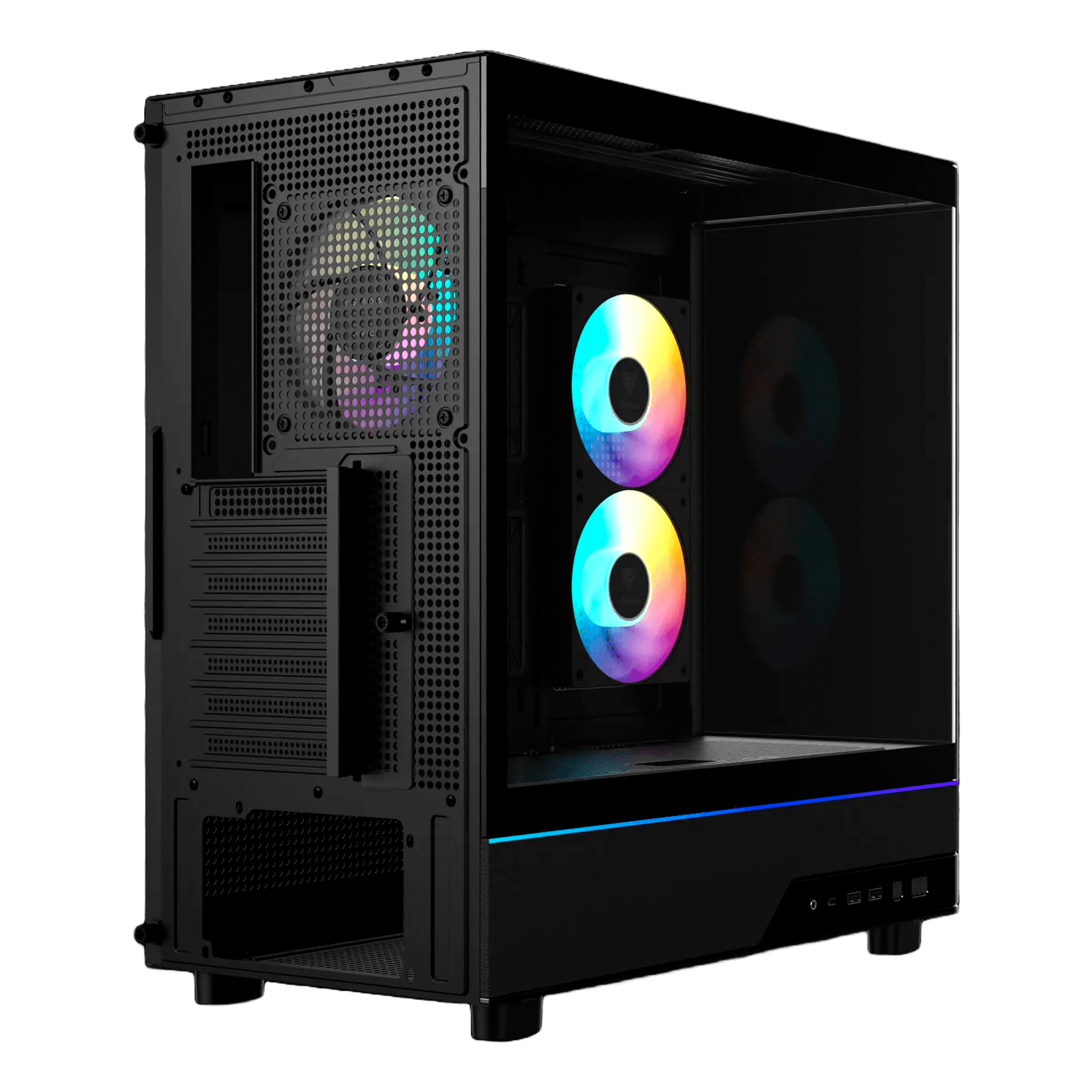

ATLAS M5 CG, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 20454921
- Manufacturer: Gamdias
- MPN: 16335-02JC3-30000-G
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- Seamless Tempered Glass Display
- L-shaped Curved Glass
- 3 Built-in 120mm NOTUS M1 ARGB Fans
- Perforated Air Vent PSU Chamber
- Fits Mini-ITX, Micro-ATX, and ATX motherboards
- Gen 2x2 Type-C Port Ready
- Compatible with 425mm GPU
- Magnetic Dust Filter
| Model | ATLAS M5 CG |
| Case Type | MID Tower |
| MB Support | ATX, Micro-ATX, Mini-ITX |
| Synchronization | 5V 3-Pin Addressable Header |
| CASE Color | Black |
| Expansion Slots | 7 |
| Material | SPCC & ABS & Tempered glass |
| Window | Front, Left |
| Radiator Support | Top: 360mm, 280mm Rear: 140mm, 120mm |
| Fan Support |
Top: 3 x 120mm, 2 x 140mm Side: 2 x 120mm Rear: 1 x 120mm, 1 x 140mm Bottom: 3 x 120mm |
| Pre-installed Fans | Side: 2 x 120mm PWM ARGB Fans Rear: 1 x 120mm PWM ARGB Fan |
| Drive Bays | 2 x 3.5" or 2 x 2.5"+1 x 3.5"(HDD Cage) 1 x 2.5" |
| I/O Port | Type-C x 1, USB 3.0 x2, HD Audio x1, LED Control x1 |
| Clearance |
CPU cooler height limitation: 175mm VGA length limitation: 425mm PSU length limitation: 220mm |
| Dimension (L x W x H) | 445 x 230 x 468mm |
