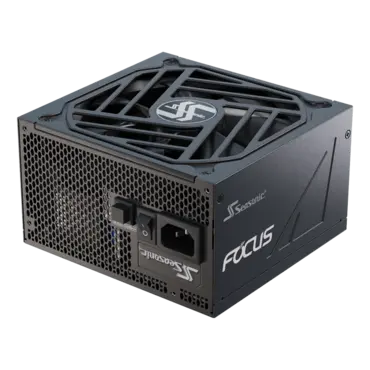

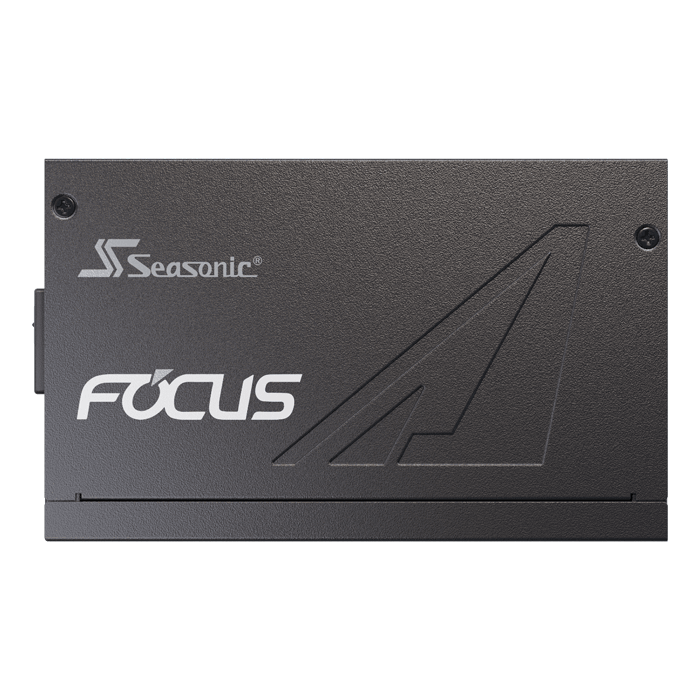

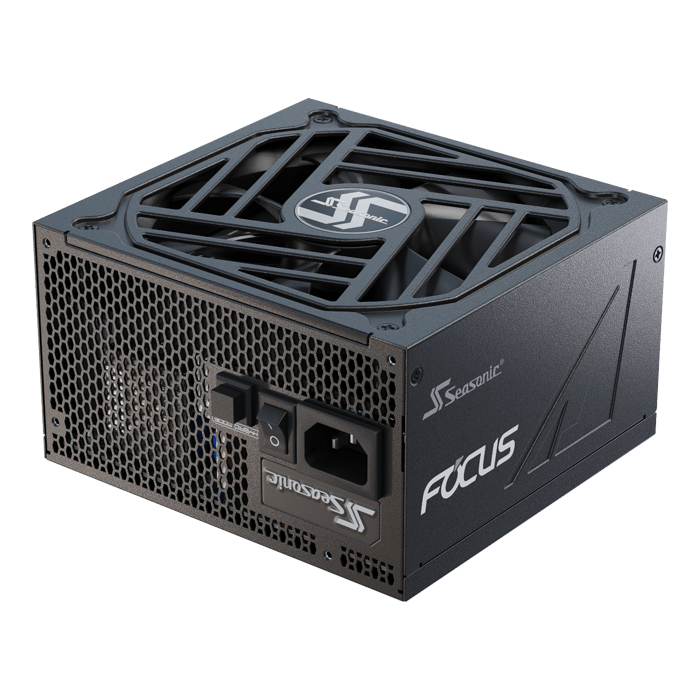

ATX3-FOCUS-GX-1000, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16402867
- Manufacturer: SEASONIC
- MPN: SSR-1000FX3
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$145.62
ATX3-FOCUS-GX-1000, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
- ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
- 80 PLUS® Gold certified
- Compact Size - 140 mm deep

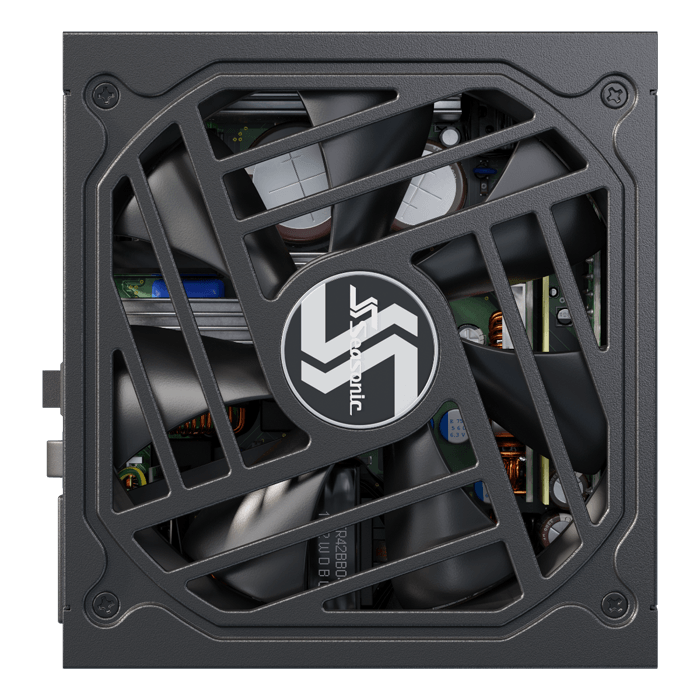

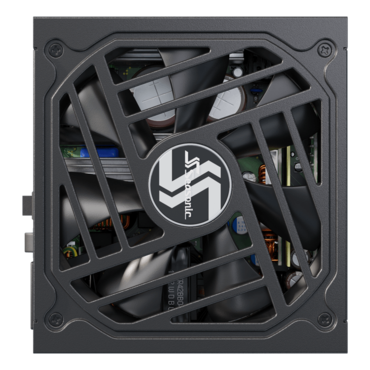

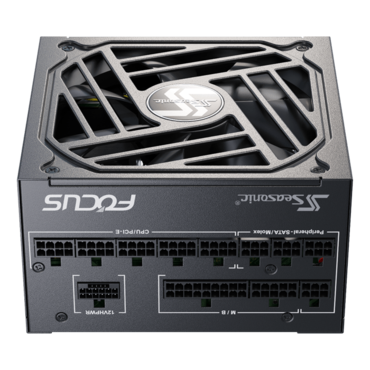

- Top-Quality 135 mm FDB Fan
- Digital Hybrid Fan Control
- S3FC - Fanless until 30 % load

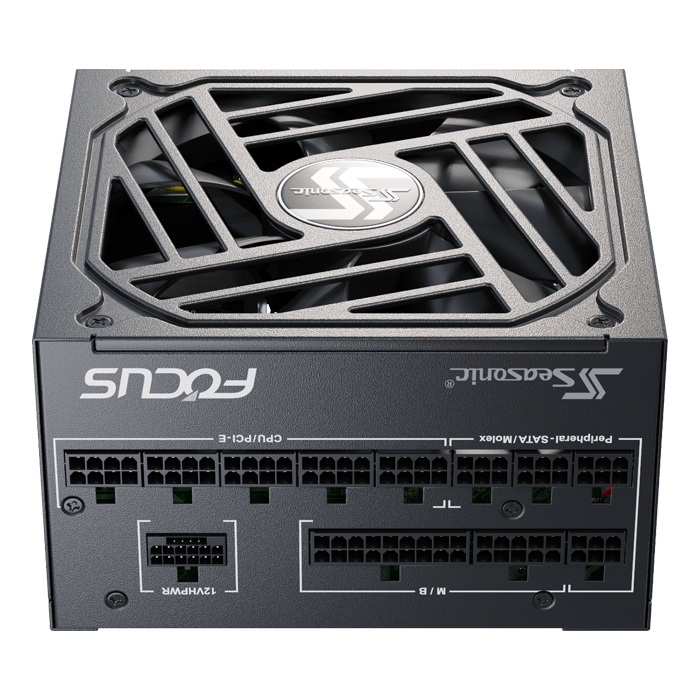

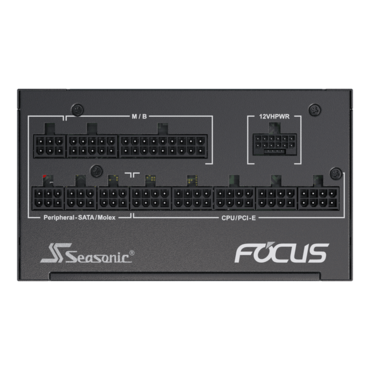

- Cable-free Connection Design
- Tight Voltage Regulation
- Gold plated connectors
- 10 years warranty
| Technical Specifications | |||||||
| 80PLUS ® | Gold | ||||||
| Cybenetics Efficiency Level | TBA | ||||||
| Cybenetics Noise Level | TBA | ||||||
| Form Factor | Intel ATX 12 V | ||||||
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | ||||||
| Fan Information | Fan Size | 135 mm | |||||
| Fan Control | S3FC - Fanless until 30 % load | ||||||
| Fan Bearing | Fluid Dynamic Bearing | ||||||
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | ||||||
| Cable Information | Modularity | Fully Modular | |||||
| Cable type | ndividual Black Cables with Braided Pattern | ||||||
| Electrical Features | Operating Temperature | 0 - 50 °C | |||||
| MTBF @ 25 °C, excl. fan | 100,000 hours | ||||||
| AC Input | Full Range | ||||||
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | ||||||
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | |||||
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | ||||||
| Warranty | 10 Years | ||||||
| Power Output | |||||||
| AC Input | Voltage: 100 V - 240 V | ||||||
| Current: 13 - 6.5 A | |||||||
| Frequency: 50 Hz - 60 Hz | |||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB | |
| Maximum Power | 25 A | 25 A | 83 A | 0.3 A | 3 A | ||
| 125 W | 996 W | 3.6 W | 15 W | ||||
| Total continuous power | 1000 W | ||||||
