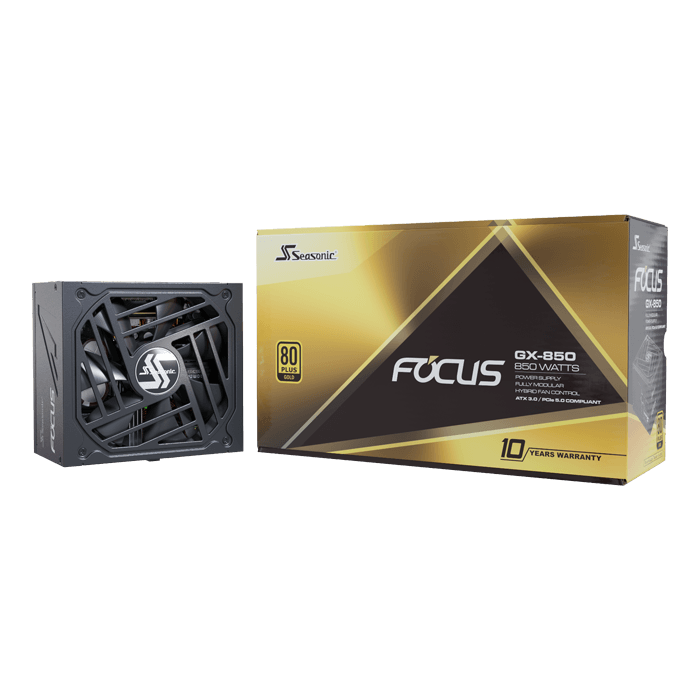

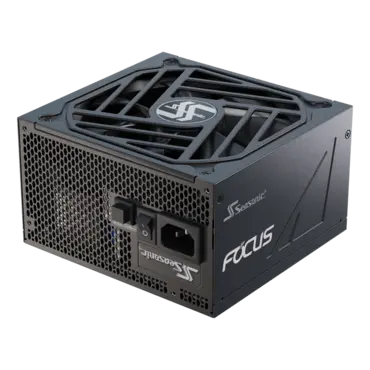

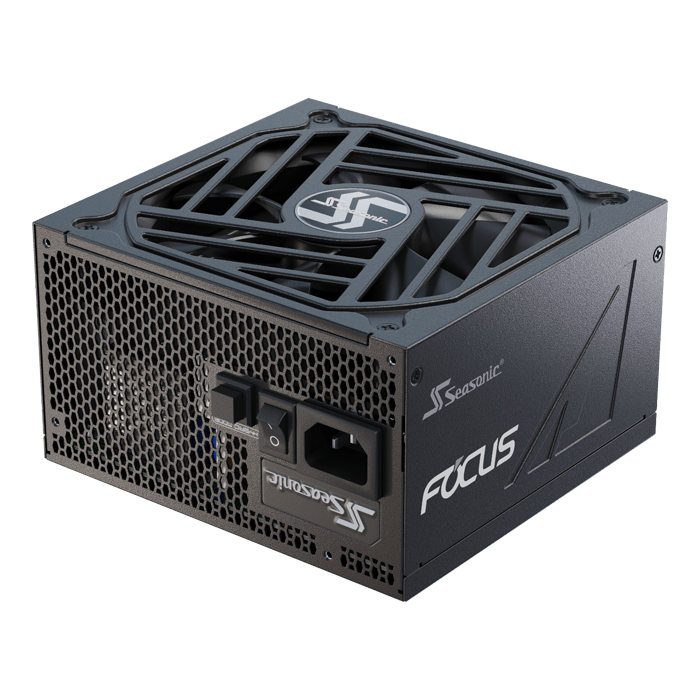

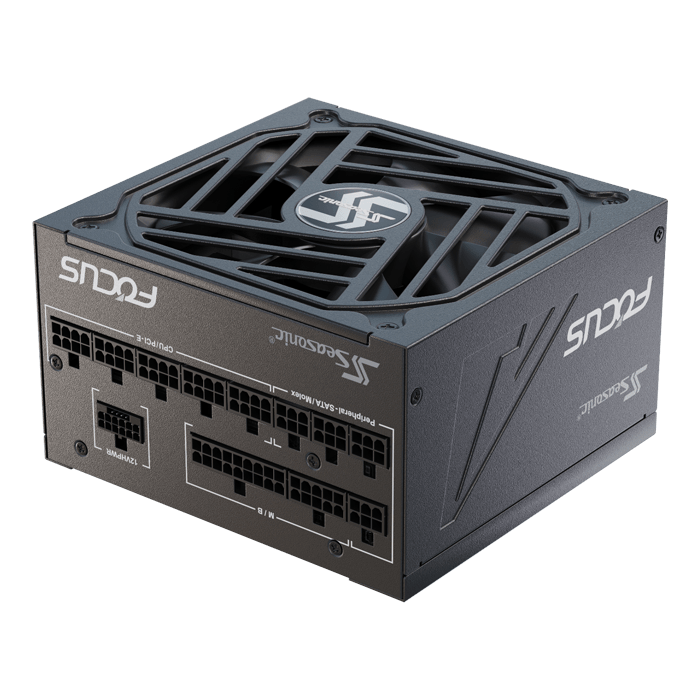

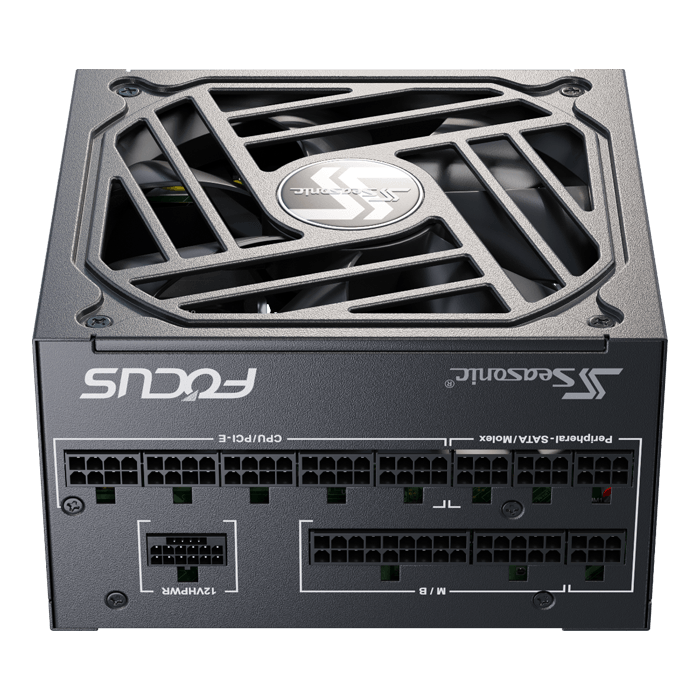

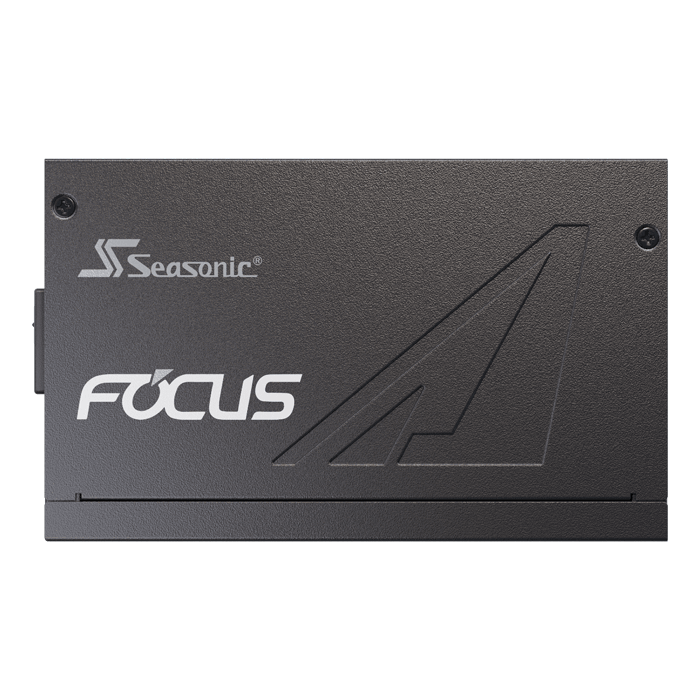

ATX3-FOCUS-GX-850, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 16402843
  • Manufacturer: SEASONIC
  • MPN: SSR-850FX3
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$133.96
Quantity:
ATX3-FOCUS-GX-850, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply

Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.

  • ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
  • 80 PLUS® Gold certified
  • Compact Size - 140 mm deep
  • Top-Quality 135 mm FDB Fan
  • Digital Hybrid Fan Control
  • S3FC - Fanless until 30 % load
  • Cable-free Connection Design
  • Tight Voltage Regulation
  • Gold plated connectors
  • 10 years warranty
Technical Specifications
80PLUS ® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)

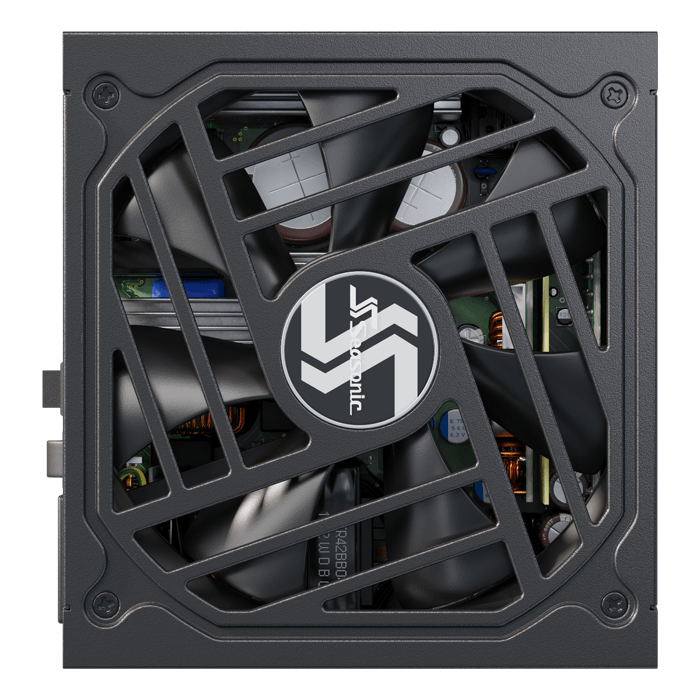

Fan Information Fan Size 135 mm
Fan Control S3FC - Fanless until 30 % load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

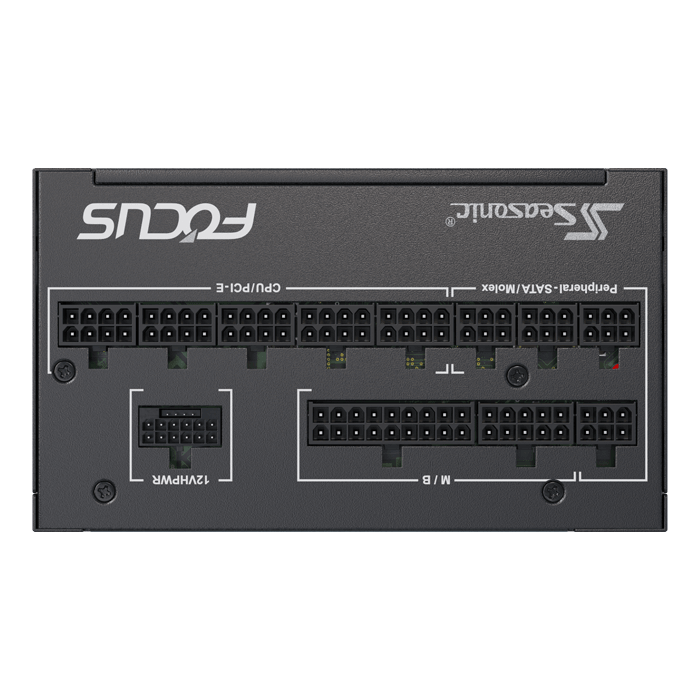

Cable Information Modularity Fully Modular
Cable type ndividual Black Cables with Braided Pattern
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 70 A 0.3 A 3 A
100 W 840 W 3.6 W 15 W
Total continuous power 850 W
