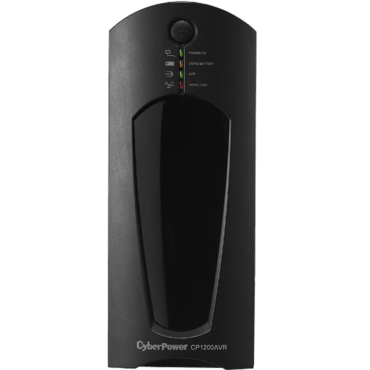

AVR CP1200AVR, 1200 VA/720 W, Simulated Sine Wave, Tower UPS
- SKU: 264769
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP1200AVR
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
The CyberPower AVR Series CP1200AVR uninterruptible power supply (UPS) safeguards mid- to upper-level office workstations, networks and home entertainment systems against surges, spikes, sags, and brownouts, protecting equipment and valuable data during a power outage. Its automatic voltage regulation (AVR) monitors incoming AC power and maintains a safe voltage level. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
The CP1200AVR unit has a capacity of 1200VA/720Watts, eight (8) NEMA 5-15R receptacles, widely-spaced to accommodate transformer-based plugs. Its sleek tower design allows for placement on the floor, inside a workstation cabinet, or directly on the desktop. This UPS has two (2) maintenance-free, user-replaceable 12V/8Ah batteries and offers connectivity via one (1) HID USB and one (1) DB9 serial port. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. PowerPanel® Personal Edition Smart Management software is included to monitor the vitals of the UPS and safely shut down the system in case of a power outage.
| General | |
|---|---|
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Qualified | Yes |
| Input | |
| Voltage | 90Vac - 140Vac |
| Frequency | 60Hz ± 3Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle |
| Cord Length | 6' |
| Output | |
| VA | 1,200 |
| Watts | 720 |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 60Hz |
| On Battery Waveform | Simulated Sine Wave |
| Outlets - Total | 8 |
| Outlets - Battery & Surge Protected | 4 |
| Outlets - Surge-Only Protected | 4 |
| Outlets - Widely Spaced | 1 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | 4ms |
| Battery | |
| Runtime at Half Load (min) | 12 |
| Runtime at Full Load (min) | 3 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/8AH |
| Replacement Battery | RB1280X2D |
| Battery Quantity | 2 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,080 Joules |
| Maximum Surge Current | 36,000 Amps |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| USB Port | Yes |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Management Cable | USB Cable |
| LED Indicators | Power On, Wiring Fault, Using Battery, AVR, Overload |
| Audible Alarms | On Battery, Low Battery, Overload |
| Software | PowerPanel® Personal Edition |
| Physical | |
| Form Factor | Tower |
| Dimensions (WxHxD) (in.) | 4 x 9.75 x 13.25 |
| Weight (lbs.) | 25.0 |
| Environmental | |
| Operating Temperature | 32°F to 95°F / 0°C to 35°C |
| Operating Relative Humidity | 0% - 95% non-condensing |
| Certifications | |
| Safety | UL1778, cUL 107.1, FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $375,000 |
