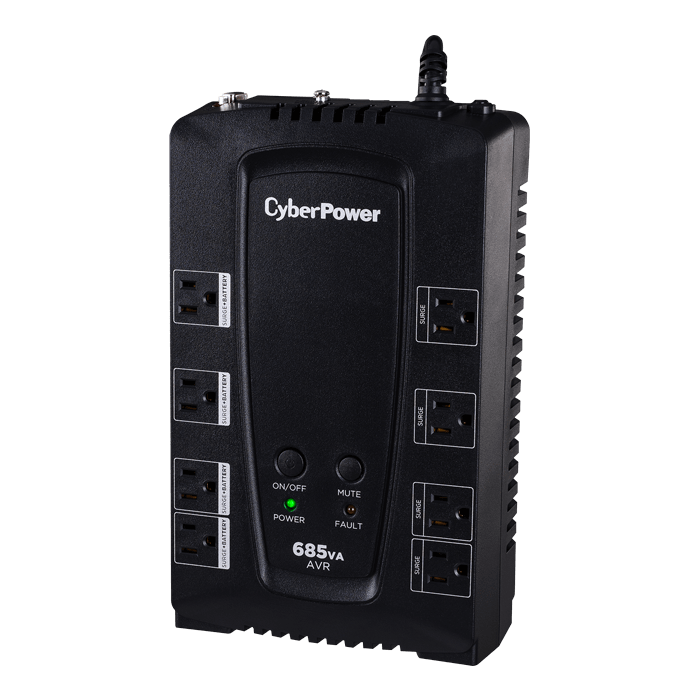

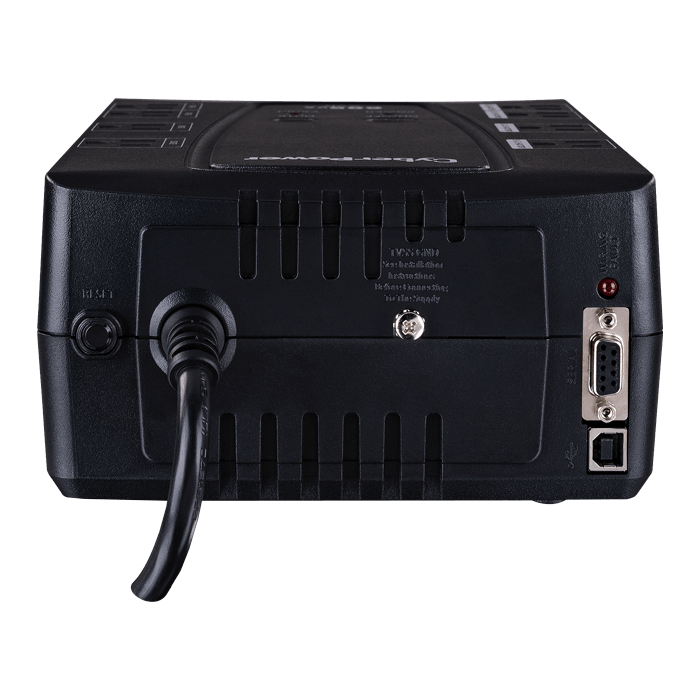

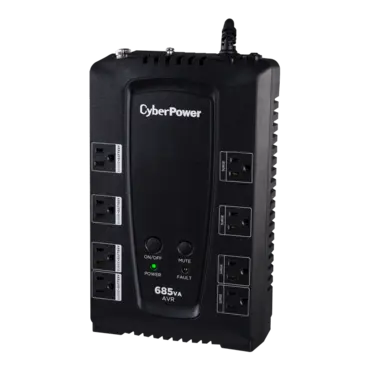

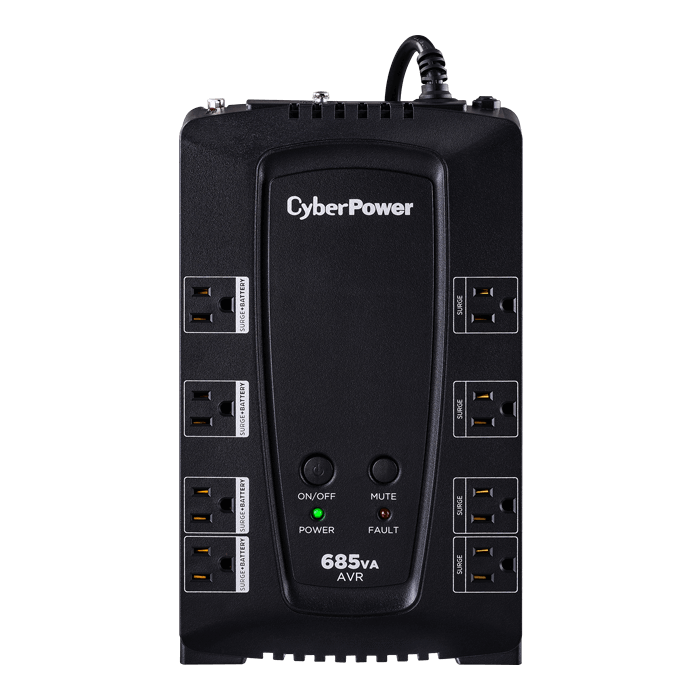

AVR CP685AVRG, 685 VA/390 W, Simulated Sine Wave, Tower UPS
Quantity:
- SKU: 13494056
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP685AVRG
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$98.95
AVR CP685AVRG, 685 VA/390 W, Simulated Sine Wave, Tower UPS
685VA/390W Compact UPS w/AVR 6 Ft Cord, 8 NEMA 5-15R, USB, Serial, 3Yr Wty
685VA/390W Compact UPS w/AVR 6 Ft Cord, 8 NEMA 5-15R, USB, Serial, 3Yr Wty
- Capacity: 685 VA / 390 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Total outlets: 8 (4 surge, 4 surge + battery backup)
- Transformer outlets: 4
- Management software: PowerPanel® Personal
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Qualified | Yes |
| Input | |
| Input Voltage Range | 90 – 140Vac |
| Input Frequency | 60Hz ± 3Hz |
| Frequency Range | 57 – 63 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45 Degree Offset Right |
| Cord Length (ft) | 6 |
| Output | |
| VA | 685 |
| Watts | 390 |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120Vac ± 5.0% |
| On Battery Frequency | 60Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Total | 8 |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Surge-Only Protected | 4 |
| Outlets – Transformer-spaced | 4 |
| Transfer Time | 4ms |
| Overload Protection | Internal Circuitry Limiting |
| Battery | |
| Runtime at Half Load (min) | 11 |
| Runtime at Full Load (min) | 2 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/7AH |
| Replacement Battery | RB1270B |
| Battery Quantity | 1 |
| User Replaceable | Yes |
| Hot Swappable | No |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 Joules |
| Phone RJ11 / Ethernet RJ45 | None |
| Coax Protection RG6 | None |
| Management & Communications | |
| USB Port | Yes |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Management Cable | USB Cable, Serial Cable |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | On Battery, Low Battery, Overload |
| Software | PowerPanel® Personal |
| Physical | |
| Form Factor | Compact |
| Color | Black |
| Keyhole Mounting Slots | Yes |
| Dimensions – W×H×D (in) | 11 x 6.8 x 3.5 |
| Weight (lbs) | 11.62 |
| Environmental | |
| Operating Temperature | 32 °F to 95 °F / 0 °C to 35 °C |
| Operating Humidity | 0% – 90% non-condensing |
| Certifications | |
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
