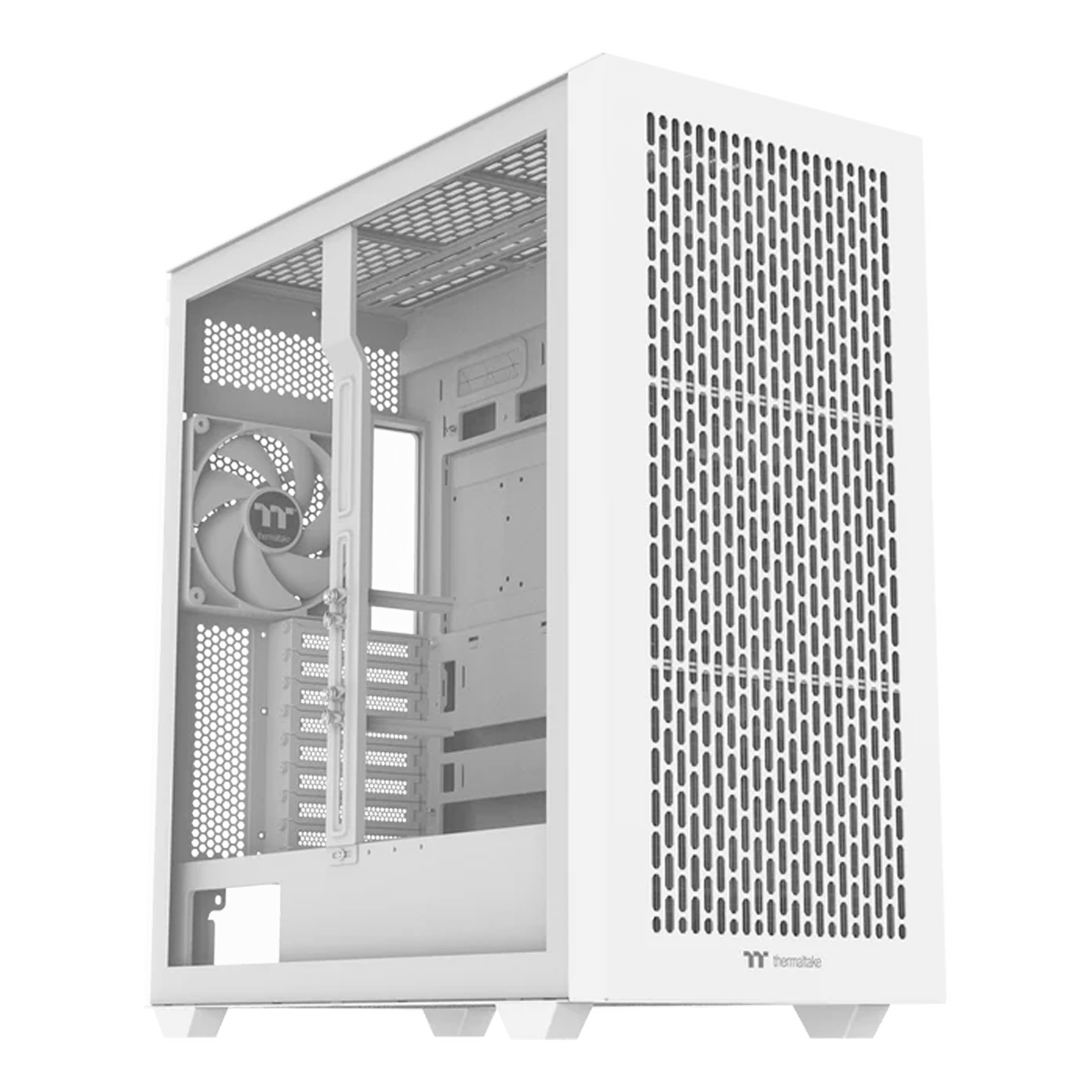

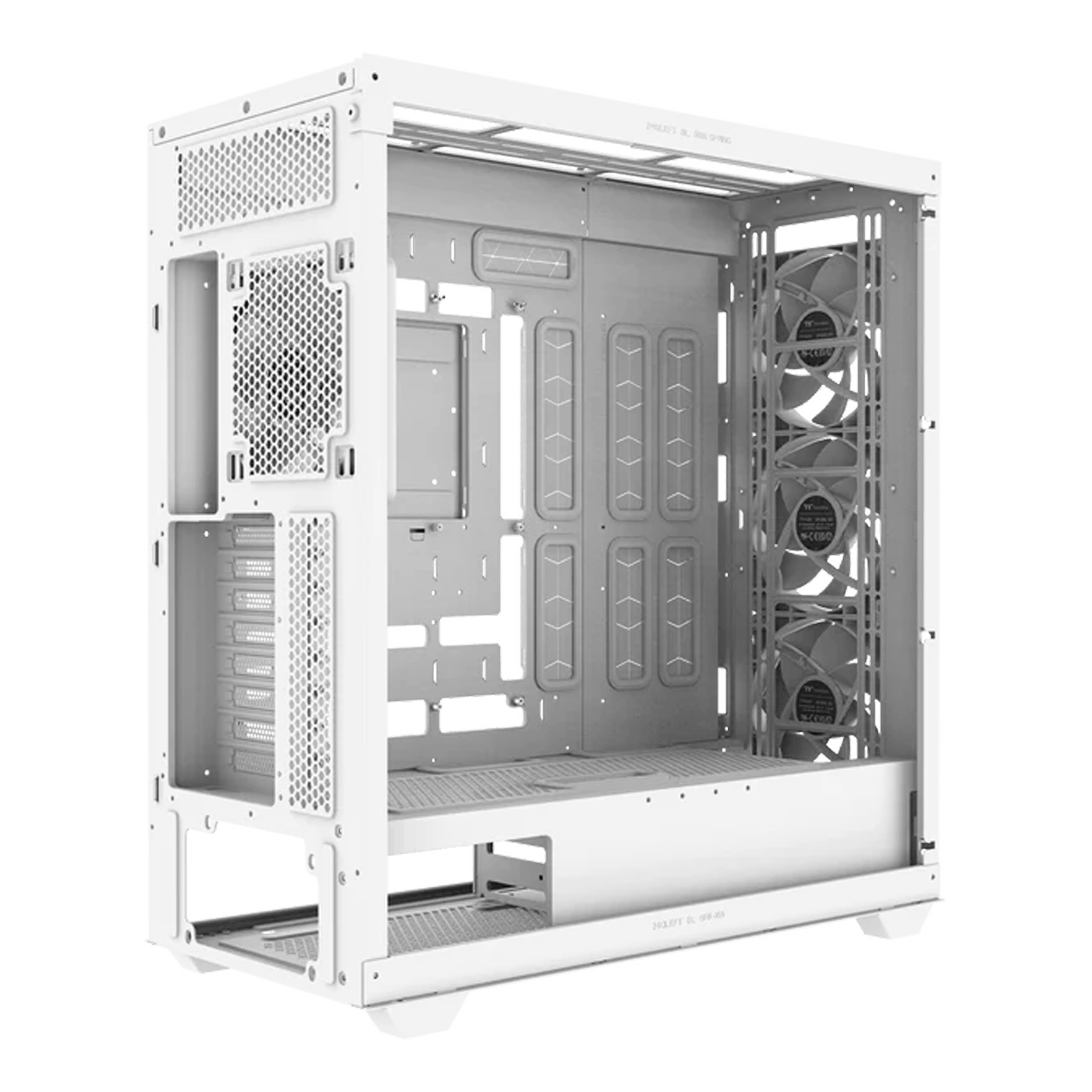

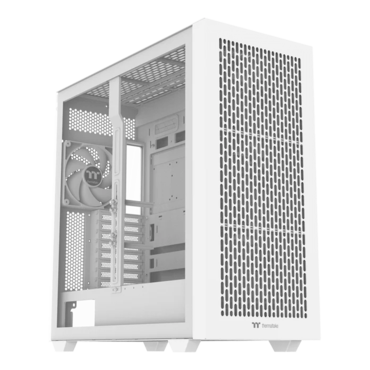

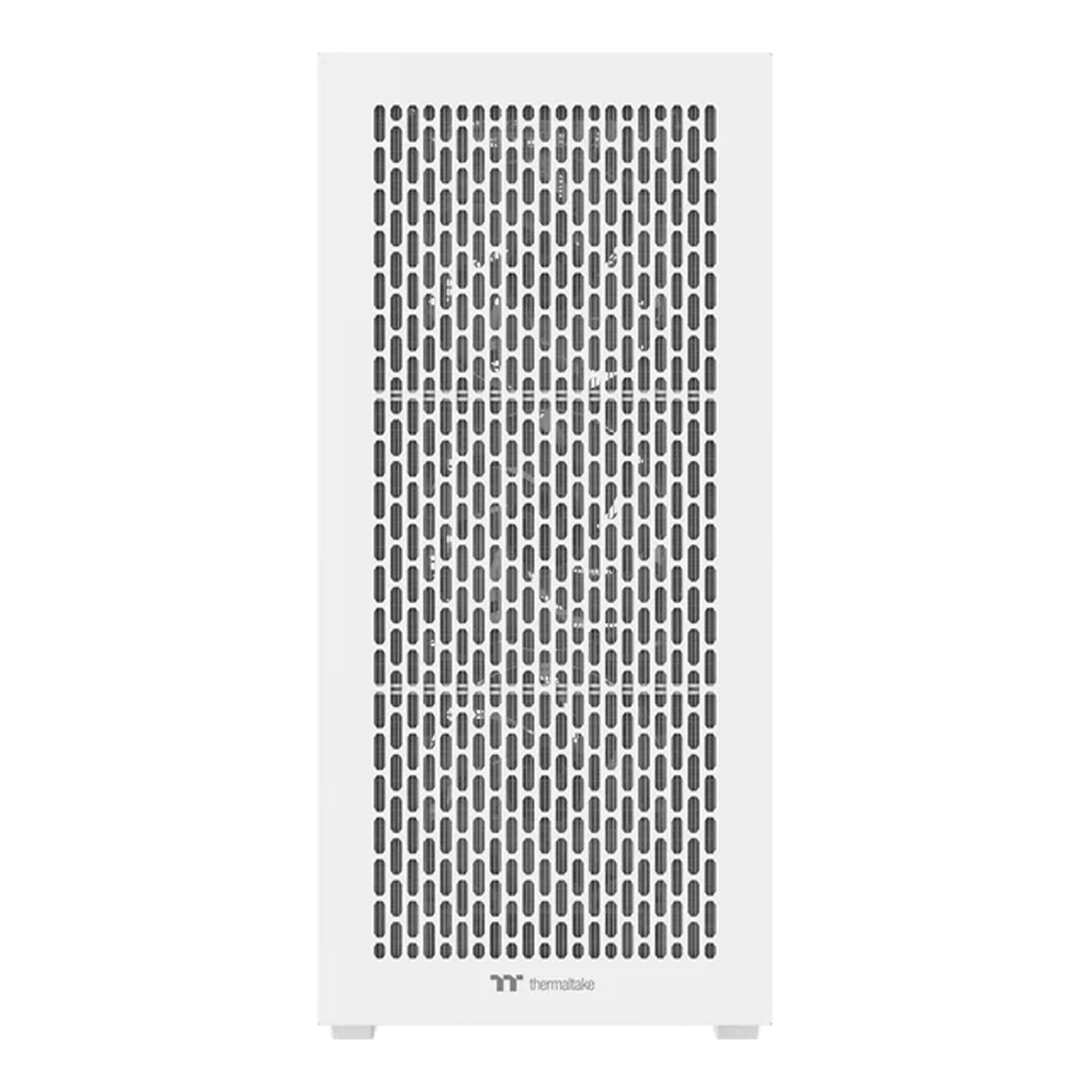

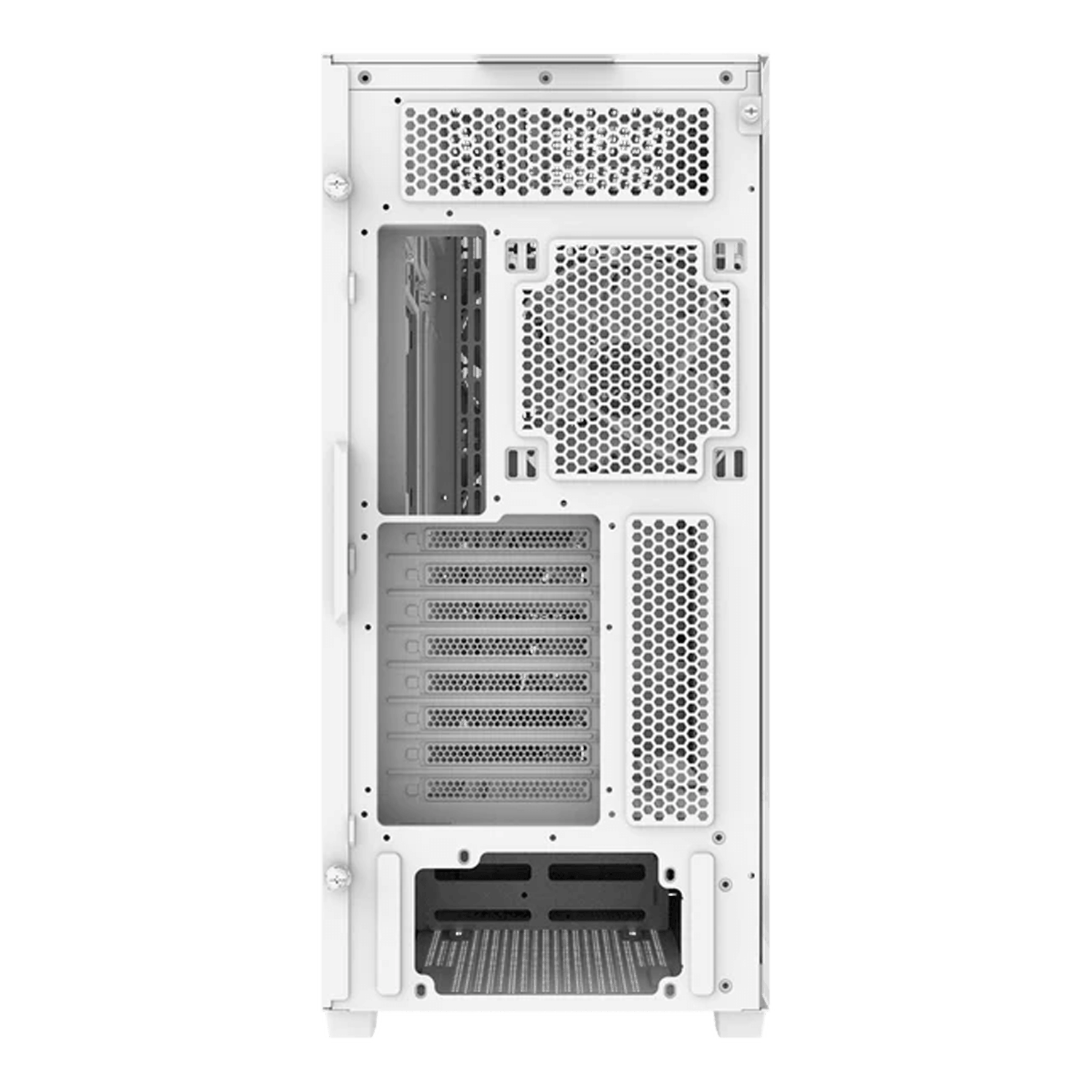

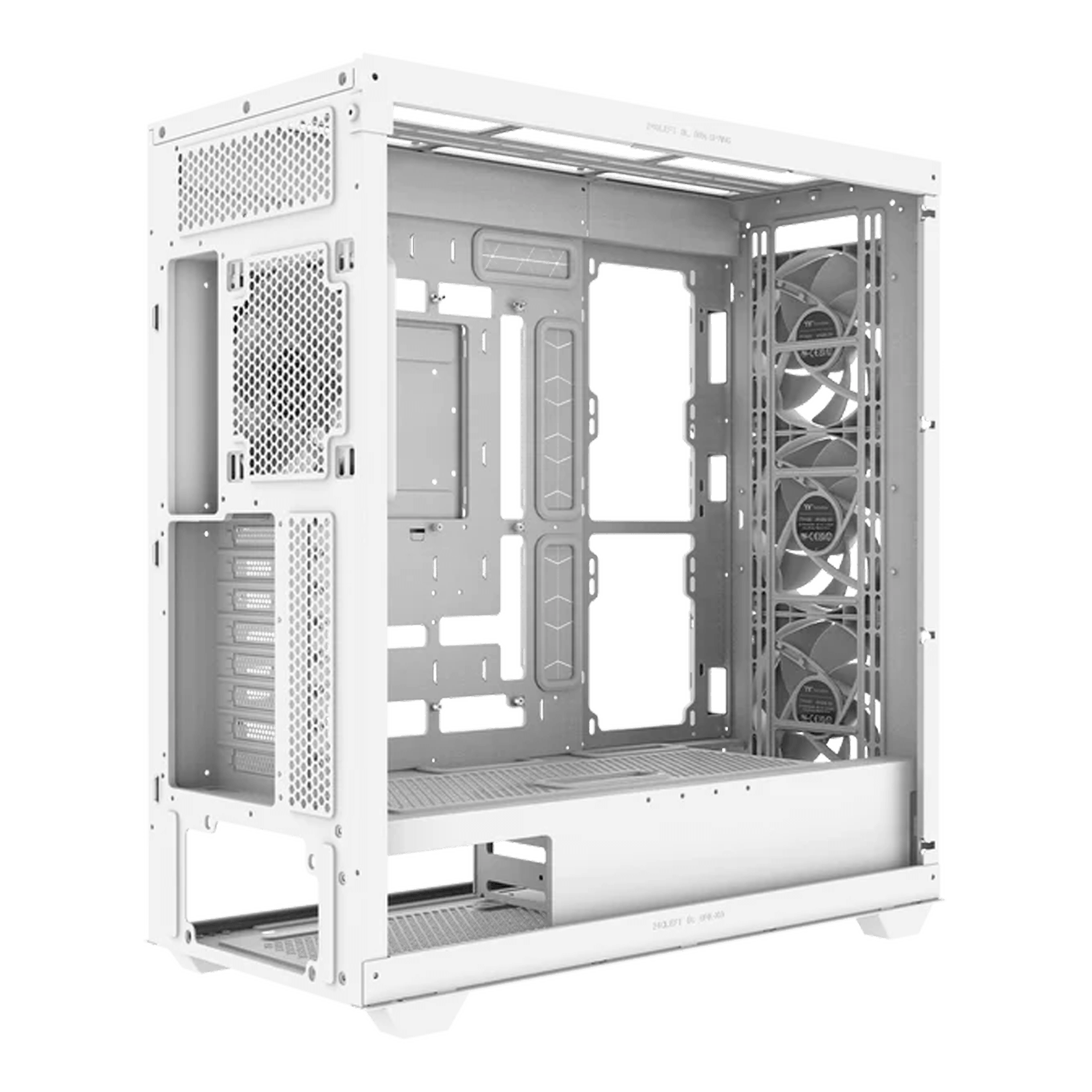

AX500 Snow, Tempered Glass, No PSU, E-ATX, White, Full Tower Case
- SKU: 19018990
- Manufacturer: THERMALTAKE
- MPN: CA-11D-00F6WN-00
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$206.11
AX500 Snow, Tempered Glass, No PSU, E-ATX, White, Full Tower Case
The AX500 Snow Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations, gaming setups, and AI computing.
| P/N | CA-11D-00F6WN-00 |
| Model | AX500 |
| Series | AX Series |
| Case Type | Full Tower |
| Dimensions | 550 x 248 x 548 mm (21.7 x 9.8 x 21.6 inch) |
| Side Panel | Steel + TG |
| Color | White |
| Material | SPCC |
| Cooling System | 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4 |
| Drive Bays | 5 x 3.5” , 1 x 2.5” or 6 x 2.5” |
| Expansion Slots | 8 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX), SSI-CEB, SSI-EEB Hidden-Connector Motherboard 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Top: 3 x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Rear: 1 x 120mm , 1 x 140mm Right: 3 x 120mm , 2x 120mm , 1x 120mm 2 x 140mm , 1x 140mm Power Cover: 3 x 120mm , 2x 120mm , 1x 120mm |
| Radiator Support | Front (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear(AIO): 1 x 120mm , 1 x 140mm |
| Clearance | CPU cooler height limitation: 185mm(Max) VGA length limitation:460mm(Max) PSU length limitation: 200mm (Max) |
