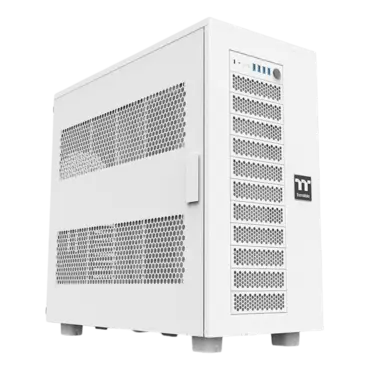

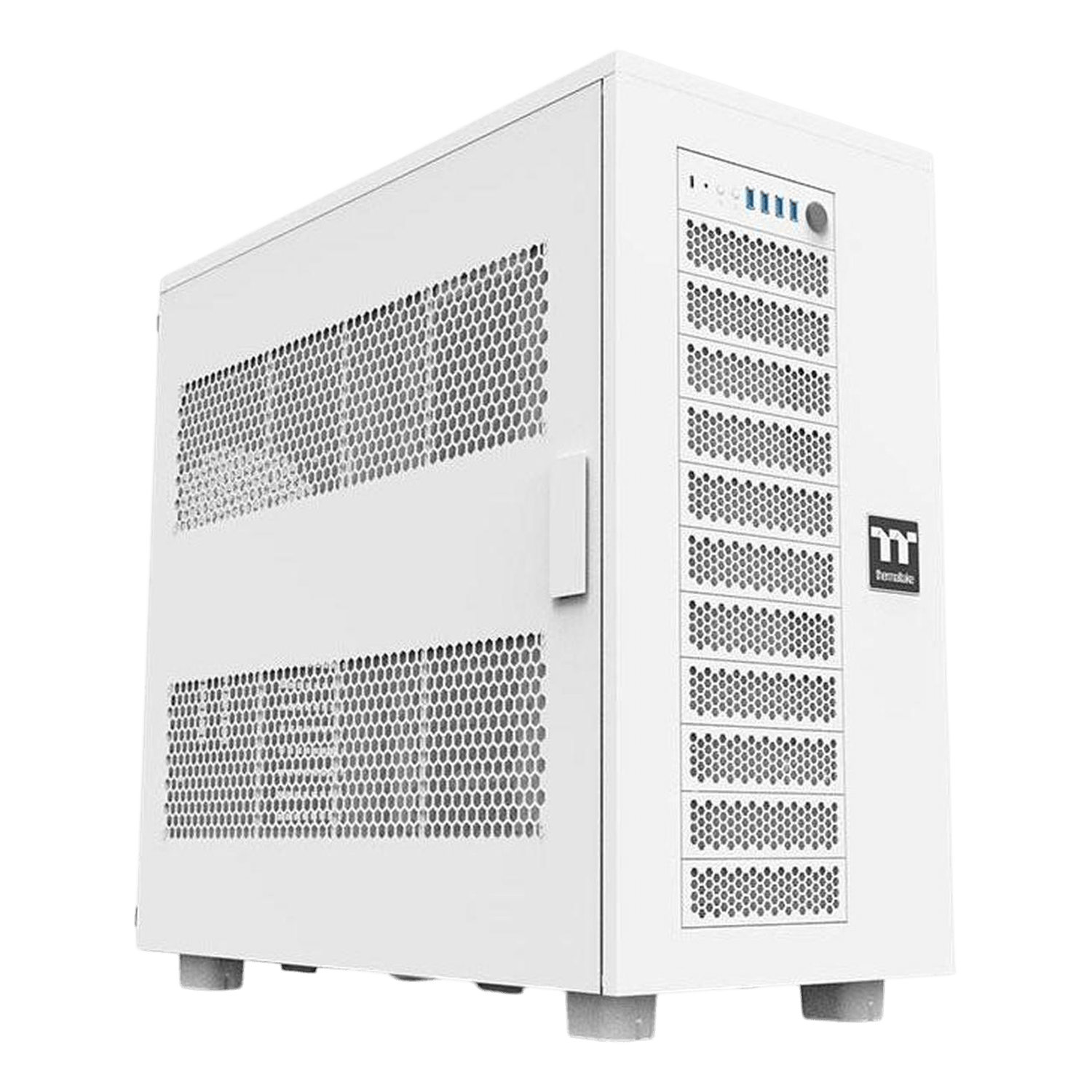

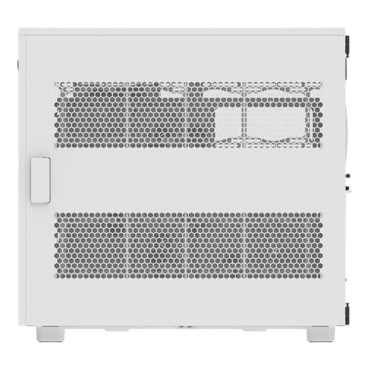

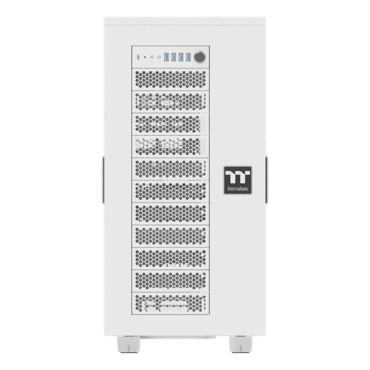

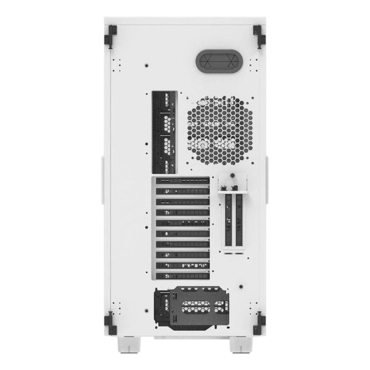

AX700 Snow, No PSU, XL-ATX, White, Full Tower Case

SKU: 19018991
Manufacturer: THERMALTAKE
MPN: CA-11B-00F6NN-00
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Price

$410.06

AX700 Snow, No PSU, XL-ATX, White, Full Tower Case

The AX700 Snow Super Tower Chassis is a high-performance workstation super tower designed for content creators, gamers and AI computing, providing superior performance, storage, and cooling. It supports XL-ATX motherboards, five graphics cards, and up to eighteen hard drives for demanding tasks. With space for eighteen fans and large radiators, it ensures optimal airflow and hardware longevity.

P/N	CA-11B-00F6NN-00
Model	AX700 Snow
Series	AX Series
Case Type	Super Tower
Dimensions	645 x 320 x 685 mm (25.4 x 12.60 x 26.97 inch)
Side Panel	Steel
Material	SPCC
Drive Bays	2 x 5.25’’ 12 x 3.5’’ or 2.5’’ (HDD Cage) 6 x 3.5’’ or 2.5’’ (Behind the M/B tray)
Expansion Slots	10+2
Motherboard	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX) , 13.6” x 10.4” (XL-ATX) , SSI-CEB, SSI-EEB
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front: 3 x 120mm , 3 x 140mm Top: 4 x 120mm , 4 x 140mm Rear: 1 x 120mm , 1 x 140mm Bottom: 2 x 120mm , 2 x 140mm Right Side: 8 x 120mm , 8 x 140mm
Radiator Support	AIO-Radiator Support: Front: 1 x 360mm (MAX), 1 x 420mm (MAX) Top: 1 x 360mm (MAX), 1 x 420mm (MAX) Rear: 1 x 120mm , 1 x 140mm DIY- Radiator Support: Front: 1 x 360mm (MAX), 1 x 420mm (MAX) Top: 1 x 480mm (MAX), 1 x 560mm (MAX) Rear: 1 x 120mm , 1 x 140mm
Clearance	CPU cooler height limitation: 190mm VGA length limitation: 360mm(with HDD rack) 630mm(without HDD rack) PSU length limitation: 220mm (with two bottom fans)
