AX90, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
Quantity:
- SKU: 15835291
- Manufacturer: ANTEC
- MPN: AX90
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$124.19
AX90, Tempered Glass, No PSU, ATX, Black, Mid Tower Case

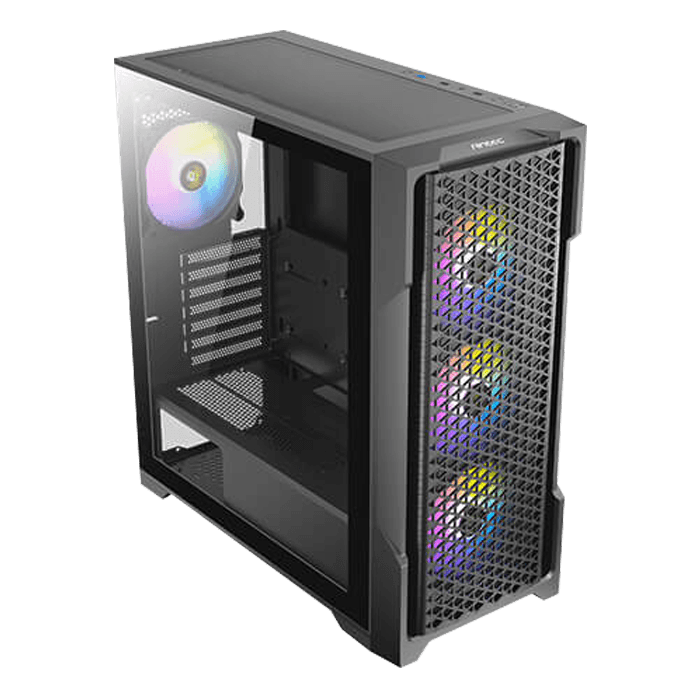

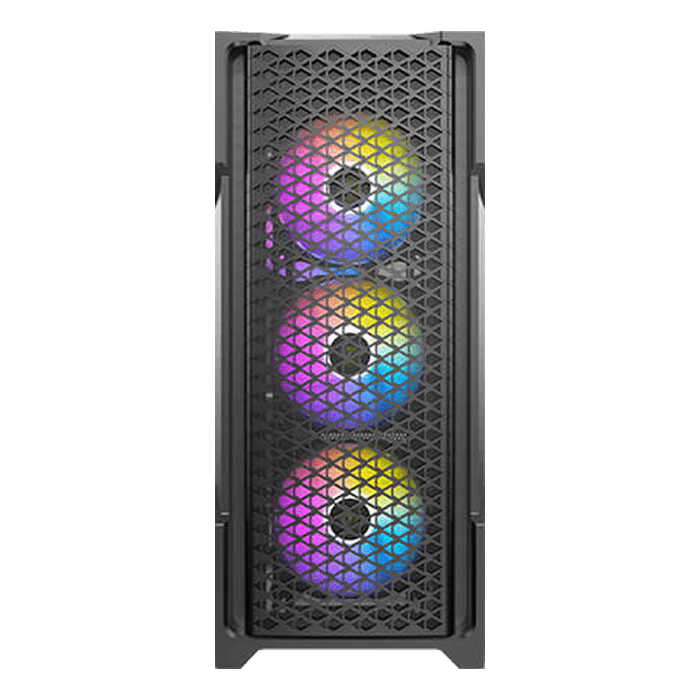

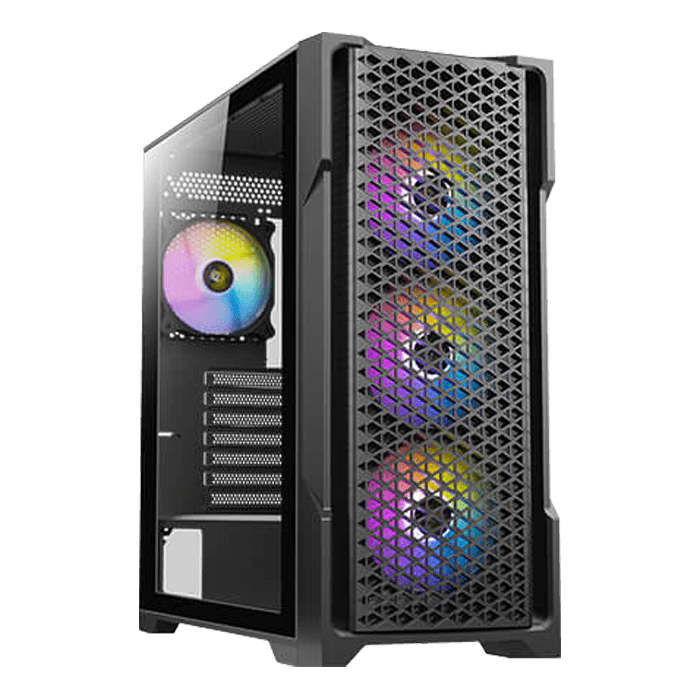

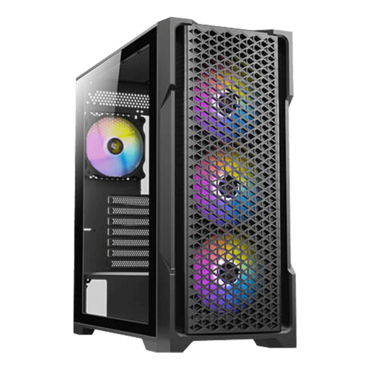

The AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.
| Specifications | |
| Dimensions | 473 x 210 x 486mm(DWH) |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| Mainboard Support | ATX, M-ATX, ITX |
| Front Access & Controls | Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO |
| Side Panel | 4MM Tempered glass |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5" / 2.5" | 2 / 1 |
| 2.5" | 2 |
| Fan | |
| Front | 3 x 120mm / 3 x 140mm |
| Top | 3 x 120mm / 2 x 140mm |
| Power supply | 2 x 120mm |
| Side | 2 x 120mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Side | 120 / 240mm |
| Rear | 120mm |
| Clearance | |
| Max GPU Lengtd | ≤ 385mm |
| Max CPU Cooler Height | ≤ 160mm |
| Max PSU Lengtd |
(Include cable) ≤ 220mm(witd HDD) (Include cable) ≤ 410mm(witdout HDD) |
| Miscellaneous | |
| Dust Filter | Front / Top / Bottom / Right Hand Side |
| Net Weight | 6.77 Kgs |
| Gross Weight | 7.93 Kgs |
| Warranty | 1 Year |
| UPC# | 0-761345-10063-2 |
