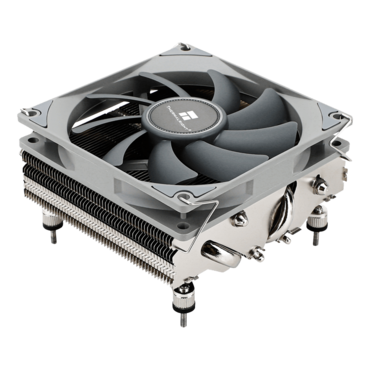

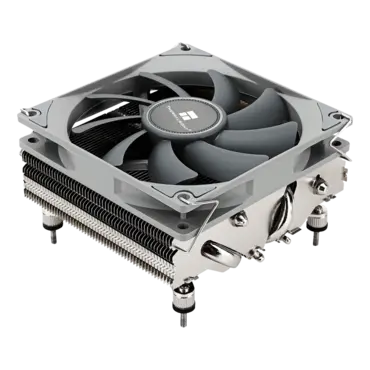

AXP90-X47, 47mm Height, 135W TDP, Copper/Aluminum CPU Cooler
- SKU: 15022971
- Manufacturer: THERMALRIGHT
- MPN: AXP90 X47 1700-D3
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- Compact, premium-quality low-profile CPU cooler (47mm total height
- Good adaptability, all metal platform, with back plate fastener, secondary reflow soldering process
- 4×6mm AGHP Heatpipes, Noise≤22.4DBA, Voltage 12V, Current 0.2A (MAX)
- Support for Intel: 115X/1200/1700; AMD: AM4
- Pure copper nickel plating process, corrosion resistance, acid and alkali resistance, low thermal resistance
| Heatsink Specifications | |
| Dimension | L94.5 mm x W95 mm x H32 mm |
| Weight(With Fan) | 310g |
| Heat pipes | 6mm heatpipe x 4 units |
| Fin | T = 0.3 mm;Gap=1.6 mm |
| Fin pcs | 54 pcs |
| Copper Base | C1100 Pure Copper nickel plated |
| TL-9015 FAN Spec | |
| Dimension | L92 mm x W92 mm x H15 mm |
| Rated Speed | 2700 RPM±10% (MAX) |
| Noise Level | 22.4 dBA |
| Air Flow | 42.58 CFM (MAX) |
| Air Pressure | 1.33mm H2O (MAX) |
| Ampere | 0.18 A |
| Connector | 4 Pin (PWM Fan connector) |
| Bearing Type | HYDRAULIC Bearing |
