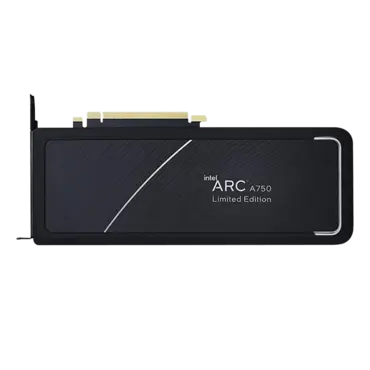

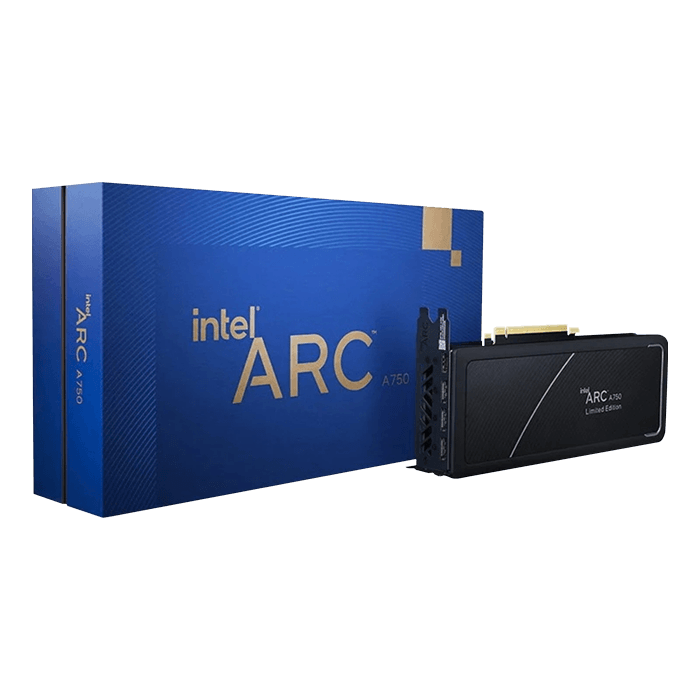

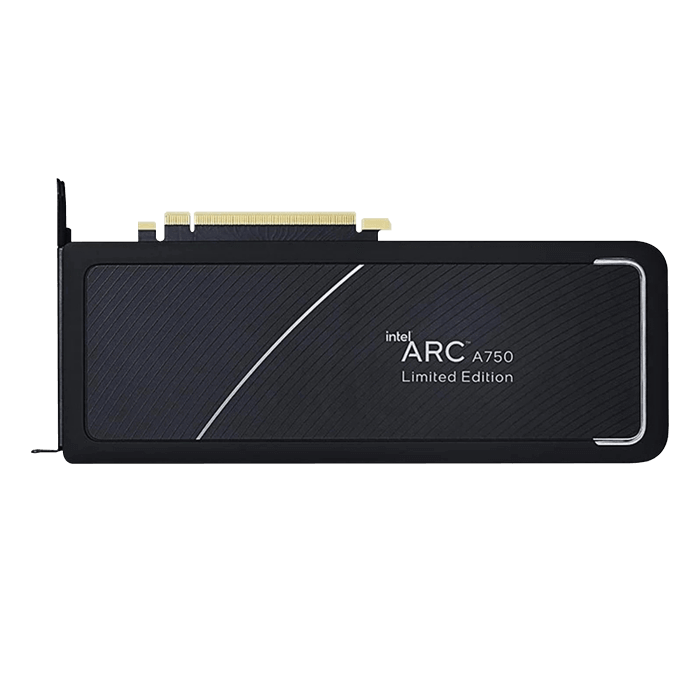

Arc™ A750, 2050MHz, 8GB GDDR6, Graphics Card

  • SKU: 15220198
  • Manufacturer: INTEL
  • MPN: 21P01J00BA
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Product Collection Intel® Arc™ A-Series Graphics
Model Number A750
Code Name Products formerly Alchemist
Microarchitecture Xe HPG
Lithography Type TSMC N6
Vertical Segment Desktop
Status Launched
Launch Date Q3'22
GPU Specifications
Xe-cores 28
Render Slices 7
Ray Tracing Units 28
Intel® Xe Matrix Extensions (Intel® XMX) Engines 448
Xe Vector Engines 448
Graphics Clock 2050 MHz
TBP 225 W
PCI Express Configurations Up to PCI Express 4.0 x16
Device ID 0x5691
Memory Specifications
Memory Size 8 GB
Memory Type GDDR6
Graphics Memory Interface 256 bit
Graphics Memory Bandwidth 512 GB/s
Graphics Memory Speed 16 Gbps
Supported Technologies
Ray Tracing Yes
Variable Rate Shading (VRS) Yes
DirectX* Support DirectX 12 Ultimate
Vulkan* Support 1.3
OpenGL* Support 4.6
OpenCL* Support 3
Multi-Format Codec Engines 2
Adaptive Sync Yes
I/O Specifications
# of Displays Supported 4
Graphics Output eDP* 1.4 | DP 2.0 up to UHBR 10** | HDMI* 2.1 | HDMI* 2.0b
Max Resolution (HDMI) 4096 x 2160@60Hz
Max Resolution (DP) 7680 x 4320@60Hz
H.264 Hardware Encode/Decode Yes
H.265 (HEVC) Hardware Encode/Decode Yes
AV1 Encode/Decode Yes
VP9 Bitstream & Decoding Yes
Intel® Deep Link Technologies
Intel® Deep Link Hyper Compute Yes
Intel® Deep Link Hyper Encode Yes
Intel® Deep Link Stream Assist Yes
