Archer TX55E, AX3000, Dual-Band, Wi-Fi 6, Bluetooth 5.2, PCIe Wireless Adapter

Quantity:
  • SKU: 14993312
  • Manufacturer: TP-LINK
  • MPN: ARCHER TX55E
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$44.37
Quantity:

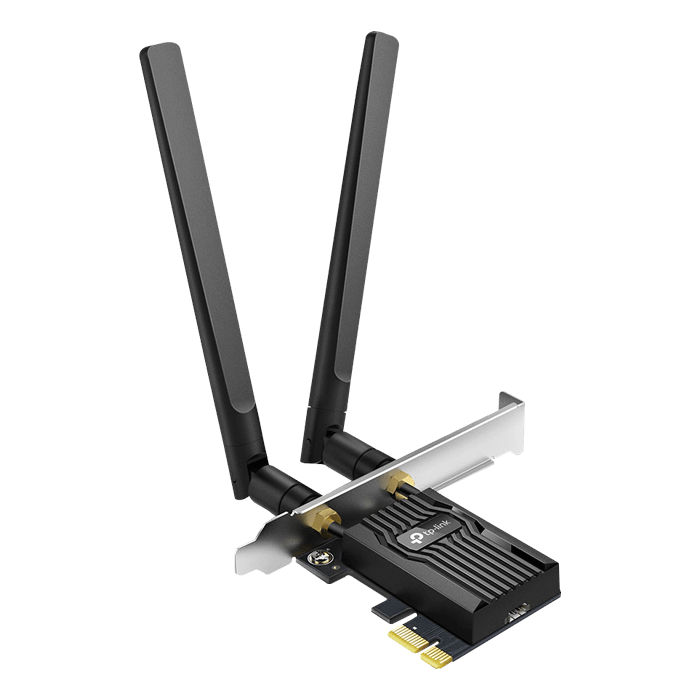

Archer TX55E, AX3000, Dual-Band, Wi-Fi 6, Bluetooth 5.2, PCIe Wireless Adapter

Ultra-Fast Wi-Fi Experience

The very latest Wi-Fi standard, Wi-Fi 6, provides extreme speed, ultra-low latency, and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.

  • Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
  • Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming
  • Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
  • Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
  • Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version
  • Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
  • Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
  • Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
HARDWARE FEATURES
Dimensions 2.4 x 1.4 x 0.45 in
(55 x 36 x 11.5 mm)
Antenna Type Two High-Gain Dual Band Antennas
Chipset Intel Wi-Fi 6 Chipset
BLUETOOTH FEATURES
Standards and Protocols Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
Interface F_USB 2.0
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2/5.0/4.2/4.0
WLAN Signal Rate 5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Archer TX55E
Two High-Gain Antennas
Low-Profile Bracket
Standard Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements Windows 10(64-bit) only
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
