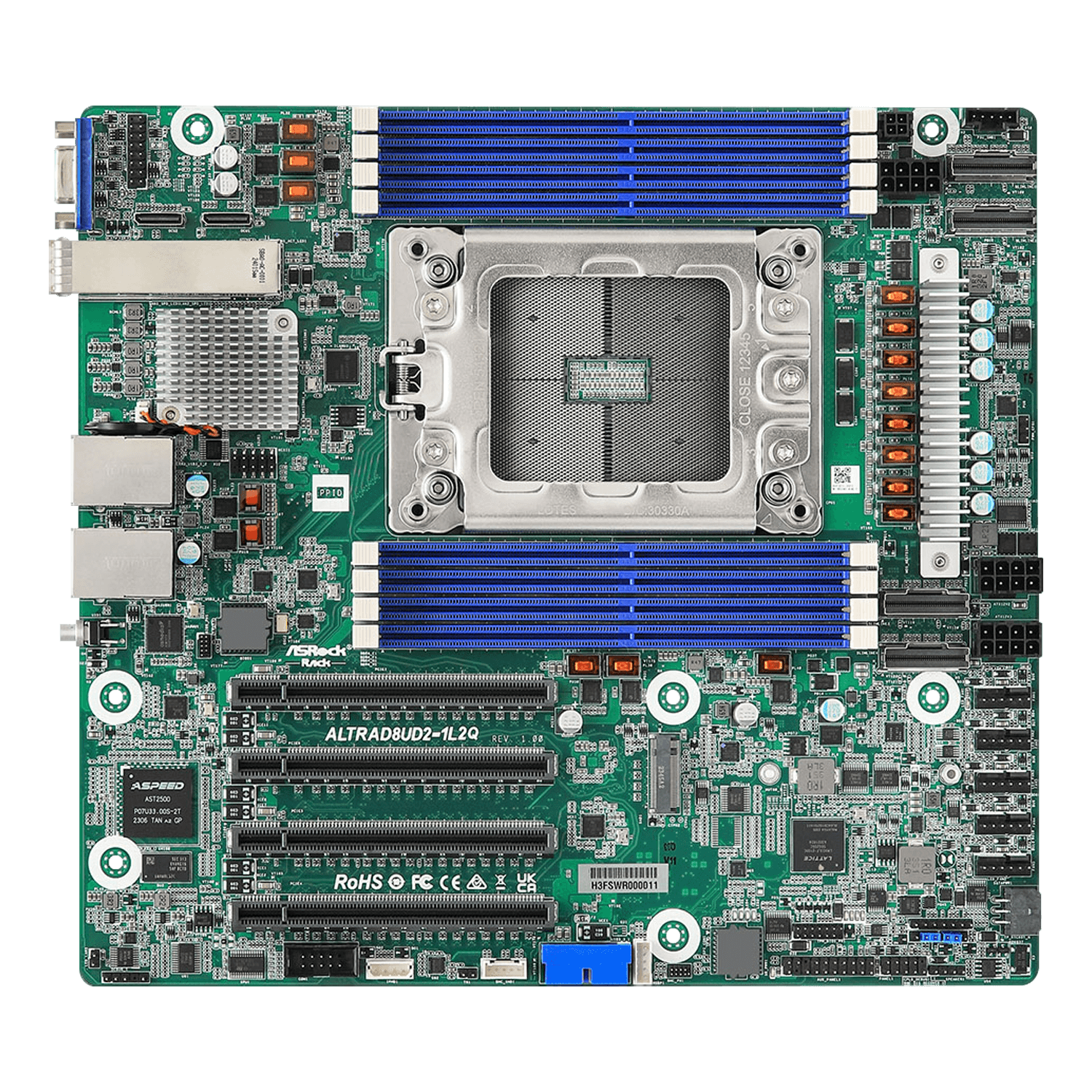

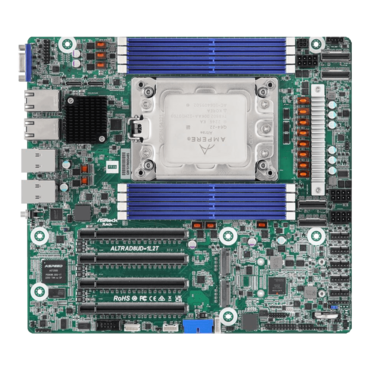

Ampere Altra Bundle ALTRAD8UD-1L2T Deep Micro-ATX Server Motherboard Single Socket (LGA 4926) with Ampere Altra Q64-22 64 cores & 2U passive cooler, Dual 10G
- SKU: 18061942
- Manufacturer: ASROCK
- MPN: ALTRAD8UD2-1L2Q
- Availability: CONTACT US
| Model | |
| Brand | AsRock Rack |
| Model | ALTRAD8UD-1L2T-Q64-22 |
| Part Number | ALTRAD8UD-1L2T-Q64-22 |
| Supported CPU | |
| CPU Socket Type | Single Socket (LGA 4926) |
| CPU Type | Ampere Altra Max/Ampere Altra processors |
| Number of Processor Support | 1 |
| CPU Features |
32 to 128 Cores 1MB Private L2 Cache per Core 8 channel DDR4 128 lanes PCIe Gen4 40 to 180W |
| Chipsets | |
| Other Chipset | System on Chip |
| Memory | |
| Number of DDR4 Slots | 8 x 288-pin |
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 256GB |
| Expansion Slots | |
| PCI Express 4.0 x16 |
SLOT7: PCIe4.0 x16* SLOT6: PCIe4.0 x16* SLOT5: PCIe4.0 x16 SLOT4: PCIe4.0 x16** *Supports PCIe4.0 x8 when using Ampere Altra processors **SLOT4 do not support full-length card |
| Other Slots |
4 SlimSAS (PCIe4.0 x8) 2 OCuLink (PCIe4.0 x4) |
| Storage Devices | |
| M.2 | 2 x M-key (PCIe4.0 x4); support 2280/2230 form factor |
| Onboard LAN | |
| LAN Chipset | Intel X550 |
| LAN Speed | 10Gbps |
| Second LAN Chipset | Intel i210 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10Gbps |
| Rear Panel Ports | |
| Back I/O Ports |

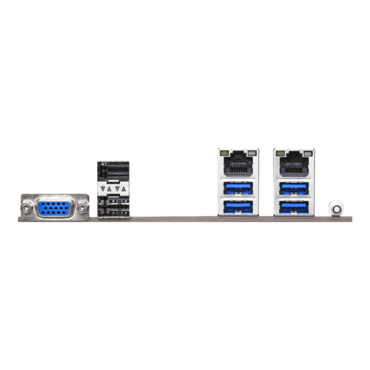

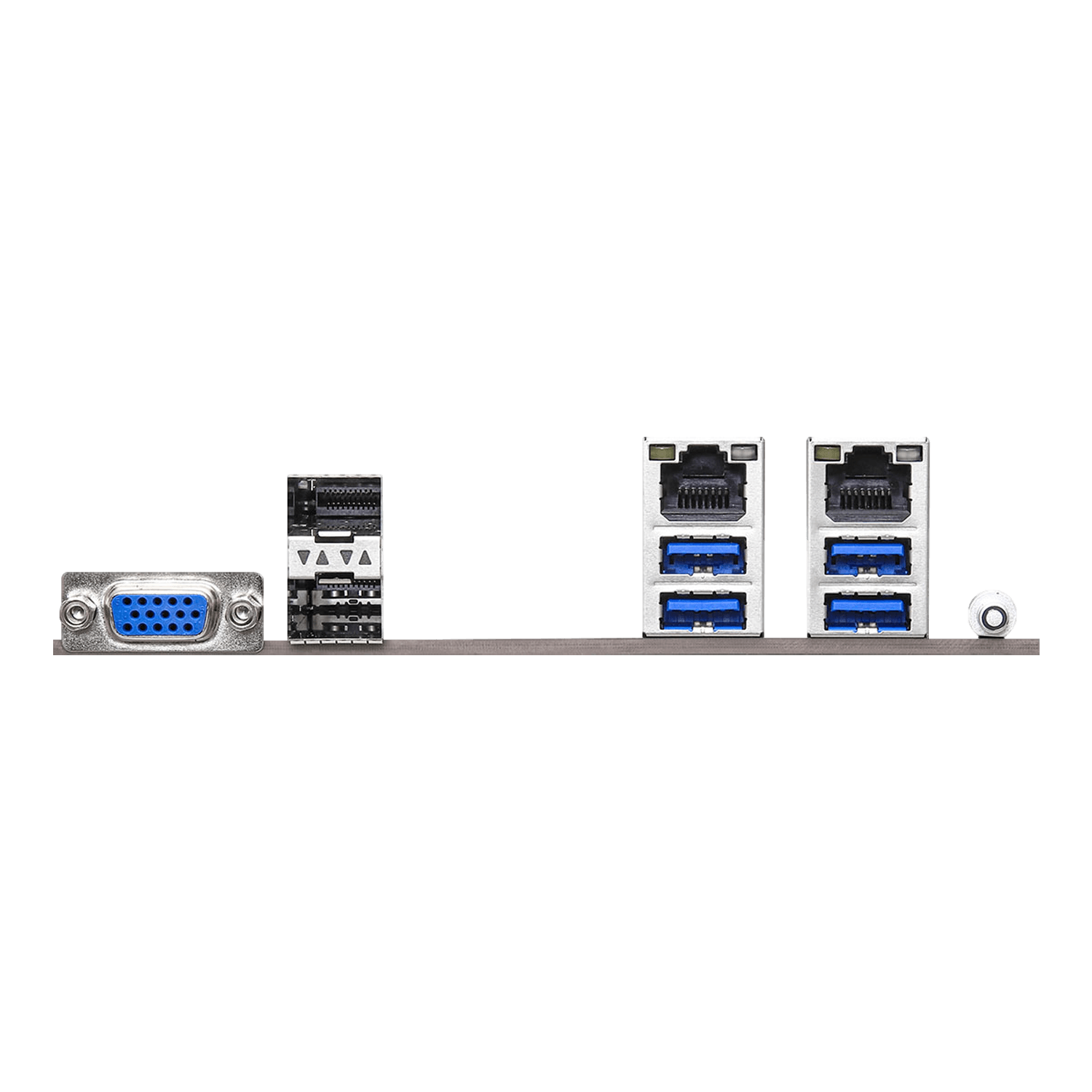

UID Button/LED: 1x UID button w/ LED VGA Port: 1x DB15 (VGA) USB: 4x 3.2 Gen1 Port Type-A (USB3.2 Gen1) RJ45: 2x RJ45 (10GbE), 1x RJ45 (1GbE) / 1 dedicated IPMI |
| Onboard Ports | |
| Other Connectors |
Power Connector: 1x (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in Auxiliary Panel Header: 1x (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1x (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 VGA header: 1 Speaker Header: 1x (4-pin) Fan Header: 5x (6-pin) Thermal Sensor Header: 1 TPM Header: 1x (13-pin, SPI) SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) Front Lan LED Connector: 1 (LAN3 LED) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) |
| Features | |
| Features |
LED Indicators: 1x Standby PWR LED 5vsb, 5x Fan Fail LED, 1x BMC heartbeat LED System BIOS: AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM - ASRock Rack Instant Flash, ACPI 6.2, SMBIOS 3.4.0 and above, Plug and Play(PnP) Hardware Monitor: - Temperature: SOC, MB Temperature sensing - Fan: Fan Tachometer, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Fan Multi-Speed Control - Voltage: 12V, 5V, 3V3, 5VSB, 0V8_VDDC_SOC, BAT, 0V75_PCP_CPU, 1V8_PCP, 1V2_VDDQ0123, 1V2_VDDQ4567, 0V6_VTT0123, 0V6_VTT4567, 3V3_SOC, 1V8_VDDH, 1V5_VDDH, 0V85_VDDC_RCA Supported OS: RHEL 8.5 aarch64, RHEL 9.2 aarch64, CentOS-Stream 8 aarch64, CentOS-Stream 9 aarch64 Environment: - Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C - Humidity: Non operation humidity: 20% ~ 90% ( Non condensing) |
| Dimensions | |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6" x 10.5" |
