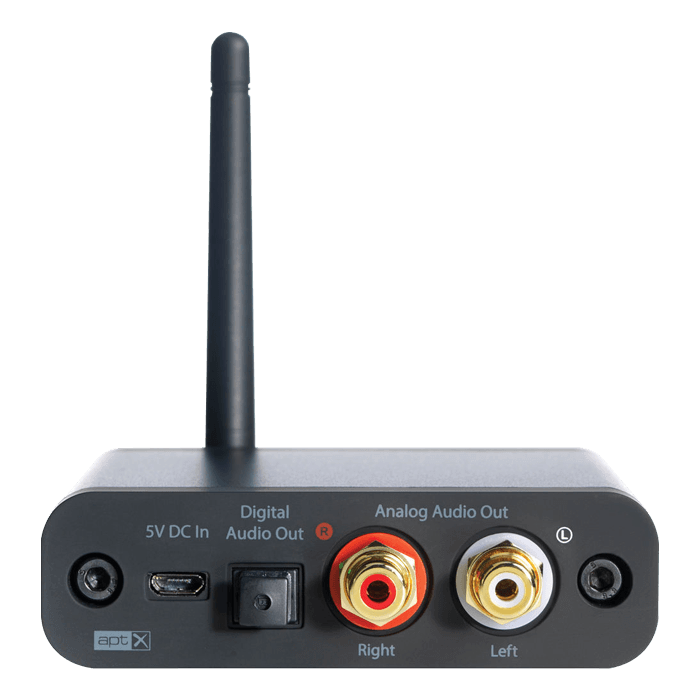

B1 Bluetooth Music Receiver
Quantity:
- SKU: 17533947
- Manufacturer: AUDIOENGINE
- MPN: B1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$189.00
| Receiver | |
| DAC | AKM AK4396 |
| Full Scale Output | 2.0 V RMS |
| Output Impedance | 57 ohms |
| SNR | DC to 20 kHz: >100dB |
| THD + N | 1 kHz FS 96 kS/s: <0.02% |
| Frequency Response | 10 Hz to 20 kHz ±0.5 dB |
| Cross Talk | >-86 dB |
| Input Bit Depth | 24-Bit (Upsampled) |
| Input Data Rate | Determined by Bluetooth |
| Latency | ~30 ms |
| Filtering | Power: 3-Stage Redundant Regulation |
| Connectivity | |
| Bluetooth Version | Bluetooth 5.0 with aptX HD Codec |
| Bluetooth Profiles | aptX HD, A2DP, AVRCP |
| Operating Distance | Up to 100' / 30.5 m (Typical) |
| Outputs |
1 x Stereo RCA 1 x Optical TOSLINK (SPDIF) |
| Physical Specifications | |
| Environment Requirements |
Operating Temperature: 32 to 105°F / 0 to 40°C Storage Temperature: -4 to 115°F / -20 to 46°C Relative Humidity: 5% to 95% (Non-Condensing) |
| Power Requirements | 5 V, 200 mA |
| Dimensions | 4 x 1 x 3.5" / 10.2 x 2.5 x 8.9 cm |
| Weight | 1 lb / 0.45 kg |
| Packaging Info | |
| Package Weight | 1.275 lb |
| Box Dimensions (LxWxH) | 11.1 x 7.5 x 2.55" |
