B13 Socket LGA 3647 Square ILM, 66mm Height, 205W TDP, Copper/Aluminum CPU Cooler

B13 Socket LGA 3647 Square ILM, 66mm Height, 205W TDP, Copper/Aluminum CPU Cooler

Quantity:

SKU: 11662696
Manufacturer: DYNATRON
MPN: B13
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Starting At

$28.75

B13 Socket LGA 3647 Square ILM, 66mm Height, 205W TDP, Copper/Aluminum CPU Cooler

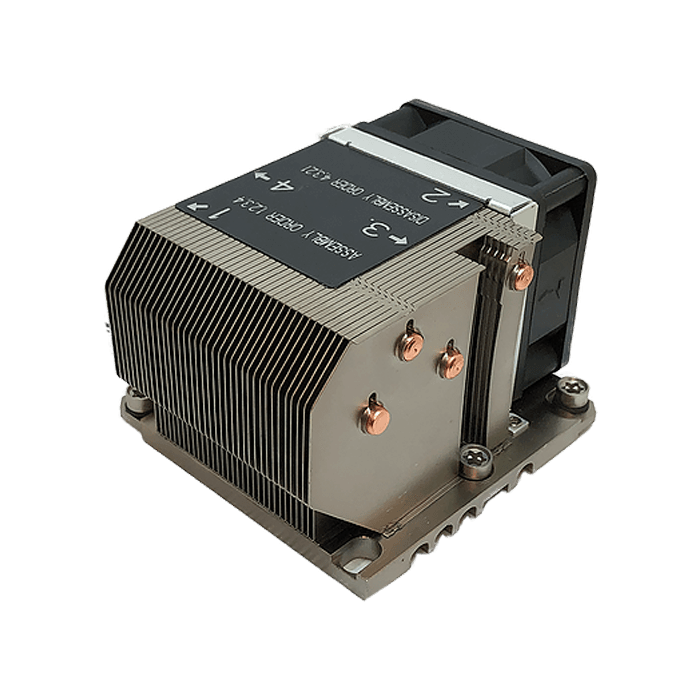

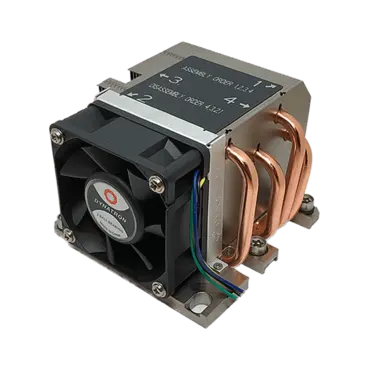

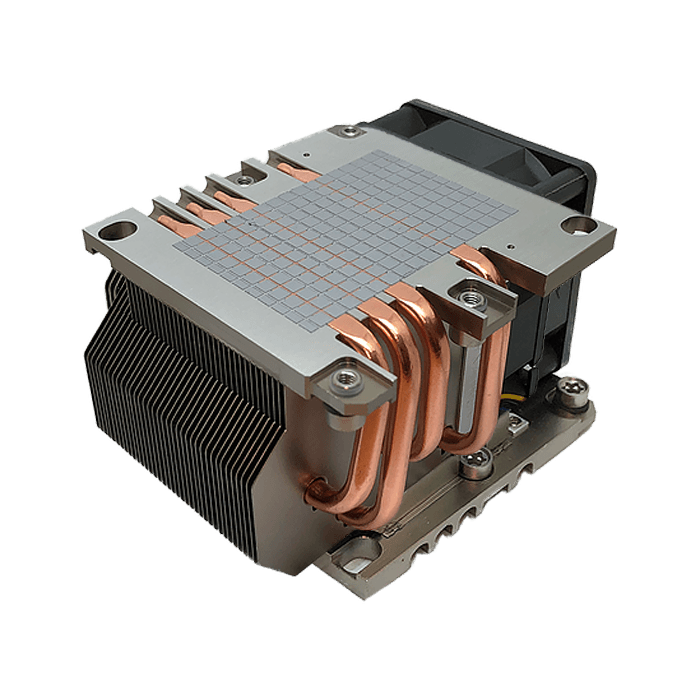

The Dynatron B13 CPU cooler is designed for 2U Active for Intel LGA3647 Square

PU Support	Intel
CPU Socket	FCLGA3647
Solution	2U Server and Up
Dimensions	108.0 x 80.0 x 66.0 mm
Weight	430 g
Material	Aluminum Heatsink with Heatpipe Embedded
Fan Dimension	60 x 60 x 25 mm
Speed	At Duty Cycle 20%: 1400 ± 200 RPM At Duty Cycle 3400 ± 10% RPM At Duty Cycle 100%: 7000 ± 10% RPM
Rated Voltage	12V
Bearing	2 Ball Bearing
Power	At Duty Cycle 20%: 0.90 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 5.40 W
Air Flow	At Duty Cycle 20%: 8.12 CFM At Duty Cycle 50%: 20.31 CFM At Duty Cycle 100%: 40.60 CFM
Noise Level	At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 35 dBA At Duty Cycle 100%: 50 dBA
Air Pressure	At Duty Cycle 20%: 0.58mm-H2O At Duty Cycle 50%: 3.65 mm-H2O At Duty Cycle 100%: 14.58 mm-H2O
Lead Wire Pin Out	Lead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)
Thermal Grease	Shin-Etsu 7762 Pre-printed
