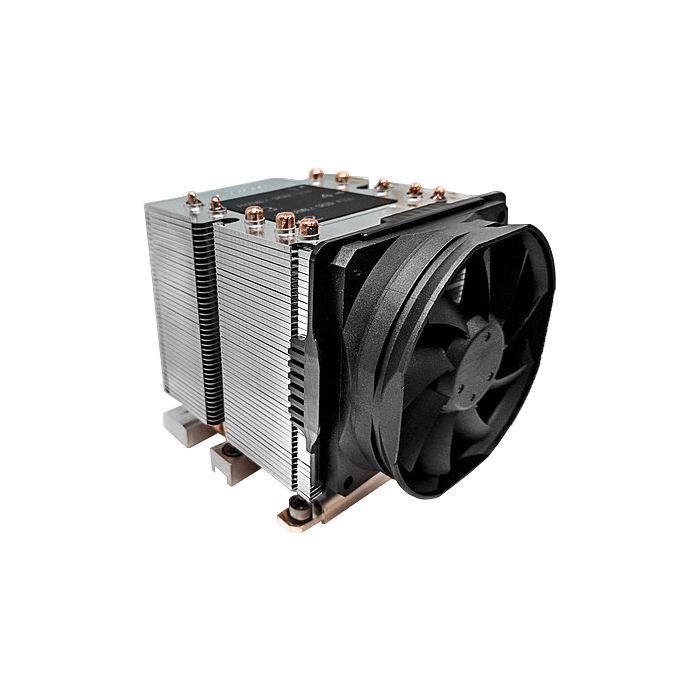

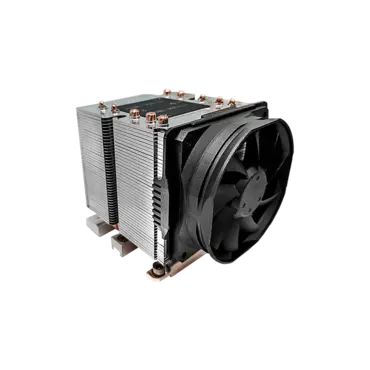

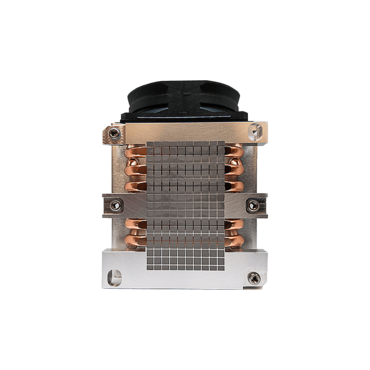

B14, Socket LGA 3647 Square ILM, 110mm Height, 205W TDP, Copper/Aluminum CPU Cooler

SKU: 12071191

Manufacturer: DYNATRON

MPN: B14

Availability: Low Stock


Price: $29.89
or as low as $1/month
Quantity:

Recommend for Intel® Xeon® Platinum / Gold Family Processor( Products formerly Skylake ), Socket FCLGA3647 Square ILM , 80x80x25mm PWM Fan, Aluminum heatsink with heatpipe embedded for 3U Server up to CPU power 205 Watts.

CPU Support

Intel

CPU Socket

FCLGA3647 Square ILM

Solution

3U Server and Up

Dimensions

90 x 90 x 110 mm

Weight

600 g

Material

Aluminum Heatsink with Heatpipe Embedded

Fan Dimension

80 x 80 x 25 mm

Speed

At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 2300 ± 10% RPM
At Duty Cycle 100%: 4000 ± 10% RPM

Rated Voltage

12V

Bearing

2 Ball Bearing

Power

At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 4.8 W

Air Flow

At Duty Cycle 20%: 12.5 CFM
At Duty Cycle 50%: 28.8 CFM
At Duty Cycle 100%: 50.0 CFM

Noise Level

At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 30.2 dBA
At Duty Cycle 100%: 42.2 dBA

Air Pressure

At Duty Cycle 20%: 0.5 mm-H2O
At Duty Cycle 50%: 2.6 mm-H2O
At Duty Cycle 100%: 7.8 mm-H2O

Lead Wire Pin Out

Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed
