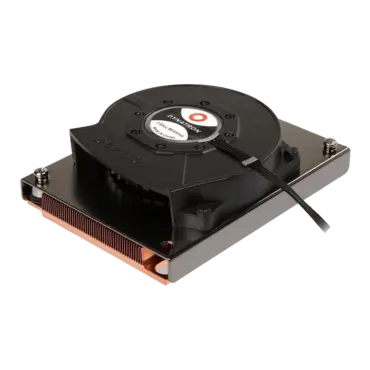

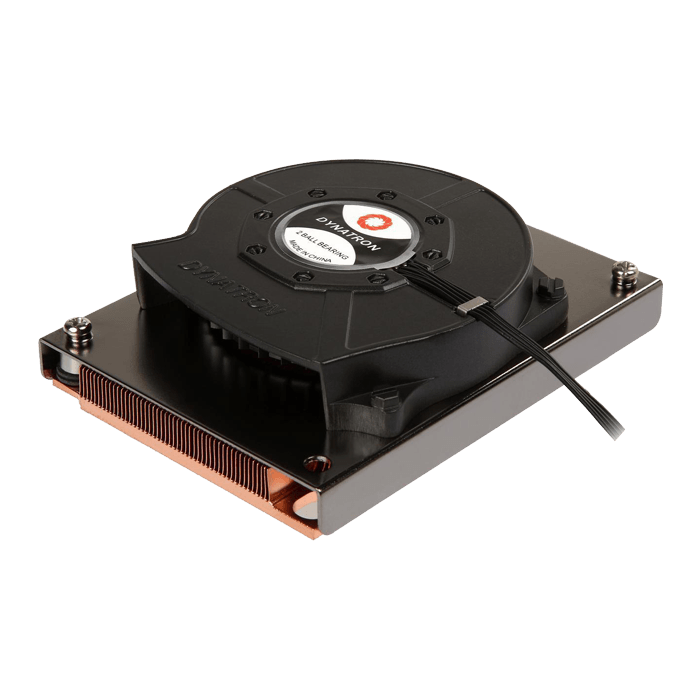

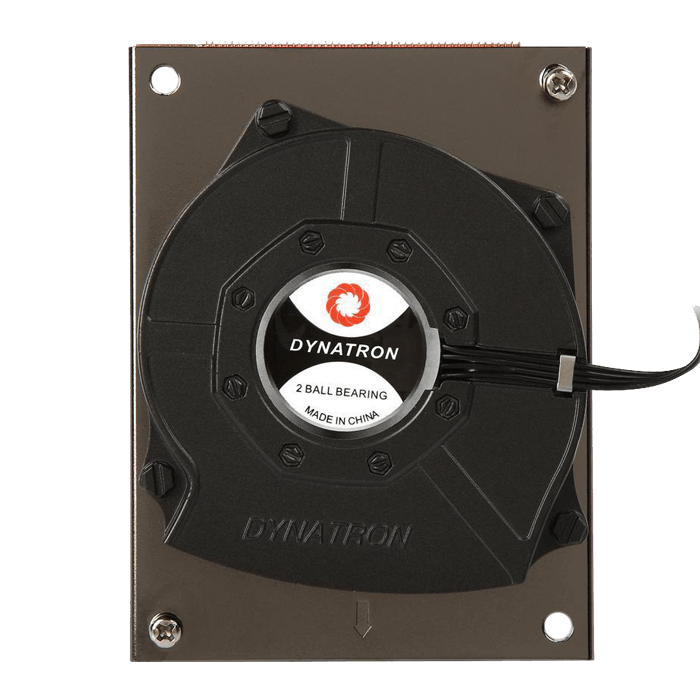

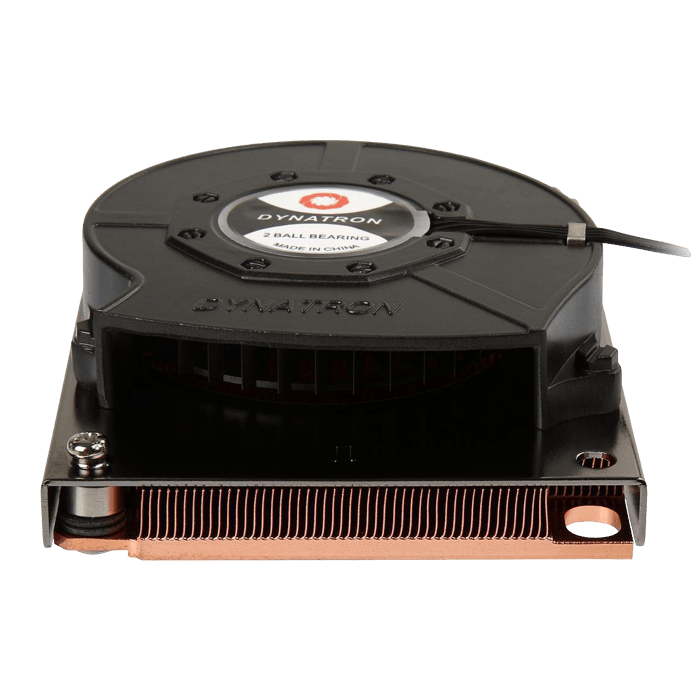

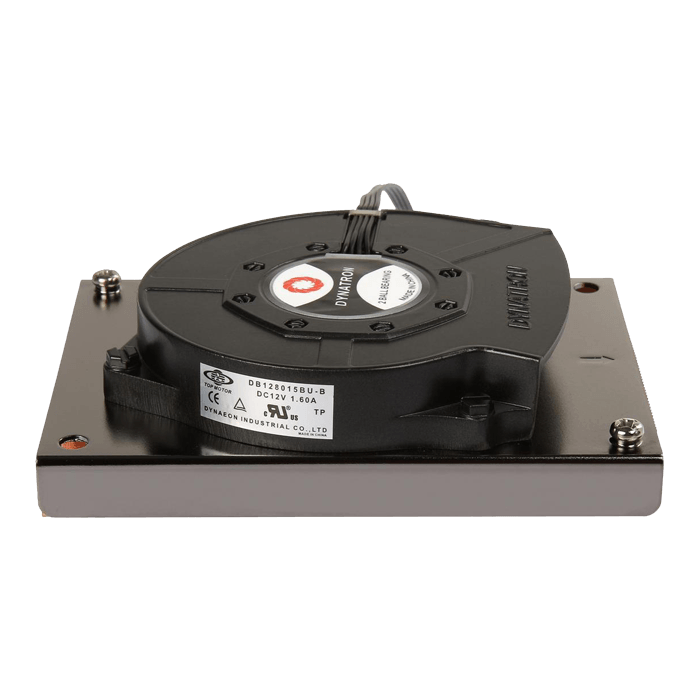

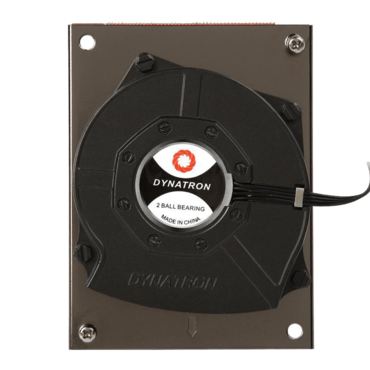

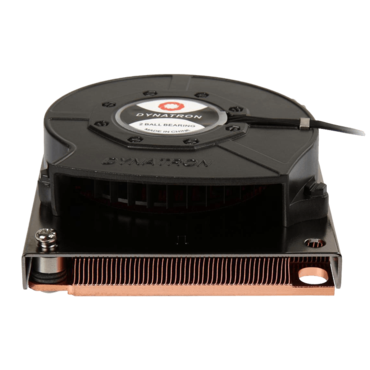

B3, Socket LGA 3647 Narrow ILM, 28mm Height, 165W TDP, Copper CPU Cooler

SKU: 11847179

Manufacturer: DYNATRON

MPN: B3

Availability: Available


Price: $30.18
or as low as $1/month
Quantity:

The Dynatron B3 CPU cooler is designed for 1U Active for LGA3647 Narrow

CPU Support Intel
CPU Socket FCLGA3647
Solution 1U Server and Up
Dimensions 107.0 x 80.5 x 28.0 mm
Weight 460 g
Material Copper 1100 with Skived Fins
Fan Dimension 80 x 15 mm
Speed At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 7000 ± 10% RPM
Rated Voltage 12V
Bearing 2 Ball Bearing
Power At Duty Cycle 20%: 0.60 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 19.2 W
Air Flow At Duty Cycle 20%: 3.0 CFM
At Duty Cycle 50%: 12.0 CFM
At Duty Cycle 100%: 21.0 CFM
Noise Level At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 44.9 dBA
At Duty Cycle 100%: 57.1 dBA
Air Pressure At Duty Cycle 20%: 1.5 mm-H2O
At Duty Cycle 50%: 23.2 mm-H2O
At Duty Cycle 100%: 70.9 mm-H2O
Lead Wire Pin Out Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

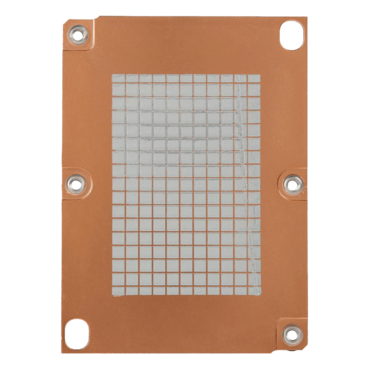

Thermal Grease Shin-Etsu 7762 Pre-printed
