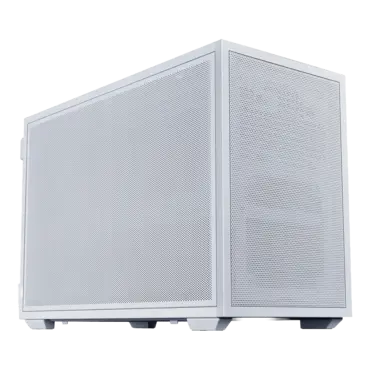

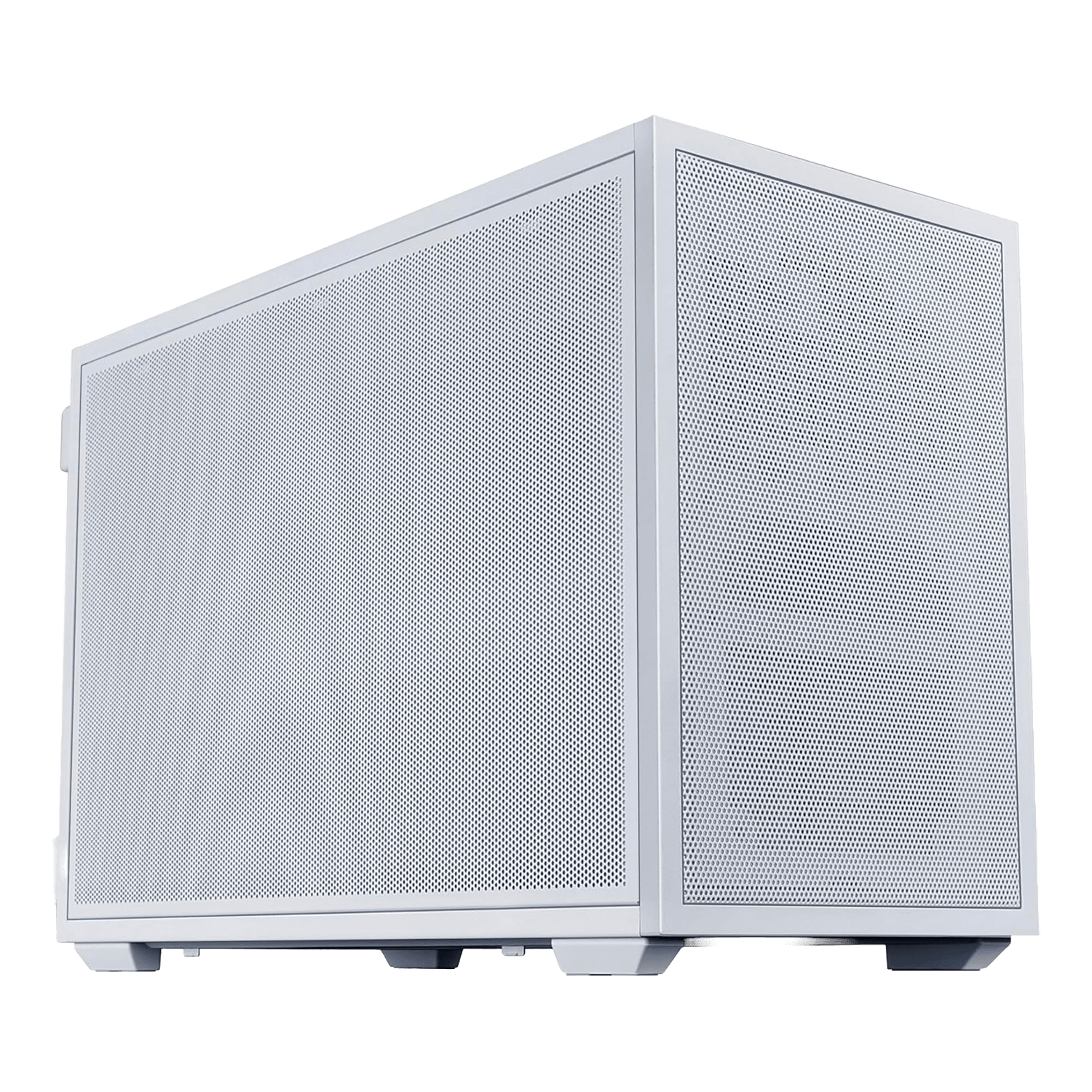

B4-mATX, Mesh Panel, No PSU, microATX, White, Mini Tower Case
- SKU: 20467911
- Manufacturer: LIAN LI
- MPN: B4W
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
| PRODUCT NAME | B4-mATX Mesh |
| MODEL NO. | B4X/B4W |
| COLOR | Black / White |
| DIMENSIONS (DxWxH) | 420 x 191 x 288mm |
| MATERIAL | Steel |
|
MOTHERBOARD SUPPORT |
Back-Connect: NO / Micro-ATX, Mini ITX |
| STORAGE | Front: 2.5” SSD x 1 Bottom: 3.5” HDD x 1 or 2.5” SSD x 1 |
| GPU LENGTH CLEARANCE | 358mm |
|
CPU COOLER HEIGHT CLEARANCE |
159mm (165mm without side fan bracket) |
| PSU SUPPORT | ATX (Up to 140mm) / SFX |
| RADIATOR SUPPORT | Side (With SFX PSU) 360mm / 280mm /240mm Side (With ATX PSU): 240mm |
| FAN SUPPORT |
Top: 120mm x 2 (Pre-installed) Side (With SFX PSU) 120mm x 3 / 140mm x 2 Side (With ATX PSU): 120mm x 2 Front (With SFX PSU ONLY): 120mm slim fan x 1 Bottom: 120 mm x 3 / 140mm x 2 Rear: 120 mm x 1 |
| INCLUDED FANS | Top: 120x120x15mm (x2) |
| DUST FILTER | Bottom: Magnetic Filter x 1 |
| I/O PORTS | USB 3.0 Type A x 2 Power Button x 1 Audio x 1 USB 3.2 Type C x 1 |
| WARRANTY | 1-Year |
