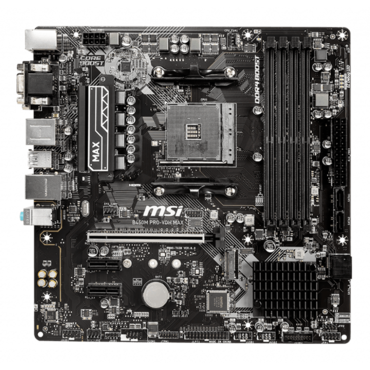

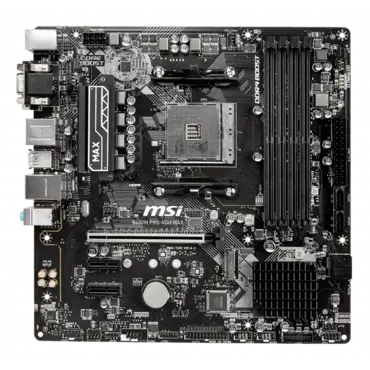

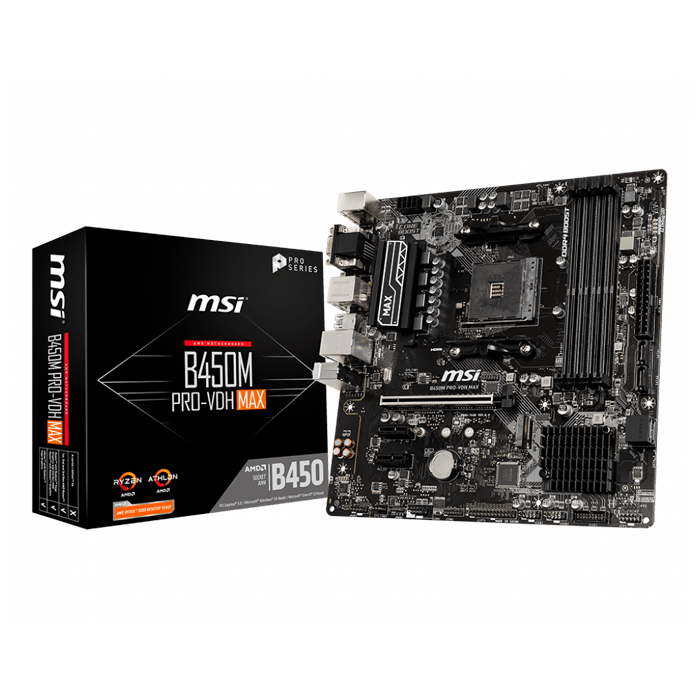

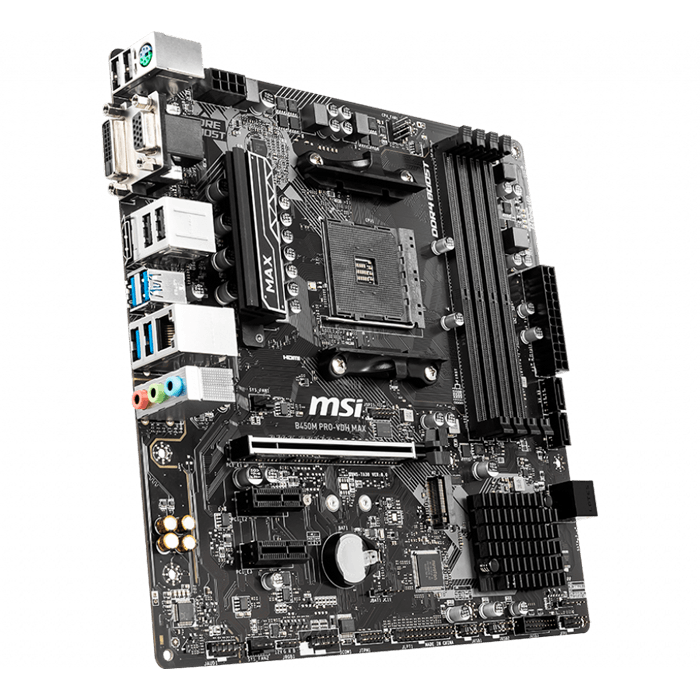

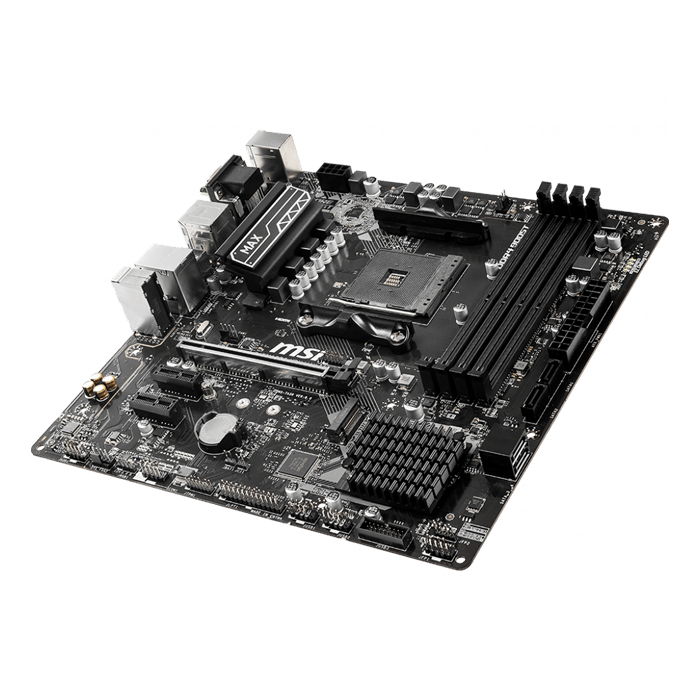

B450M PRO-VDH MAX, AMD B450 Chipset, AM4, HDMI, microATX Motherboard
B450M PRO-VDH MAX, AMD B450 Chipset, AM4, HDMI, microATX Motherboard
B450M PRO-VDH MAX, AMD B450 Chipset, AM4, HDMI, microATX Motherboard
B450M PRO-VDH MAX, AMD B450 Chipset, AM4, HDMI, microATX Motherboard
B450M PRO-VDH MAX, AMD B450 Chipset, AM4, HDMI, microATX Motherboard

B450M PRO-VDH MAX, AMD B450 Chipset, AM4, HDMI, microATX Motherboard

Quantity:
  • SKU: 12976408
  • Manufacturer: MSI
  • MPN: B450M PRO-VDH MAX
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$94.30
Quantity:
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 3466+(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: Easiest way to troubleshoot
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
PROCESSOR Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 See supported processors
CHIPSET AMD® B450 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 64GB
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
    • For AMD Other Processors
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Supports Dual Channel mode
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  • Please refer www.msi.com for more information on compatible memory.
See supported memory
SLOTS
  • 1 x PCIe 3.0 x16 slot
    • 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
    • Athlon™ with Radeon™ Vega Graphics support x4 mode
  • 2 x PCIe 2.0 x1 slots
ONBOARD GRAPHICS
  • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
  • Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  • Maximum shared memory of 2048 MB
STORAGE AMD® B450 Chipset
  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1 x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
    • Supports 2242/ 2260 /2280 storage devices
USB AMD® B450 Chipset
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
  • 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
LAN
  • 1 x Realtek® 8111H Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x RGB LED strip connector
  • 1 x Clear CMOS jumper

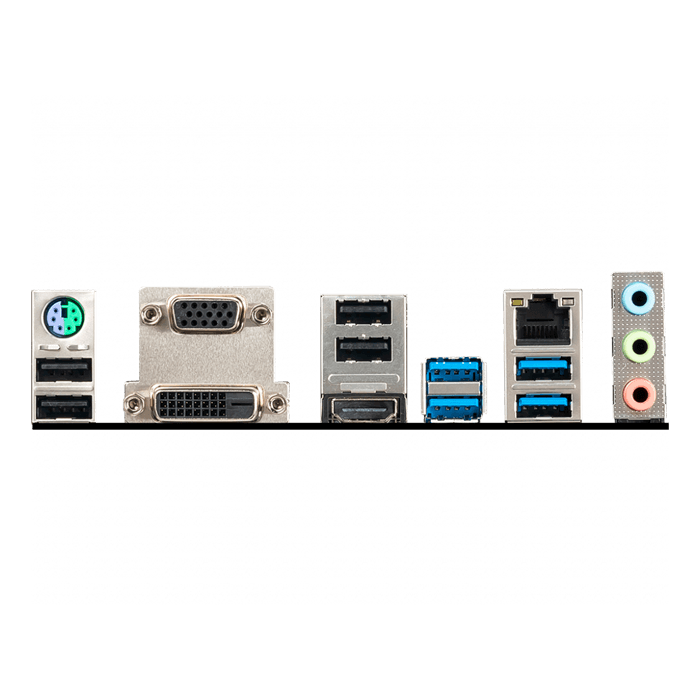

BACK PANEL PORTS
  • PS/2
  • VGA Port
  • USB 2.0 Port
  • USB 3.2 Gen1
  • LAN Port
  • HD Audio Connectors
  • DVI-D Port
  • HDMI Port
DIMENSIONS
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor
MOUNTING 8 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
