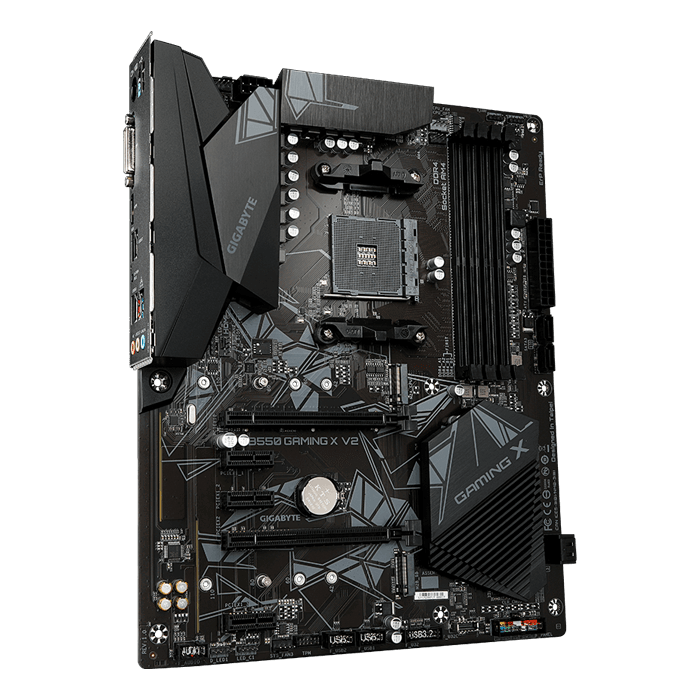

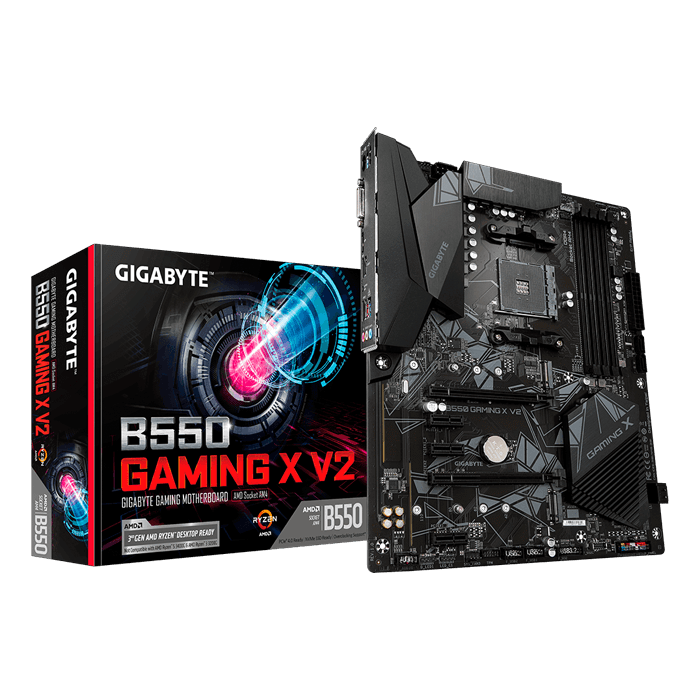

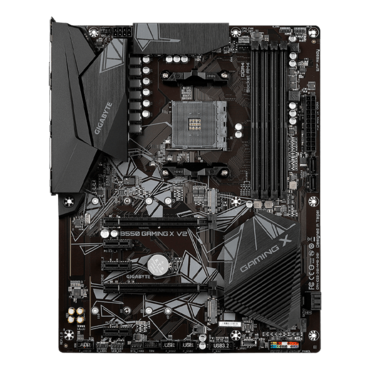

B550 Gaming X V2, AMD B550 Chipset, AM4, HDMI, ATX Motherboard
B550 Gaming X V2, AMD B550 Chipset, AM4, HDMI, ATX Motherboard
B550 Gaming X V2, AMD B550 Chipset, AM4, HDMI, ATX Motherboard
B550 Gaming X V2, AMD B550 Chipset, AM4, HDMI, ATX Motherboard

B550 Gaming X V2, AMD B550 Chipset, AM4, HDMI, ATX Motherboard

Quantity:
  • SKU: 13809506
  • Manufacturer: GIGABYTE
  • MPN: B550 GAMING X V2
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$133.37
Quantity:
B550 Gaming X V2, AMD B550 Chipset, AM4, HDMI, ATX Motherboard

GIGABYTE AMD B550 Gaming X V2. GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

  • Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • RGB FUSION 2.0 support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
CPU
  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset
  • AMD B550
Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • AMD Ryzen™ 5000 series processors:
    Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ Processors:
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
  • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots 1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  • 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
  • Supporting PCIe 3.0 x2 mode
3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
  • Supporting PCIe 3.0 x1 mode
Storage Interface 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
  • Support for RAID 0, RAID 1, and RAID 10
USB Chipset:
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 3 x USB 3.2 Gen 1 ports on the back panel
Chipset:
  • 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

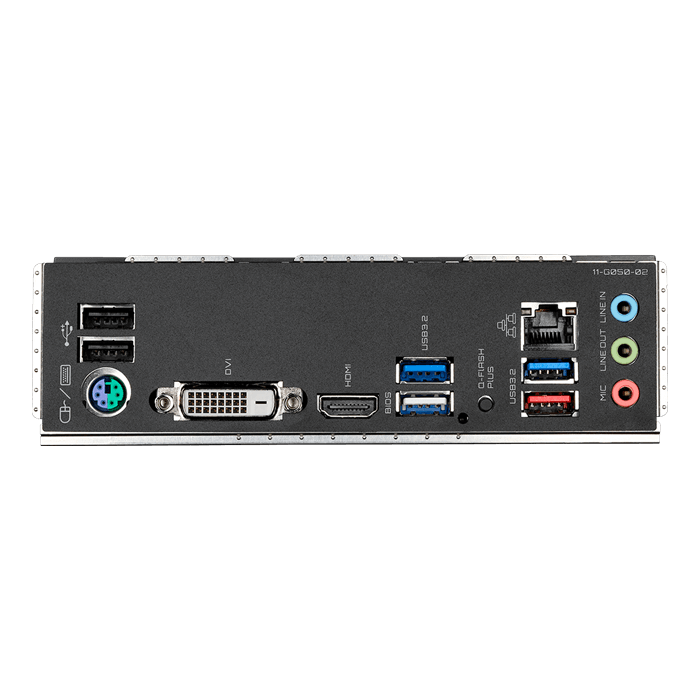

Back Panel Connectors
  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
Remark
  • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
