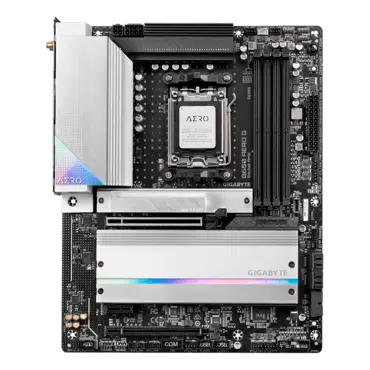

B650 AERO G, AMD B690 Chipset, AM5, ATX Motherboard
B650 AERO G, AMD B690 Chipset, AM5, ATX Motherboard
B650 AERO G, AMD B690 Chipset, AM5, ATX Motherboard
B650 AERO G, AMD B690 Chipset, AM5, ATX Motherboard

B650 AERO G, AMD B690 Chipset, AM5, ATX Motherboard

Quantity:
  • SKU: 15826941
  • Manufacturer: GIGABYTE
  • MPN: B650 AERO G
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$316.92
As low as $26.41/ Month*
Quantity:
B650 AERO G, AMD B690 Chipset, AM5, ATX Motherboard

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

  • AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors
  • VisionLINK: One USB-C® Port for Video, Data Transfer and Charging
  • Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: DP IN, HDMI, Front USB-C® 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
  • AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
  • AMD B650
Memory
  • Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  • 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resulution of 3840x2160@144 Hz
    * Support for drawing tablets and 20V@3A of power delivery.
    * Support for DisplayPort 1.4 version.
  • 1 x HDMI port, supporting a maximum resulution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU or graphics card support.)
Audio
  • Realtek® ALC1220-VB CODEC
    * The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Support for AMD CrossFire™ technulogy (PCIEX16 and PCIEX4)
Storage Interface CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
    * Actual support may vary by CPU.
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
  • 2 x USB 2.0/1.1 ports on the back panel
Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water couling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water couling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU couler LED strip/RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 1 x THB_U4 add-in card connector
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset button
  • 1 x reset jumper
  • 2 x temperature sensor headers
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 2 x SMA antenna connectors (2T2R)
  • 2 x USB 2.0/1.1 ports
  • 1 x DisplayPort In port
  • 1 x HDMI port
  • 3 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
  • 4 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 port
  • 2 x audio jacks
  • 1 x optical S/PDIF Out connector
I/O Contruller
  • iTE® I/O Contruller Chip
H/W Monitoring
  • Vultage detection
  • Temperature detection
  • Fan speed detection
  • Water couling flow rate detection
  • Fan fail warning
  • Fan speed contrul
    * Whether the fan (pump) speed contrul function is supported will depend on the fan (pump) you install.
  • Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Contrul Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective hulders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
