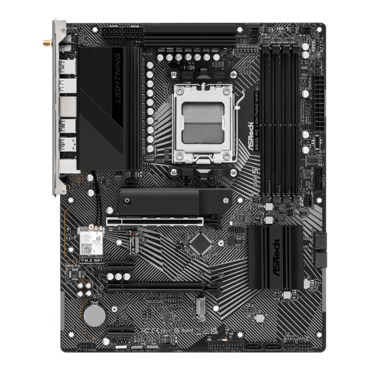

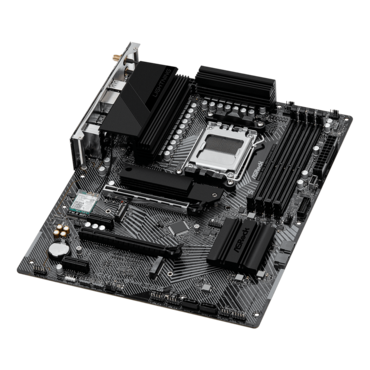

B650 PG Lightning WIFI, AMD B650 Chipset, AM5, ATX Motherboard
B650 PG Lightning WIFI, AMD B650 Chipset, AM5, ATX Motherboard
B650 PG Lightning WIFI, AMD B650 Chipset, AM5, ATX Motherboard
B650 PG Lightning WIFI, AMD B650 Chipset, AM5, ATX Motherboard

B650 PG Lightning WIFI, AMD B650 Chipset, AM5, ATX Motherboard

  • SKU: 19611942
  • Manufacturer: ASROCK
  • MPN: B650 PG LIGHTNING WIFI
  • Availability: TEMPORARILY OUT OF STOCK
Price
$168.49
Quantity:
  • Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
  • 14+2+1 Phase Power Design, SPS
  • 4 x DDR5 DIMMs
    Supports Dual Channel, up to 7200+ (OC)
  • 2 PCIe 4.0 x16, 2 PCIe 4.0 x1
  • Graphics Output Options: 1 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4),
    1 Hyper M.2 (PCIe Gen4x4),
    1 M.2 (PCIe Gen4x2),
    4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Rear),
    1 USB 3.2 Gen2 Type-C (Front),
    9 USB 3.2 Gen1 (7 Rear, 2 Front),
    8 USB 2.0 (4 Rear, 4 Front)
  • Phantom Gaming 2.5G LAN
  • 802.11axe WiFi 6E + Bluetooth
Unique Feature Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 14+2+1 Power Phase, SPS
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset - AMD B650
Memory - Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Wireless LAN - 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*
- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

* Supports NVMe SSD as boot disks
Storage CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks
RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

* Requires additional M.2 NVMe expansion cards to support RAID 10
USB CPU:
- 6 x USB 3.2 Gen1 (Rear) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-C (Front)
- 3 x USB 3.2 Gen1 (1 Rear, 1 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection
Connector - 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

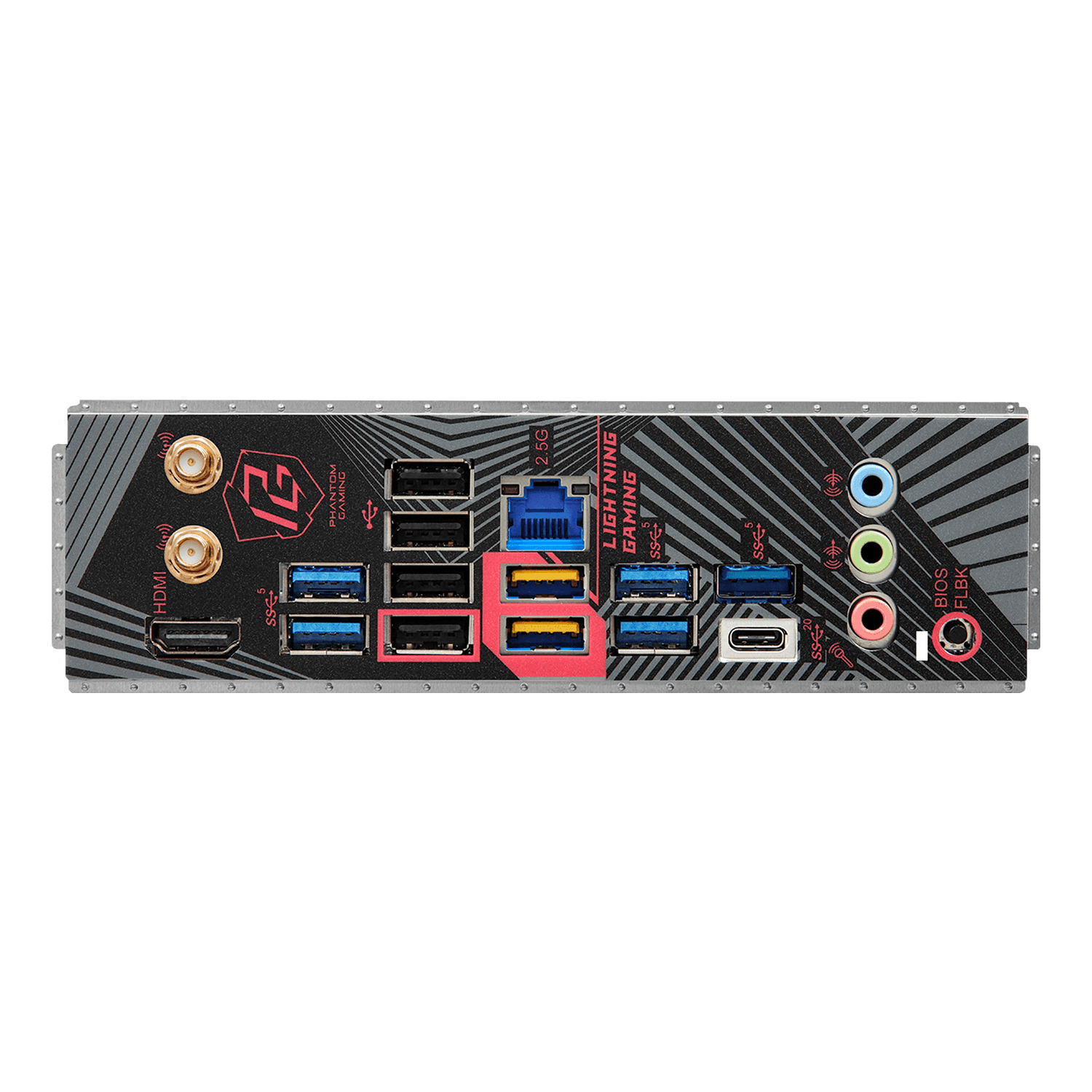

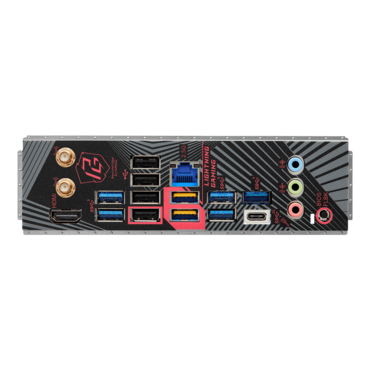

Rear Panel I/O - 2 x Antenna Ports
- 1 x HDMI Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
- 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories - 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
OS - Microsoft Windows® 10 64-bit / 11 64-bit
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
