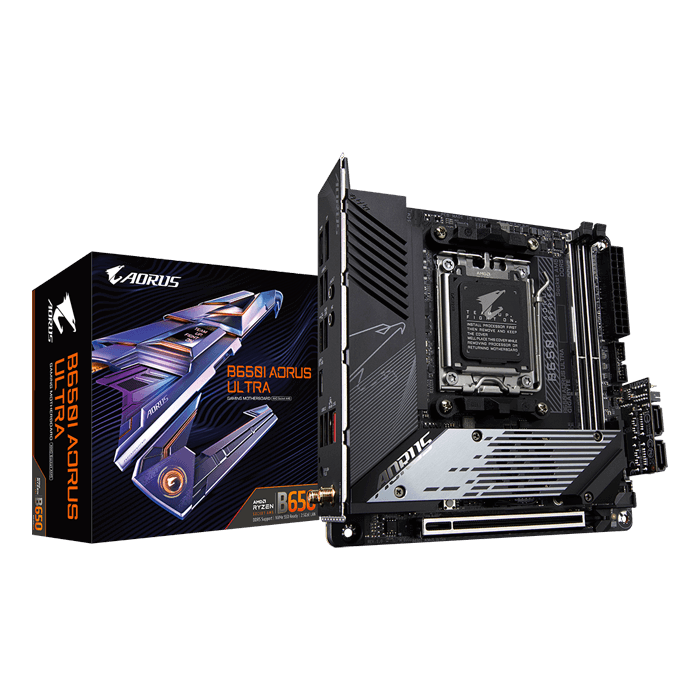

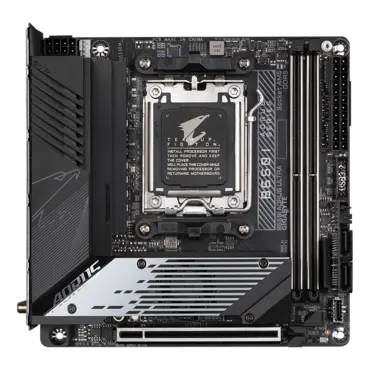

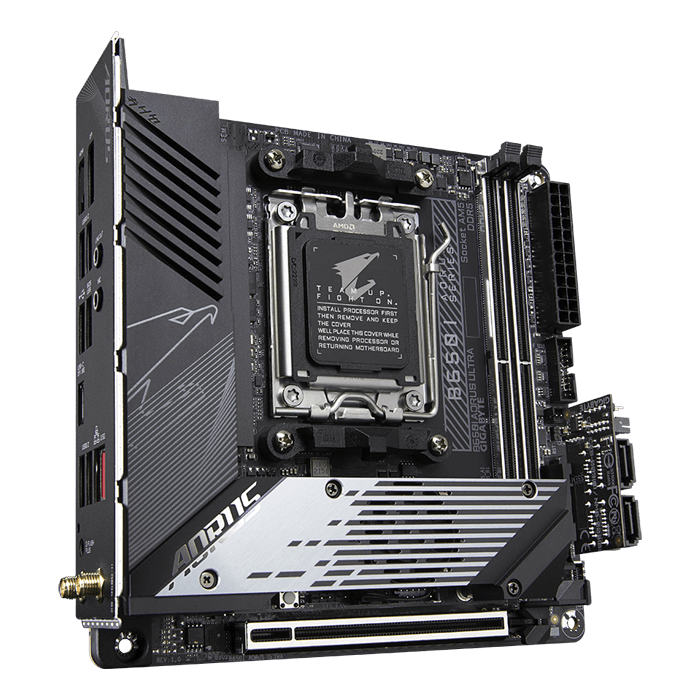

B650I AORUS ULTRA, AMD B650 Chipset, AM5, Mini-ITX Motherboard
B650I AORUS ULTRA, AMD B650 Chipset, AM5, Mini-ITX Motherboard
B650I AORUS ULTRA, AMD B650 Chipset, AM5, Mini-ITX Motherboard
B650I AORUS ULTRA, AMD B650 Chipset, AM5, Mini-ITX Motherboard
B650I AORUS ULTRA, AMD B650 Chipset, AM5, Mini-ITX Motherboard

B650I AORUS ULTRA, AMD B650 Chipset, AM5, Mini-ITX Motherboard

Quantity:
  • SKU: 15157018
  • Manufacturer: GIGABYTE
  • MPN: B650IAORUSULTRA
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$256.43
Quantity:
B650I AORUS ULTRA, AMD B650 Chipset, AM5, Mini-ITX Motherboard

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

  • AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance:Direct 8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Fully Covered Heatpipe & M.2 Thermal Guard III with Active Cooling:To Ensure 2280 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Hi-Fi Audio with DTS:X® Ultra:ALC4080 CODEC
  • Fast Networks:Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:DP, HDMI, Rear USB-C® with DP Alt Mode, Front USB-C® 20Gb/s
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
  1. AMD B650
Memory
  1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
  2. 1 x USB Type-C ®  port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek ®  ALC4080 CODEC
  2. High Definition Audio
  3. 2-channel
LAN
  1. Intel ®  2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Interface CPU:
  1. 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
    * Actual support may vary by CPU.
  2. 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  2. 4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU:
  1. 1 x USB Type-C ®  port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG
Chipset:
  1. 1 x USB Type-C ®  port with USB 3.2 Gen 2x2 support, available through the internal USB header
  2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x CPU fan/water cooling pump header
  5. 1 x system fan header (SYS_FAN1 (Note 1) )
  6. 1 x addressable LED strip header (Note 2)
  7. 1 x RGB LED strip header (Note 1)
  8. 3 x M.2 Socket 3 connectors (M2B_CPU (Note 2) /M2A_CPU (Note 3) /M2C_SB (Note 4) )
  9. 4 x SATA 6Gb/s connectors (Note 1)
  10. 1 x front panel header (Note 1)
  11. 1 x front panel audio header (routed from the adapter card on the rear panel)
  12. 1 x USB Type-C ®  header, with USB 3.2 Gen 2x2 support
  13. 1 x USB 3.2 Gen 1 header
  14. 1 x USB 2.0/1.1 header (Note 2)
  15. 1 x reset button (Note 2)
  16. 1 x reset jumper
  17. 1 x power switch jumper
  18. 1 x Clear CMOS jumper
(Note 1) The connector is on the front of GC-B650I FRONT CARD.
(Note 2) The connector is on the front of GC-B650I BTB PLUG.
(Note 3) The connector is on the back of GC-B650I BTB PLUG.
(Note 4) The connector is on the back of the motherboard.

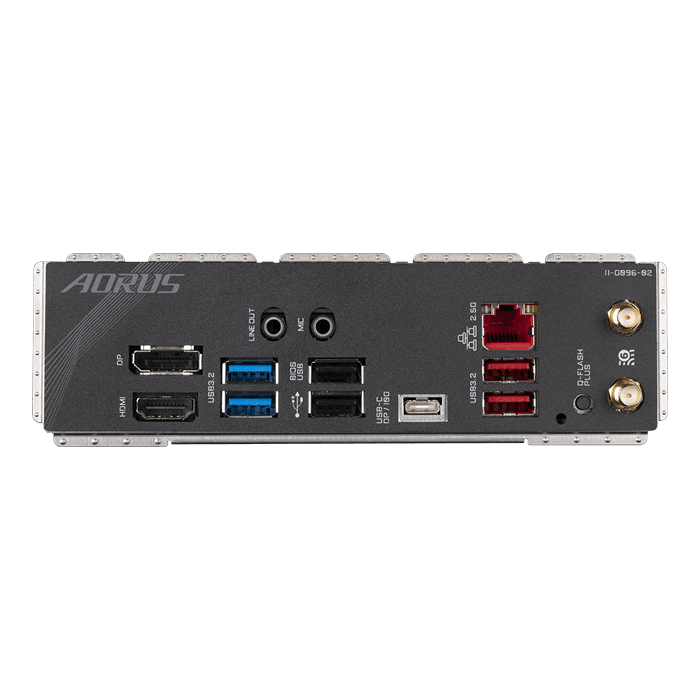

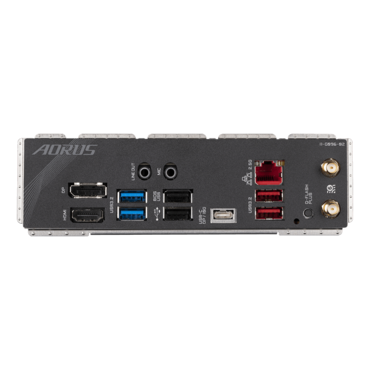

Back Panel Connectors
  1. 1 x DisplayPort
  2. 1 x HDMI port
  3. 1 x USB Type-C ®  port (DisplayPort), with USB 3.2 Gen 2 support
  4. 2 x USB 3.2 Gen 2 Type-A ports (red)
  5. 2 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 2 x SMA antenna connectors (2T2R)
  9. 1 x Q-Flash Plus button
  10. 2 x audio jacks
I/O Controller
  1. iTE ®  I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
Bundled Software
  1. Norton ®  Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
