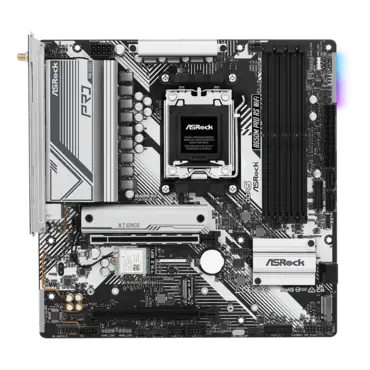

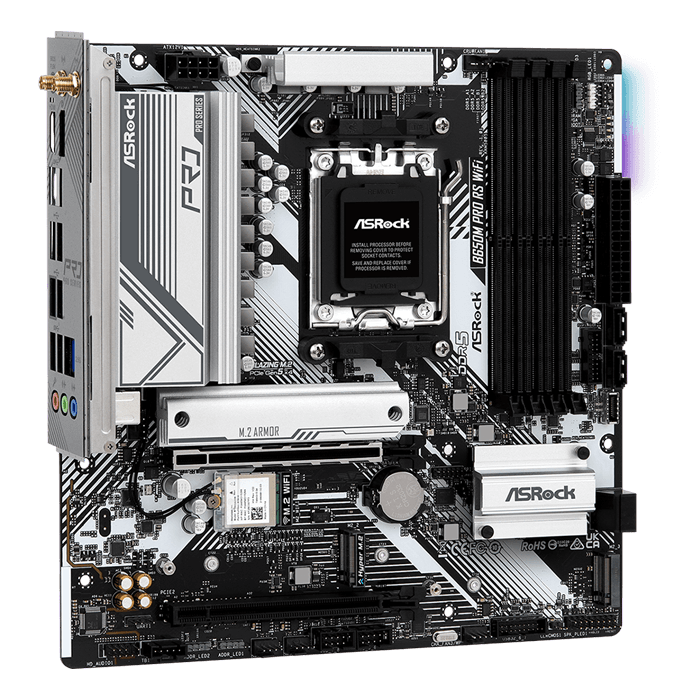

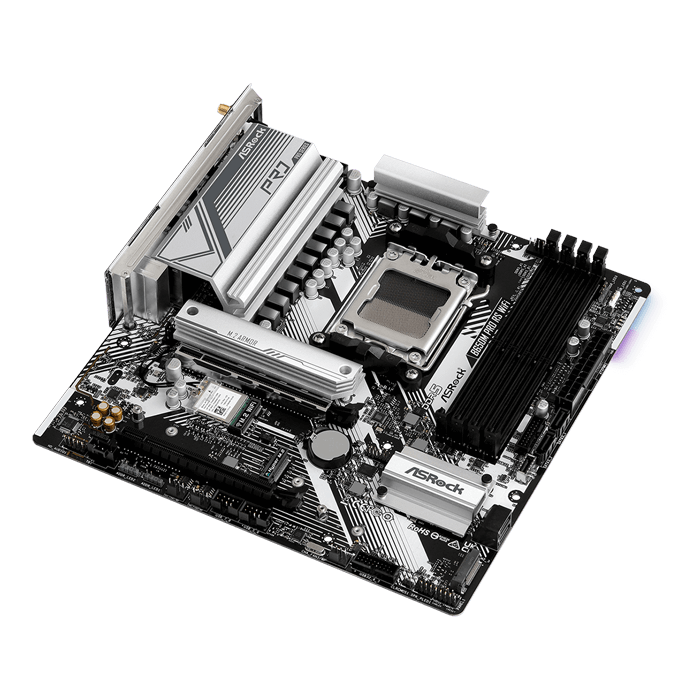

B650M Pro RS WiFi, AMD B650 Chipset, M5, microATX Motherboard
Quantity:
- SKU: 16135320
- Manufacturer: ASROCK
- MPN: B650M PRO RS WIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$177.08
B650M Pro RS WiFi, AMD B650 Chipset, M5, microATX Motherboard
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 6000+ MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
1 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen4 x2) - 1 USB 3.2 Gen2 Type A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - Dragon 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
| Unique Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | - AMD B650 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List on ASRock's website for more information. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection |
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |

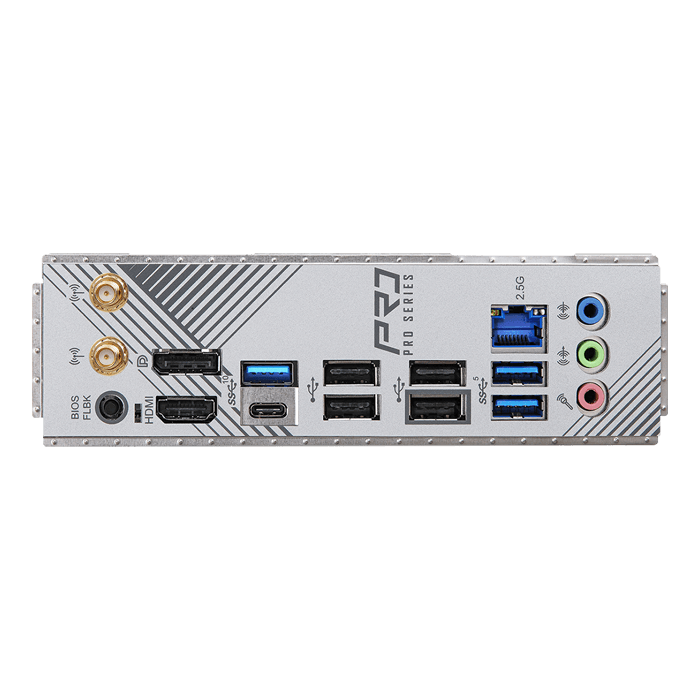

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software |

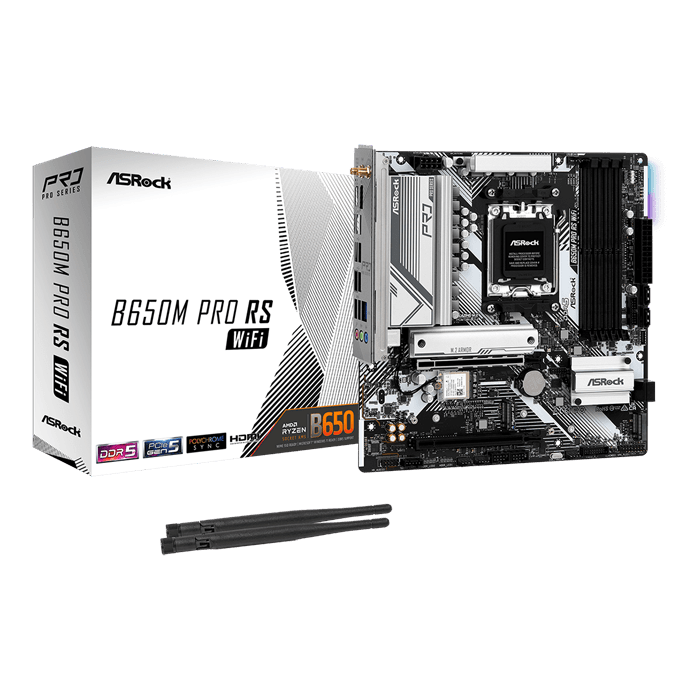

| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
