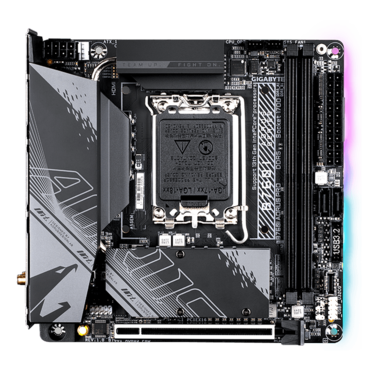

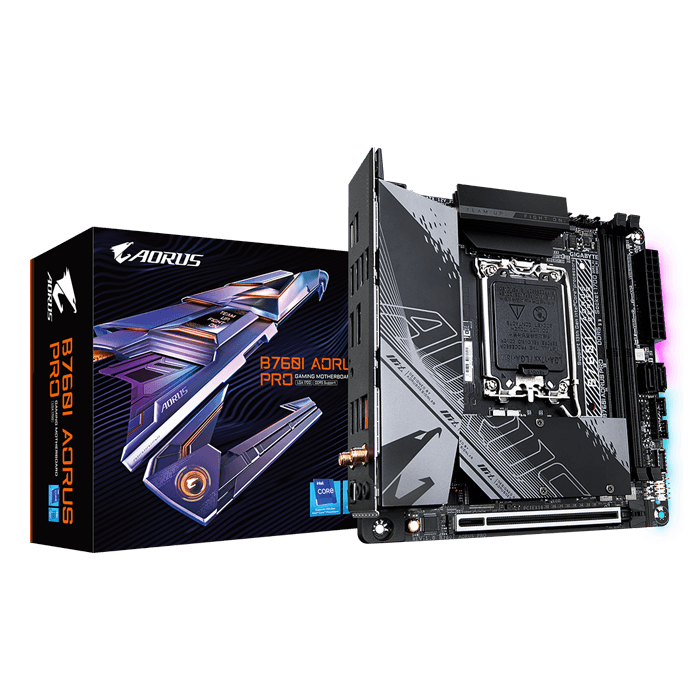

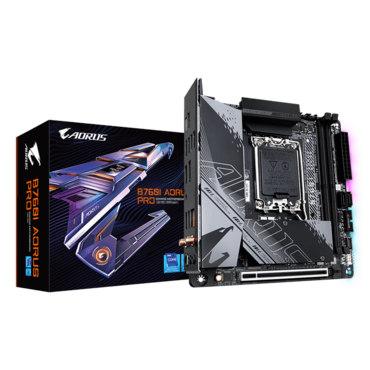

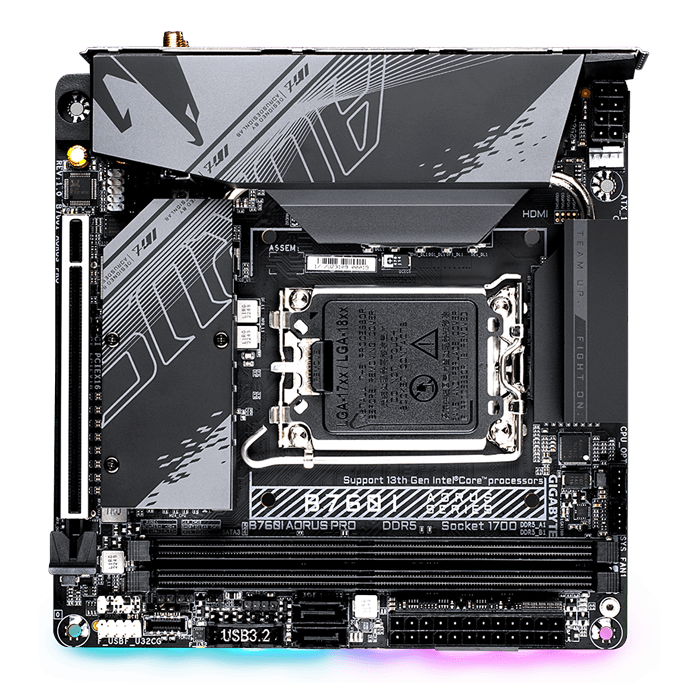

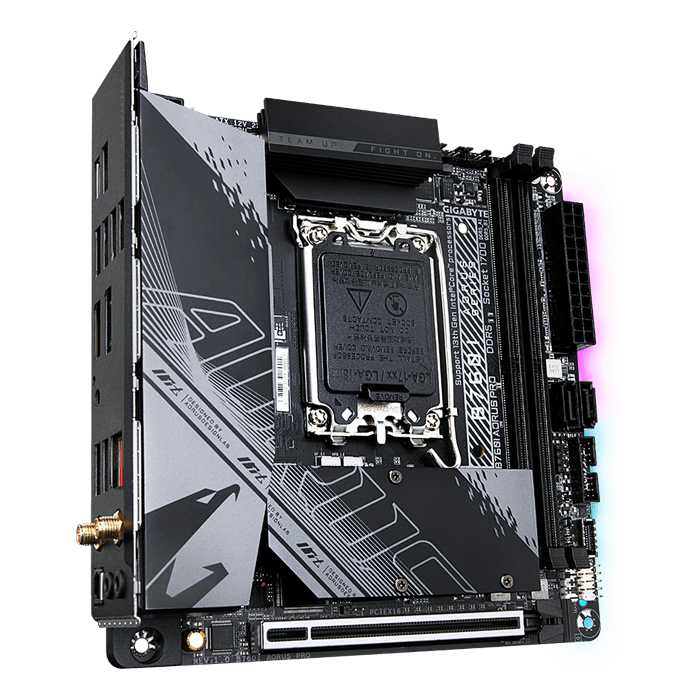

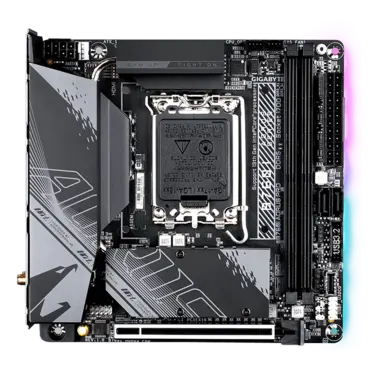

B760I AORUS PRO, Intel® B760 Chipset, LGA 1700, Mini-ITX Motherboard
B760I AORUS PRO, Intel® B760 Chipset, LGA 1700, Mini-ITX Motherboard
B760I AORUS PRO, Intel® B760 Chipset, LGA 1700, Mini-ITX Motherboard
B760I AORUS PRO, Intel® B760 Chipset, LGA 1700, Mini-ITX Motherboard
B760I AORUS PRO, Intel® B760 Chipset, LGA 1700, Mini-ITX Motherboard

B760I AORUS PRO, Intel® B760 Chipset, LGA 1700, Mini-ITX Motherboard

  • SKU: 16362658
  • Manufacturer: GIGABYTE
  • MPN: B760IAORUSPRO
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$233.79
Quantity:
B760I AORUS PRO, Intel® B760 Chipset, LGA 1700, Mini-ITX Motherboard

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Direct 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5:2*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design:Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
  • Fast Networks:Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
  • RGB FUSION:Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel ®  Core™, Pentium ®  Gold and Celeron ®  Processors*
  2. L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
  1. Intel ®  B760 Express Chipset
Memory
  1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel ®  HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek ®  Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
LAN
  1. Intel ®  2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel ®  Wi-Fi 6E AX211 (For PCB rev. 1.0)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek ®  Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Interface CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices
USB Chipset:
  1. 1 x USB Type-C ®  port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB Type-C ®  port with USB 3.2 Gen 1 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  5. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 3.2 Gen 1 Hub:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x CPU fan/water cooling pump header
  5. 1 x system fan header
  6. 1 x addressable LED strip header
  7. 1 x RGB LED strip header
  8. 2 x M.2 Socket 3 connectors
  9. 2 x SATA 6Gb/s connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x speaker header
  13. 1 x USB Type-C ®  header, with USB 3.2 Gen 1 support
  14. 1 x USB 3.2 Gen 1 header
  15. 1 x USB 2.0/1.1 header
  16. 1 x reset jumper
  17. 1 x Clear CMOS jumper
  18. 1 x chassis intrusion header

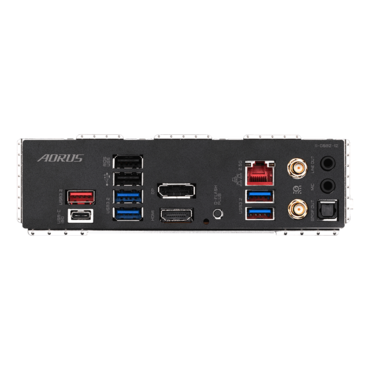

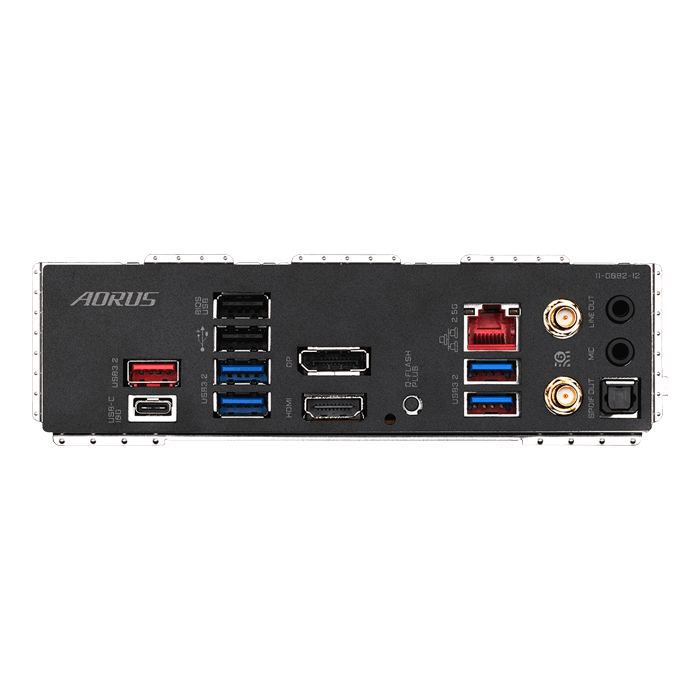

Back Panel Connectors
  1. 1 x USB Type-C ®  port, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red)
  3. 4 x USB 3.2 Gen 1 ports
  4. 2 x USB 2.0/1.1 ports
  5. 1 x DisplayPort
  6. 1 x HDMI port
  7. 1 x Q-Flash Plus button
  8. 1 x RJ-45 port
  9. 2 x SMA antenna connectors (2T2R)
  10. 1 x optical S/PDIF Out connector
  11. 2 x audio jacks
I/O Controller
  1. iTE ®  I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
Bundled Software
  1. Norton ®  Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
